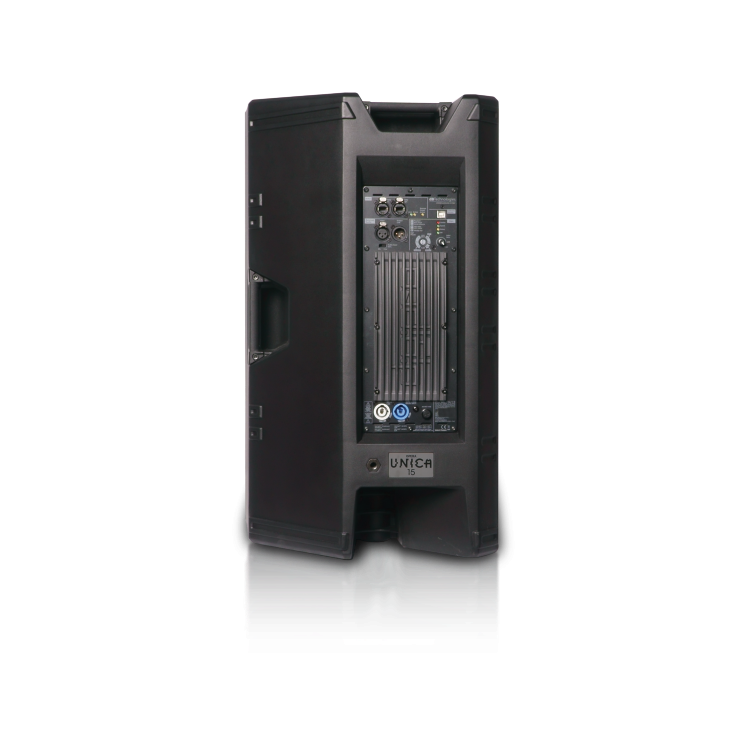

dB Technologies OPERA UNICA 15

Technical Data

Speaker Type

2-Way Active Speaker

Acoustical data

Usable Bandwidth [-10dB]

57 - 20.000 Hz

Frequency Response [- 6dB]

61 - 20.000 Hz

Max SPL

133 dB

HF

1" Exit, 1.75 v.c.

Horizontal Directivity

100° (85° up/120° down)

Vertical Directivity

85° (+ 25°/-60°)

Horn

Asymmetrical Horn

LF

15", 3" v.c.

Amplifier

Amp Technology

Class D DigiproG3

RMS Power

900 W

Peak Power

1800 W

Processor

Controller

DSP 56 bit

AD/DA Converter

24 bit/48 KHz

Controls

Rotary Encoder (8 Presets)
1x Input Sensitivity
1x Power ON led
1x Signal led
1x Limiter Led
1x Status Led

CrossOver Frequency

1600 Hz

Limiter

Peak, RMS, Thermal

Advanced DSP Functions

Linear Phase FIR Filters

Delay Option

58.6 ms max (via RD Net)

Input

Signal Input

1x XLR Female
1x USB (data service)

Signal Output

1x XLR Male

Mechanics

Housing

Polyporpylene PP

Handles

1 on left Side, 1 on Top

Rigging Points

2XM10 on Top + 1x M10 on Back

Pole Mount

D36 mm

Angles up

Monitor use 45°

Width

420 mm (16.54 in)

Height

722 mm (28.43 in)

Depth

419 mm (16.50 in)

Weight

18.2 kg (40.12 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
