dB Technologies OPERA 10

Technical Data

Speaker Type

2-Way Active Speaker

Acoustical data

Frequency Response [-10dB]

58 - 20.000 Hz

Frequency Response [- 3dB]

70 - 19.600 Hz

Max SPL

128 dB

HF

1" Exit, 1.4 v.c.

Type HF

Compression driver

Horizontal Directivity

100° (85° up/120° down)

Vertical Directivity

85° (+ 25°/-60°)

Horn

Asymmetrical Horn

LF

10", 2" v.c.

Amplifier

Amp Technology

Amp SMPS Power supply dual range

Amp Class

Class D

RMS Power

600 W

Peak Power

1200 W

Processor

Controller

DSP 56 bit

AD/DA Converter

24 bit/48 KHz

System Presets

Rotary Encoder (8 Presets)

CrossOver Frequency

2000 Hz

Limiter

Peak, RMS, Thermal

Advanced DSP Functions

Linear Phase FIR Filters

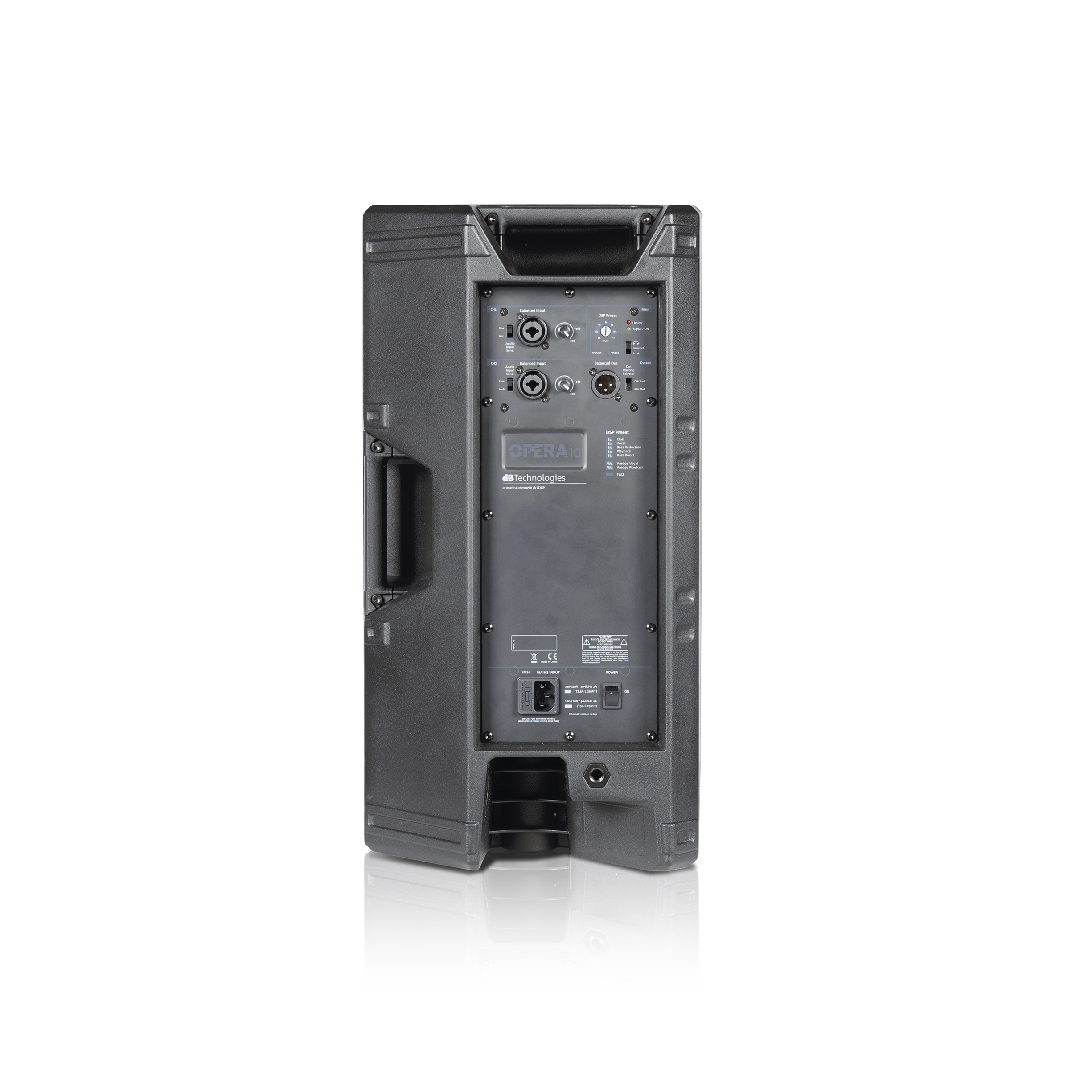

Input

Signal Input

1xCombo (XLR/Jack 6.3 mm) MIC/Line

1xCombo (XLR/Jack 6.3 mm) MIC/Inst

Signal Output

1x XLR Male (CH1 Link/Mix OUT)
Selectable

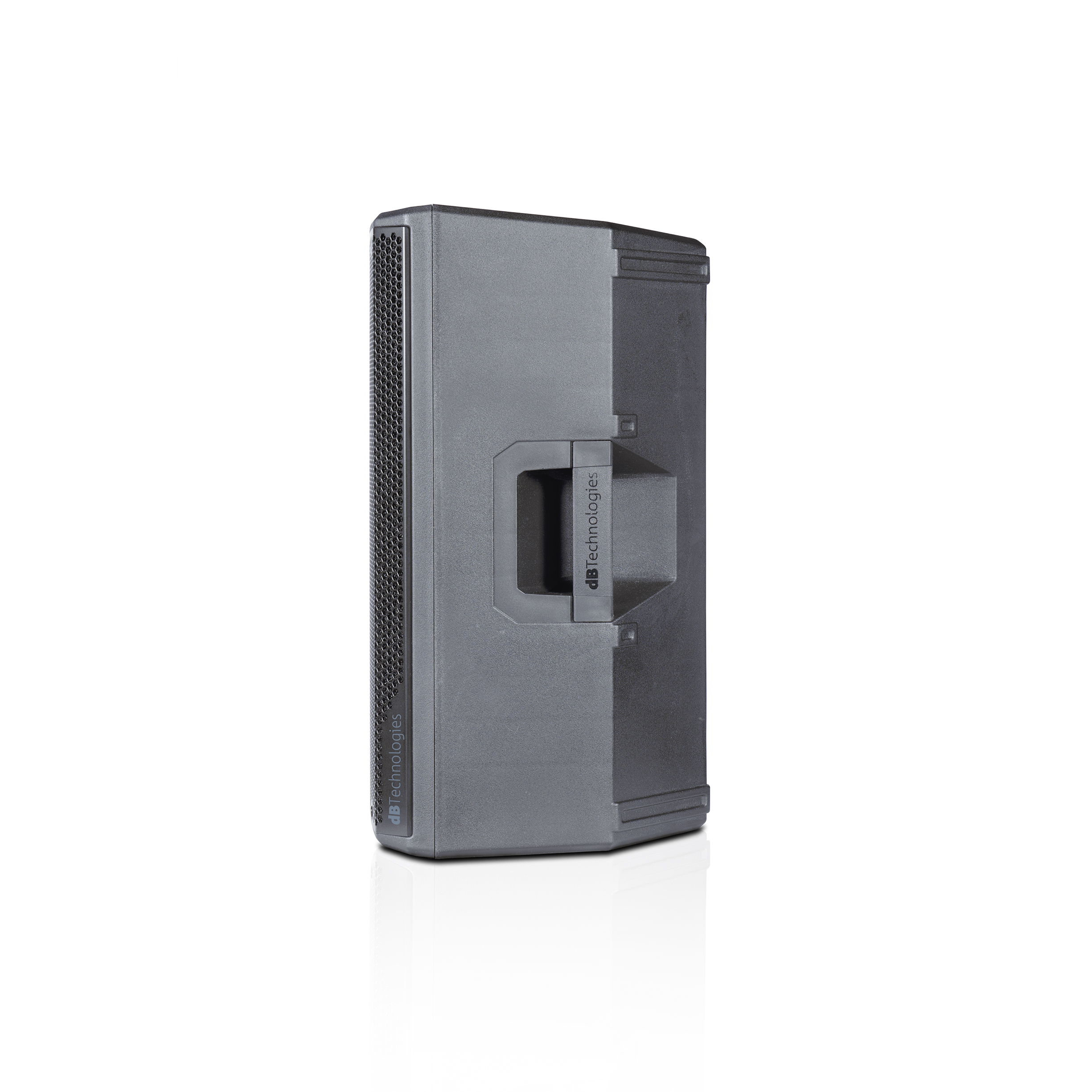

Mechanics

Housing

Polyproylene

Grille

Full grille

Handles

1 on left Side, 1 on Top

Rigging Points

2XM10 on Top + 1x M10 on Back

Pole Mount

D36 mm

Angles up

Monitor use 45°

Width

300 mm (11.81 in)

Height

552 mm (21.73 in)

Depth

301 mm (11.85 in)

Weight

12.3 kg (27.12 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
