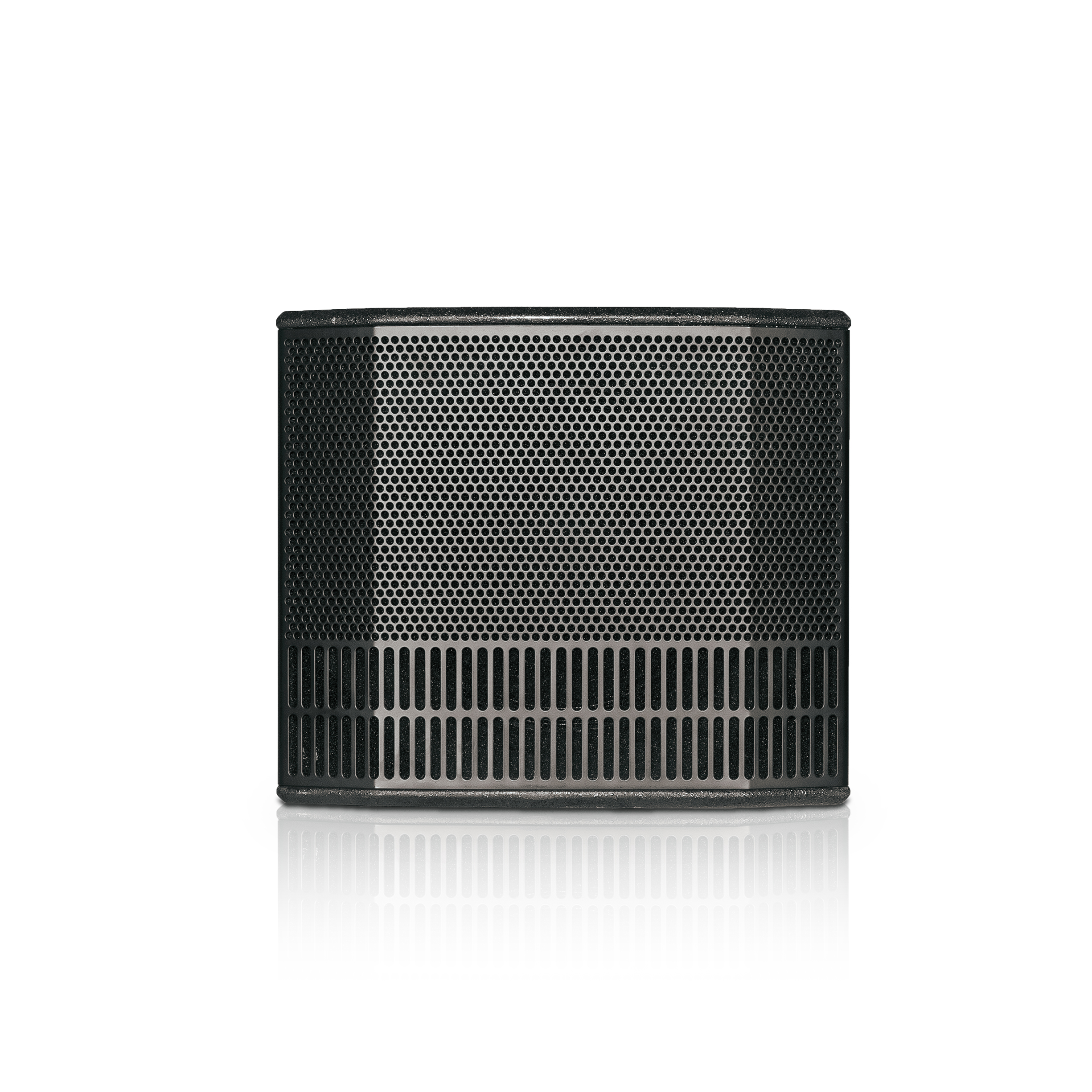

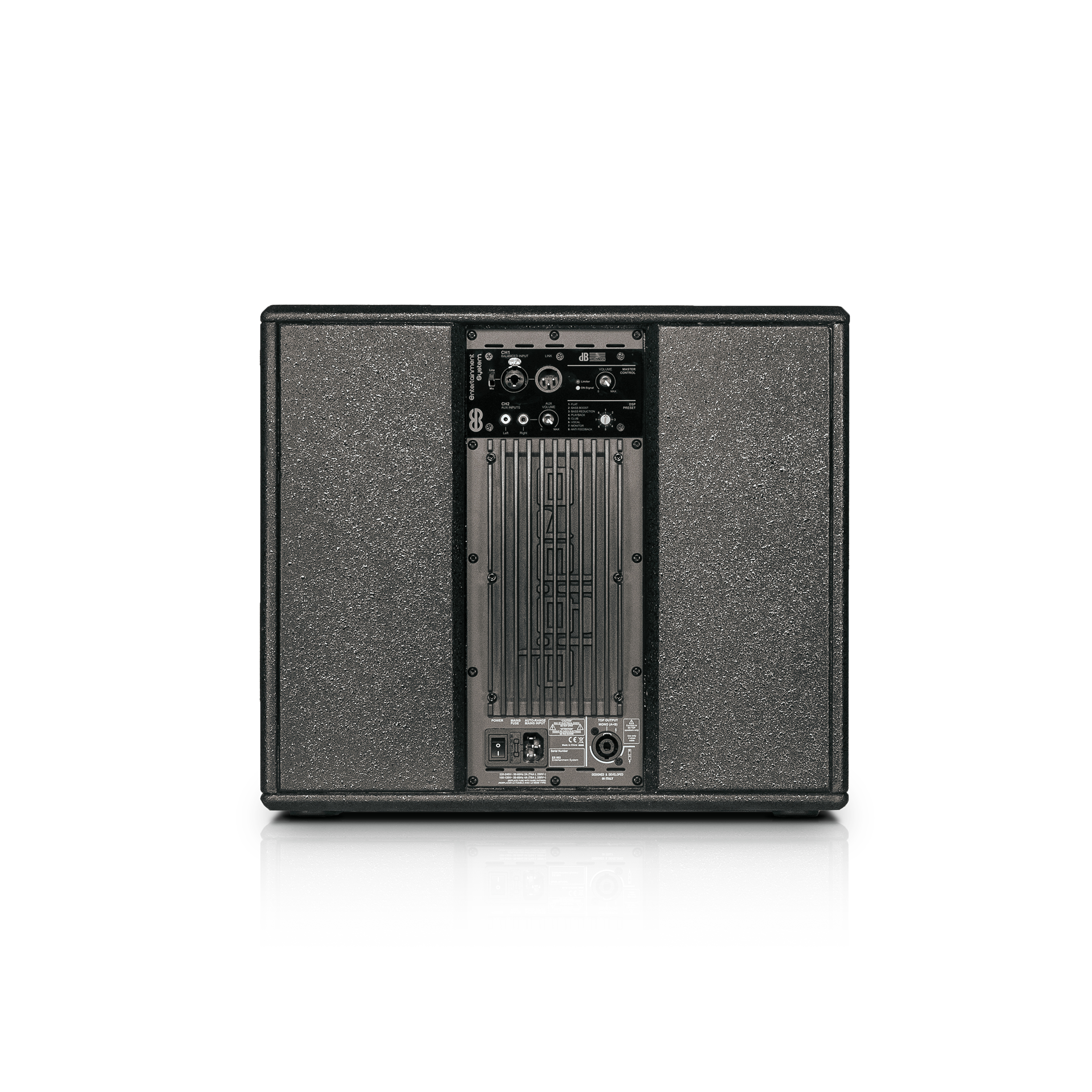

dB Technologies ES802 - Column PA system
Inclusive of all GST
Acoustical data
Frequency Response [-10dB]
37-15.000 Hz
Max SPL
124 dB
MF - HF
8x 3"
Type MF - HF
Neodymium
LF
12"
Directivity
95x65°
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class-D
Power Amp Peak
1200 W
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
Factory presets
Limiter
Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF
206 Hz
Input
Mic/Instrument Channel
1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
Link Output
1x XLR balanced output
Mechanics
Housing (Subwoofer)
15mm Black Painted Plywood
Housing (Tops)
Polypropylene PP
Handles
2x lateral side (Subwoofer)
Width (Top)
95 mm (3.74 in)
Height (Top)
360 mm (13.98 in)
Depth (Top)
137 mm (5.39 in)
Width (Subwoofer)
465 mm (18.3 in)
Height (Subwoofer)
400 mm (15.7 in)
Depth (Subwoofer)
430 mm (16.9 in)
Weight (Top)
1.9Kg – 4.19lbs
Weight (Subwoofer)
16.4Kg – 36.16lbs
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
