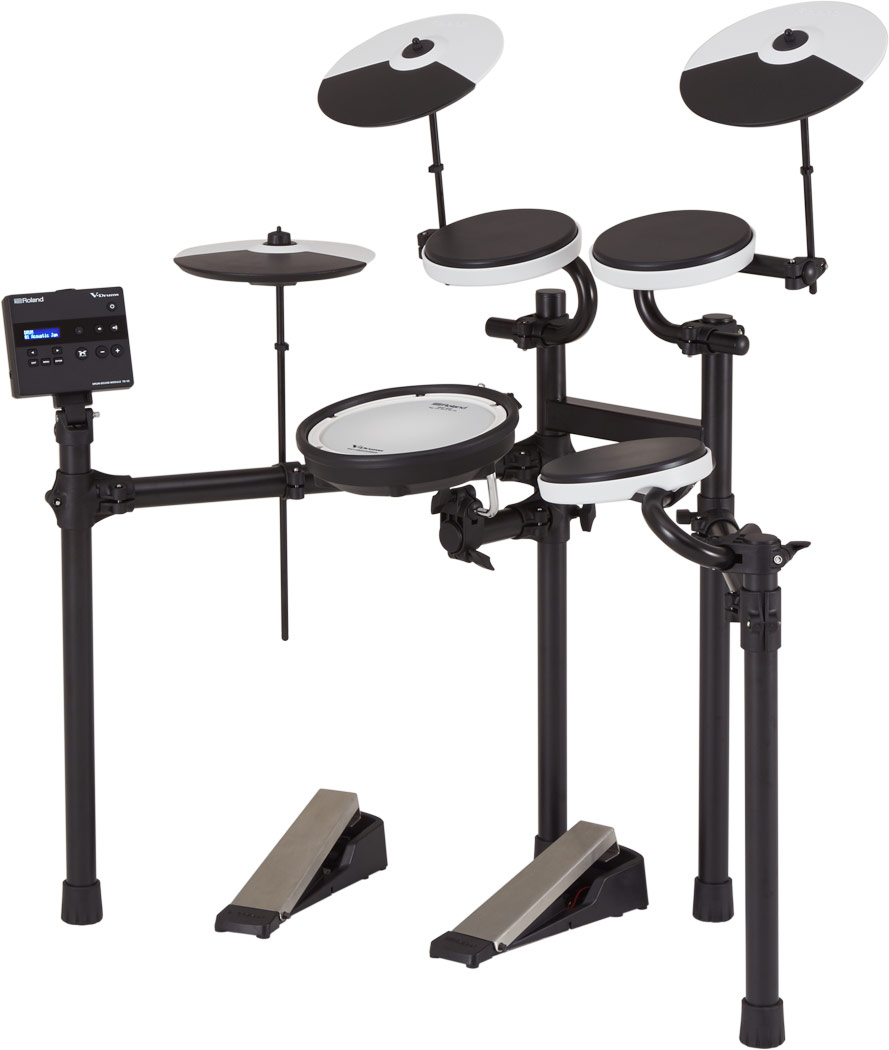

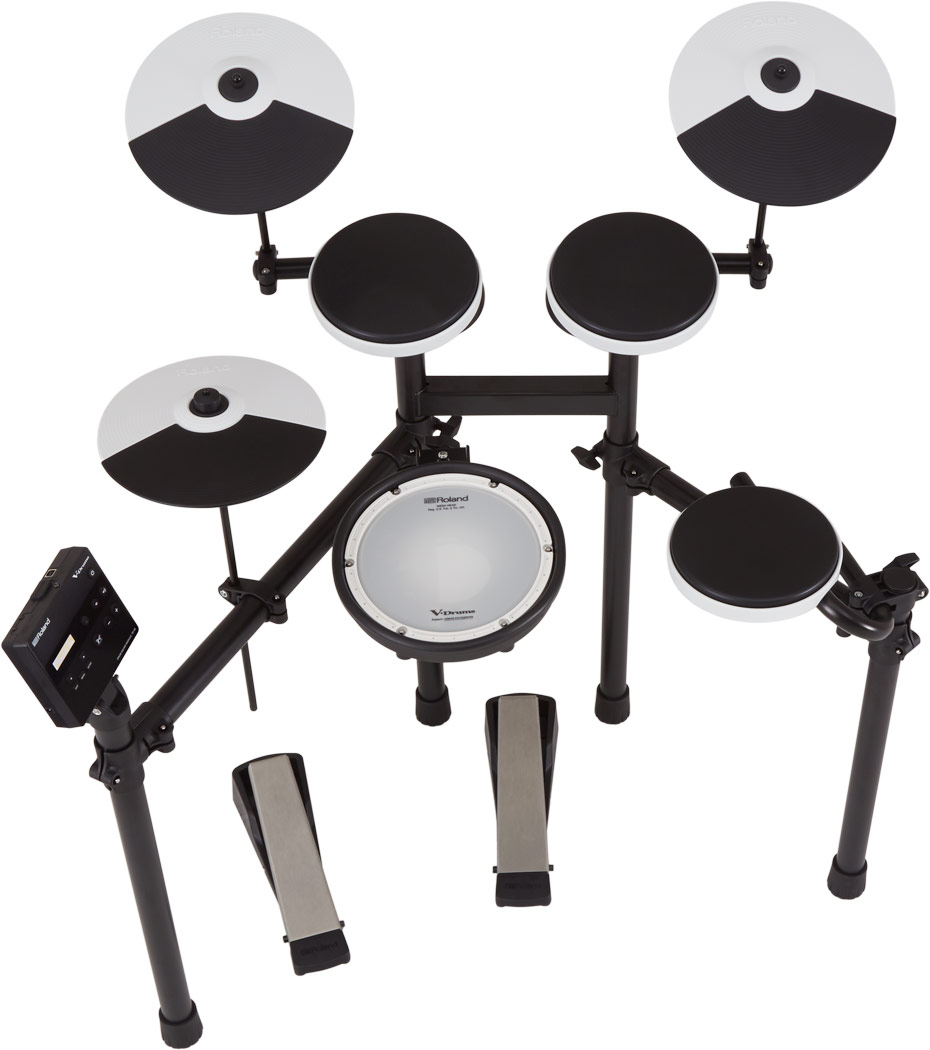

Roland TD-02KV V-Drum

SPECIFICATIONS

Kit Configuration (*1)

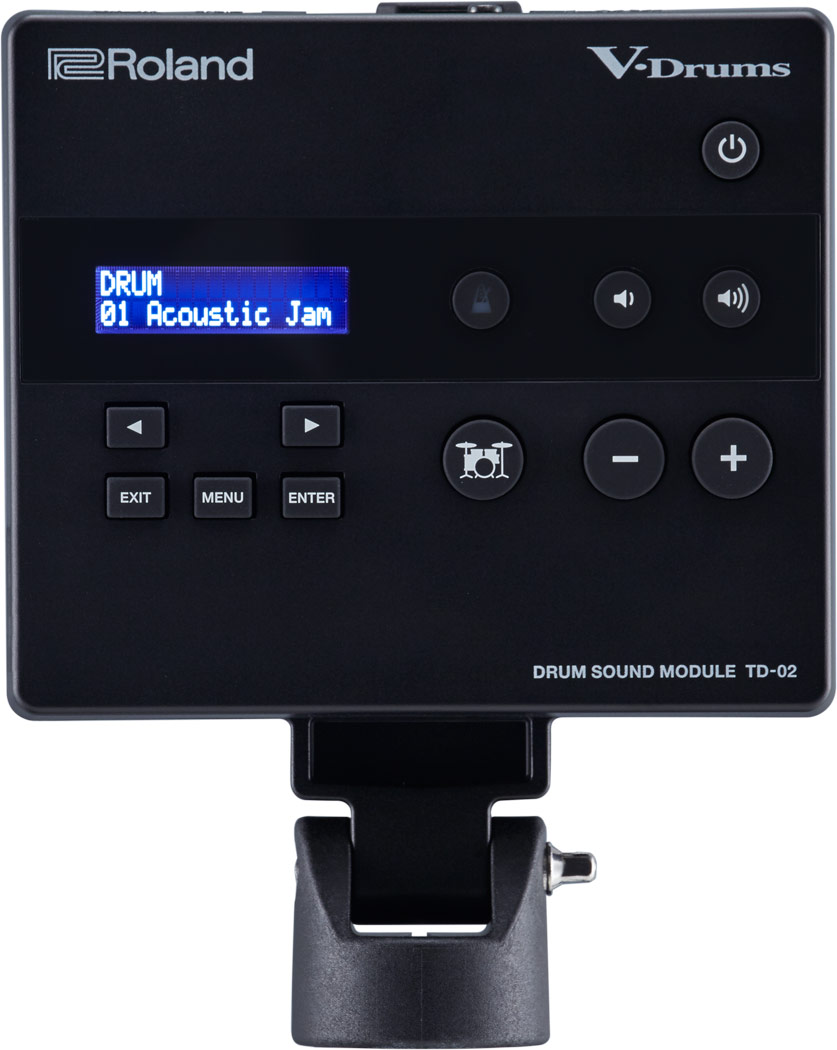

Drum sound module: TD-02 x 1
Snare: PDX-8 x 1
Tom: PD-4 x 3
Hi-Hat: CY-5 x 1
Hi-Hat control pedal: FD-1 x 1
Crash: CY-5 x 1
Ride: CY-5 x 1
Kick: KT-1 x 1
Drum Stand: MDS-LITE x 1

Drum Kits

16

Coach Functions (5 modes)

Time Check (easy)
Time Check (hard)
Quiet Count
Auto Up/Down
Change-Up

Metronome

Tempo (20--260)
Rhythm Type (5 types)
Sounds (15 types)

Display

16 Characters x 2 Lines LCD (with backlight)

Connectors

OUTPUT/PHONES Jack: Stereo Miniature Phone Type
MIX IN Jack: Stereo Miniature Phone Type
USB COMPUTER Port: USB B Type
TRIGGER INPUT Connector: DB-25 Type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Crash 2, Ride, Hi-Hat Control)
Bluetooth ADAPTOR SLOT: Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)

USB COMPUTER

Speed: Full-speed USB (Generic), Hi-Speed USB (Vendor)
Driver Mode: Generic, Vendor
Protocol: USB MIDI, USB Audio *2

USB Audio

Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 Channels
Playback: 2 Channels

Power Supply

AC Adaptor (DC 12 V)

Current Draw

200 mA

Accessories

Setup Guide
Leaflet "USING THE UNIT SAFELY"
AC Adaptor
Special Connection Cable
Drum Key

Options (sold separately)

Additional Crash Cymbal (Crash 2): OP-TD1C
Kick: KD Series
Personal Drum Monitor: PM series
V-Drums Accessory Package: DAP-2X
V-Drums Mat: TDM Series
Noise Eater: NE Series
Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)
