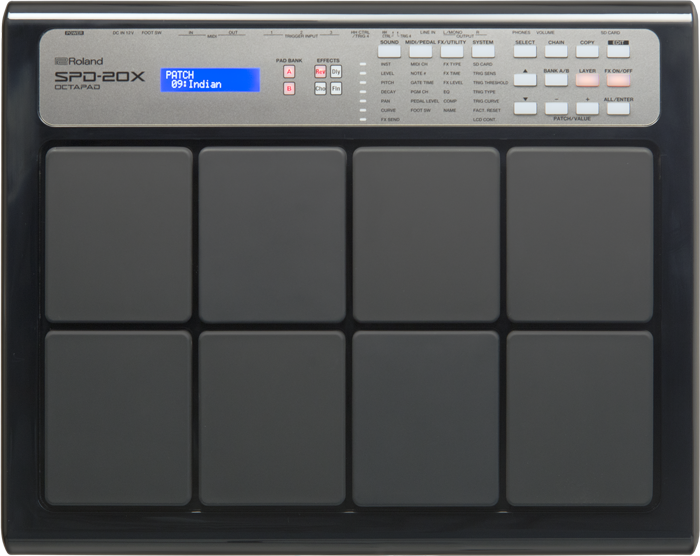

Roland SPD-20X Octapad

SELF-CONTAINED PERCUSSION PAD FOR LIVE PERFORMANCE

 The SPD-20X features all the original sounds from its predecessor, the still-popular SPD-20, plus a large selection of all-new sounds for Indian percussion styles. The eight cushioned rubber pads provide great feel and accurate triggering, and four trigger inputs enable easy expansion with external pedals and pads as needed. From small groups to large-scale ensembles, the travel-friendly OCTAPAD SPD-20X is a ready companion wherever you want to play.

SPECIFICATIONS:

Pads

Built-in Pads: 8
* Four external trigger inputs are provided, allowing you to connect Pads.

Maximum Polyphony

128 voices

Instruments - 745

Kits - 99

Kit Chain - 8 chains

Sound Parameters - Instrument

                 Level
                   Pitch
                  Decay
                  Curve
                 FX Send
                    Pan

Effect Type - Reverb
                         Delay
                       Chorus
                      Flanger

Master Effects - EQ
                           Comp

Display - 16 characters, 2 lines (backlit LCD)

External Memory - SD Card (SDHC supported)

Connectors

PHONES jack: Stereo miniature phone type
OUTPUT (L/MONO, R) jakcs: 1/4-inch phone type
LINE IN jack: Stereo miniature phone type
TRIGGER INPUT jacks (Dual) x 3: 1/4-inch phone type
HH CTRL/TRIGGER INPUT (Dual) jack: 1/4-inch phone type
FOOT SW jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors

Power Supply

AC Adaptor

Current Draw

1,000 mA

Dimensions

450 (W) x 361 (D) x 80 (H) mm
17-3/4 (W) x 14-1/4 (D) x 3-3/16 (H) inches

Weight (excluding AC adaptor)

3.3 kg
7 lbs 5 oz

Accessories

Owner's Manual
AC Adaptor
Screw (M5 x 12 mm) x 4

Options (sold separately)

Pads (PD-8, CY-5, CY-8)
Kick Trigger Unit (KD-7)
Kick Pad (KD-9)
Hi-Hat Control Pedal (FD-8)
Footswitch (BOSS FS-5U)
Footswitch Cable (PCS-31L)
Pedal Switch (DP-2)
Drum Stand (PDS-10)
