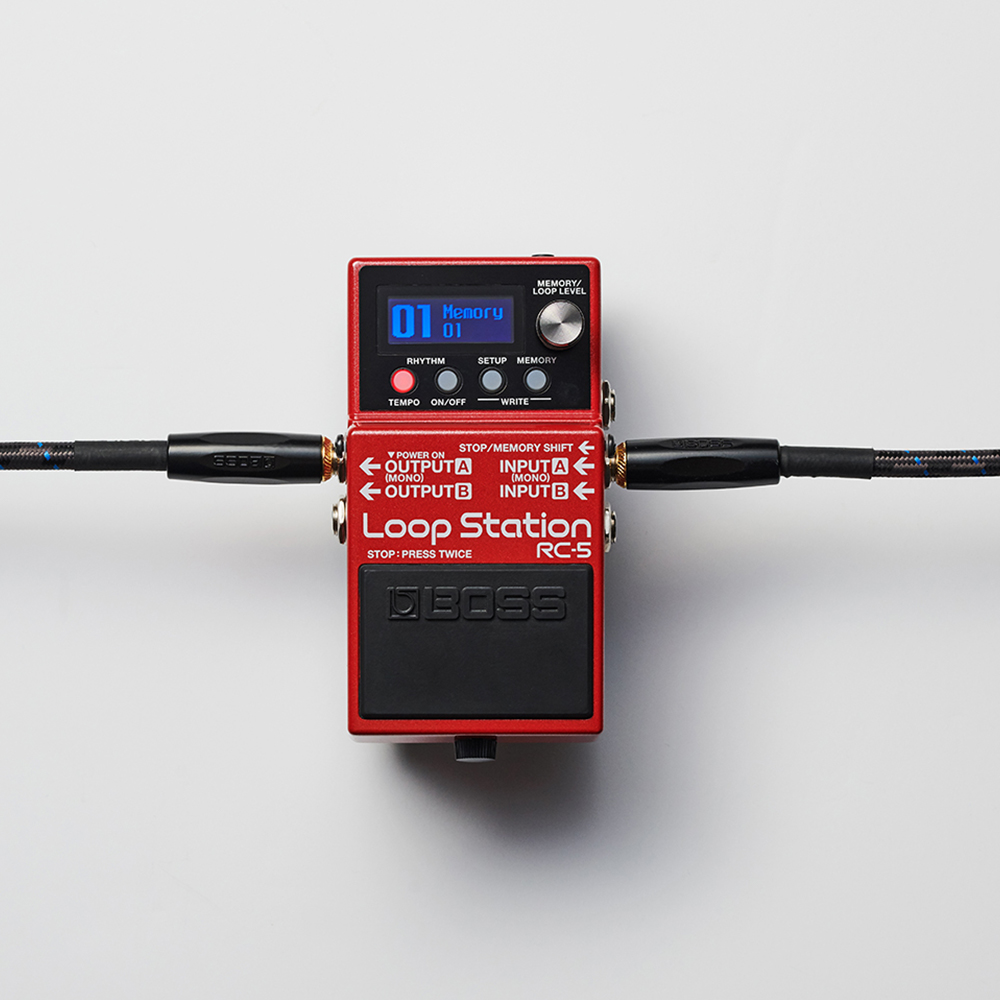

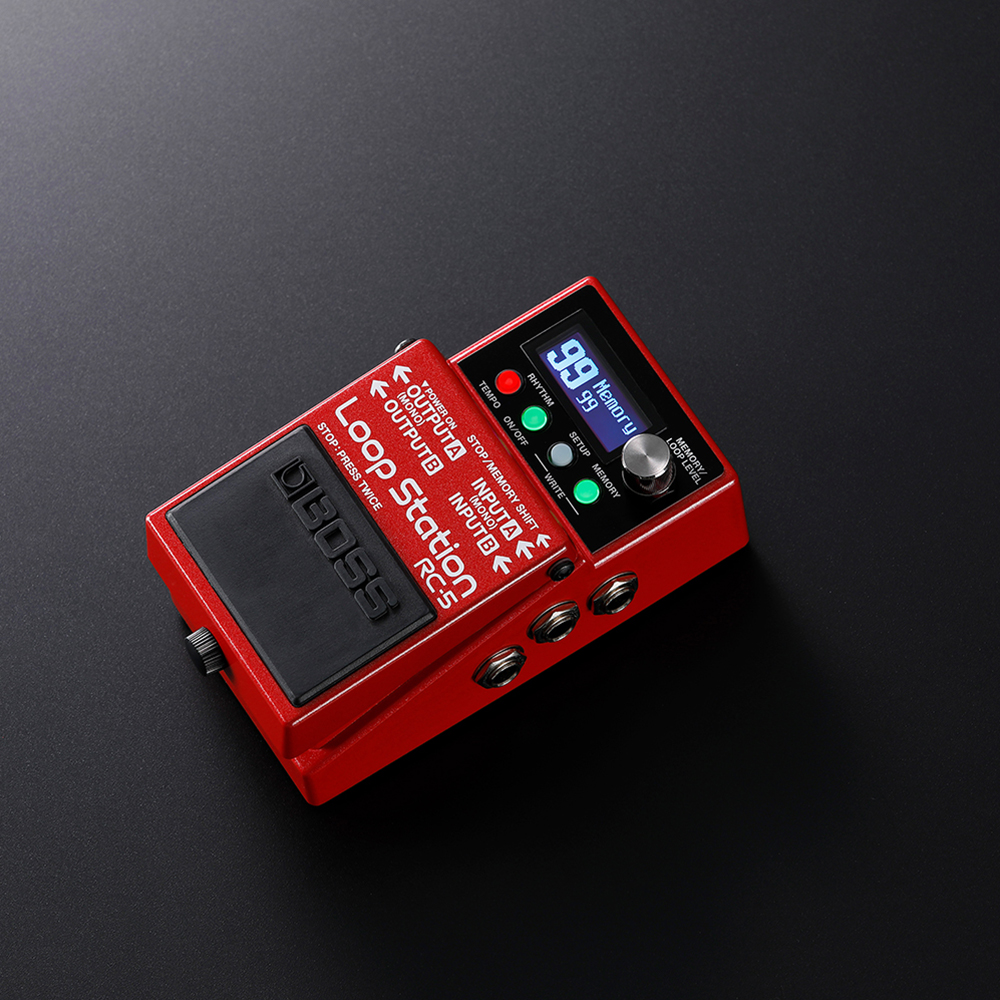

RC-5 Loop Station

Standard Features

• Advanced BOSS looping features in a compact footprint
• Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
• Stereo looper engine with 13 hours of recording time
• LCD with multi-color backlight for viewing loop status and editing parameters
• Reverse function for infusing loops with interesting textures
• Seven different drum kits and 57 preset rhythms with A/B variations
• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Onboard storage for 99 phrase memories
• Back up and load WAV loops via USB

SPECIFICATIONS

Sampling Frequency                          44.1 kHz

AD/DA Conversion                             32 bits

Processing                                        32-bit floating point

Recording/Playback                           Number of Track: 1

Data Format: WAV (44.1 kHz, 32-bit float, stereo)

Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type                                      57 Patterns x 2 Variations

Rhythm Kit                                         7 types

Effect                                                 Reverb (only for rhythm part)

Memory                                             99

Nominal Input Level                            INPUT A/MONO, B: -20 dBu

Input Impedance                                INPUT A/MONO, B: 1 M ohm

Nominal Output Level                         OUTPUT A/MONO, B:-20 dBu

Output Impedance                             OUTPUT A/MONO, B: 1 k ohm

Recommended Load Impedance         OUTPUT A/MONO, B: 10 k ohms or greater

Bypass                                              Buffered bypass

Controls                                            MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch

DisplayGraphic                                   LCD (96 x 32 dots, RGB backlit LCD)

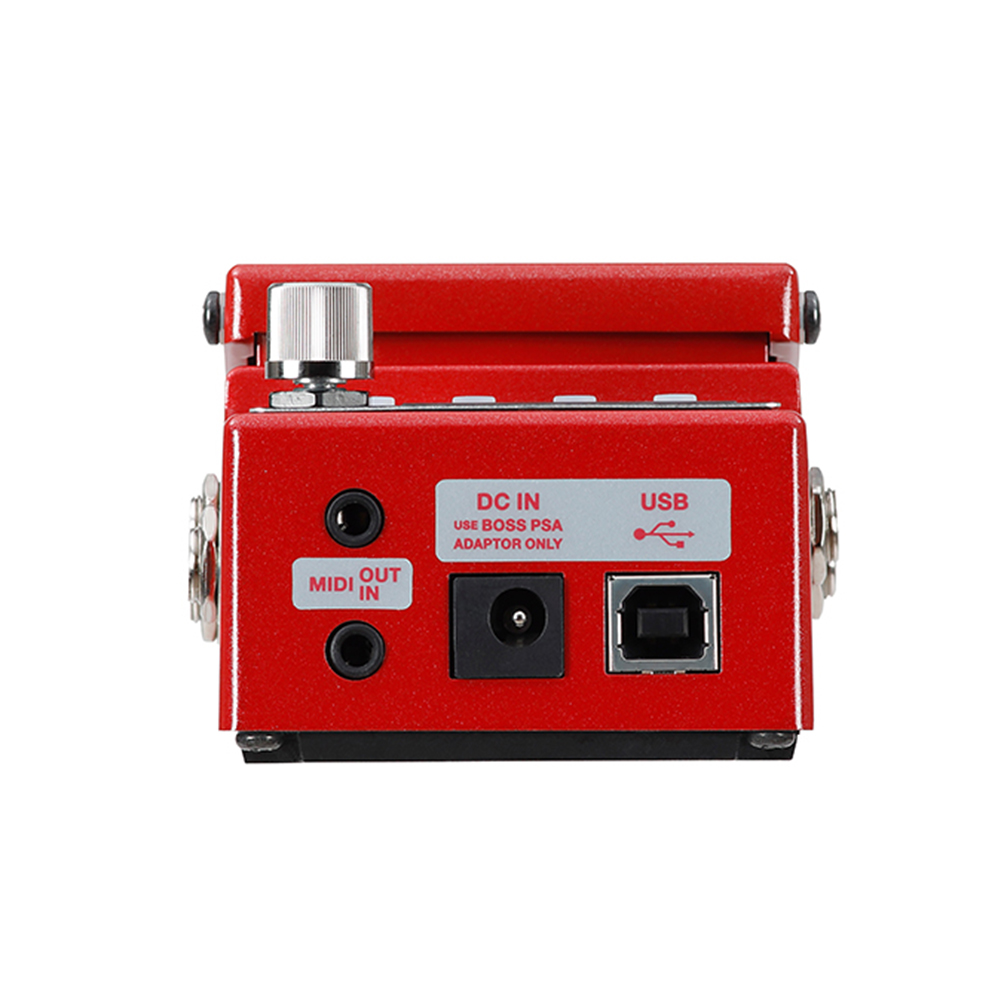

Connectors                                        INPUT A/MONO, B jacks: 1/4-inch phone type

OUTPUT A/MONO, B jacks: 1/4-inch phone type

STOP/MEMORY jack: 1/4-inch TRS phone type

USB port: USB B type

MIDI (IN, OUT) jacks: stereo miniature type

DC IN jack

Power Supply                                     Alkaline battery (9 V, 6LR61 or 6LF22)AC adaptor (PSA series: sold separately)

Current Draw                                     170 mA

SIZE AND WEIGHT

Width                                                 73 mm

2-7/8 inches

Depth                                                129 mm

5-1/8 inches

Height                                               56 mm

2-1/4 inches

Weight (including battery)                  450 g

1 lb* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
