RC-202 Loop Station

FINGERTIP LOOPING FOR PROGRESSIVE MUSIC CREATORS

Perfect for club performers, electronic musicians, and beatboxers, the RC-202 packs powerful BOSS looping and multi-effects in an amazingly compact tabletop unit. Based on the popular RC-505 Loop Station, the two-track RC-202 offers the distinctive look and fingertip interface style of its big brother, plus a host of new features. Four Input FX and four Track FX are available at once, and loops can be saved to memories in real time for seamless creative expression while performing. Expanded foot control and MIDI capabilities are also included, ideal for looping musicians who have their hands occupied with guitar, keyboards, and other instruments.

SPECIFICATIONS

Nominal Input Level                                   NPUT MIC (variable): -40 dBu (typ.), -10 dBu (max)

   INPUT INST: -10 dBu

   AUX IN: -20 dBu

Input Impedance                                         INPUT MIC: 4 k ohms

   INPUT INST: 1 M ohm

   AUX IN: 22 k ohms

Nominal Output Level                                 OUTPUT: -10 dBu

Output Impedance                                      OUTPUT: 1 k ohm

Recommended Load Impedance               OUTPUT: 10 k ohms or greater

Recording/Playback                                   Maximum Recording Time: Approx. 3 hours (stereo)

    Maximum Phrase Memory: 8 Memory x 8 Bank

Number of Tracks: 2

Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Effect Type(INPUT FX/TRACK FX)                LPF, BPF, HPF, PHASER, FLANGER, SYNTH, LO-FI, RING MODULATOR, GUITAR TO BASS, SLOW GEAR, TRANSPOSE, PITCH SHIFT, ROBOT, VOCAL DIST, VOCODER, NATURAL COMP, HARD COMP, NATURAL LIM, HARD LIM, PHONE VOX, EQ, LOW ISOLATOR, MID ISOLATOR, HIGH ISOLATOR, OCTAVE, AUTO PAN, MANUAL PAN, TREMOLO, SLICER, DELAY, PANNING DELAY, TAPE ECHO, GRANULAR DELAY, ROLL, CHORUS, REVERB, BEAT REPEAT *1, BEAT SHIFT *1, BEAT SCATTER *1, VINYL FLICK *1

*1 TRACK FX only

Effect Type (MASTER FX)                           COMP

REVERB

Rhythm Type                                             17

Display                                                     7 segments, 3 characters (LED)

USB                                                         Mass Storage Class

Audio/MIDI

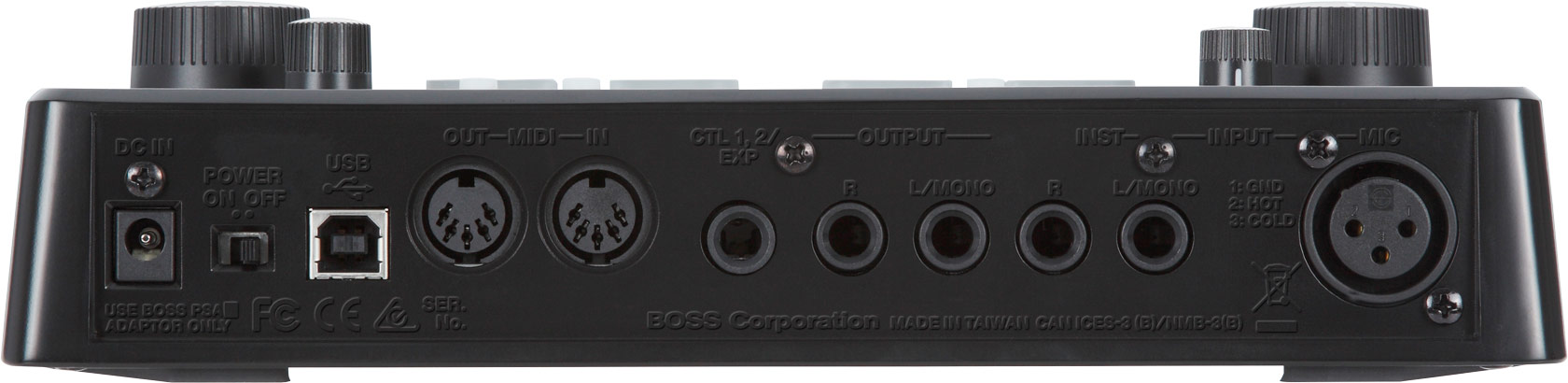

Connectors                                             INPUT MIC jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max) INPUT INST (L/MONO, R) jacks: 1/4-inch phone type

AUX IN jack: Stereo miniature phone type

Phones jack: Stereo miniature phone type

OUTPUT (L/MONO, R) jacks: 1/4-inch phone type

CTL 1, 2/EXP jack: 1/4-inch TRS phone type

USB port: USB B Type

MIDI (IN, OUT) connectors

DC IN jack

Power Supply                                        AC adaptor

Current Draw                                        400 mA

SIZE AND WEIGHT

Width                                                       239 mm

9-7/16 inches

Depth                                                       175 mm

6-15/16 inches

Height                                                      55 mm

2-3/16 inches

Weight(excluding AC Adaptor)                0.95 kg

2lbs. 2 oz. * 0 dBu = 0.775 Vrms
