FP-60X





[Sound Generator]

-Piano Sound

Piano Sound: SuperNATURAL Piano



-Max. Polyphony

256



-Tones

Piano: 16 tones

E.Piano: 18 tones

Organ: 18 tones

Strings/Pad: 27 tones

Synth/Other: 279 tones (including 8 drum sets, 1 SFX set)





[Ambience]

Type: Studio, Lounge, Concert Hall, Cathedral

Depth: 11 types





[My Stage]

8 types





[Keyboard]

-Keyboard

88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)





[Speaker System]

-Speakers

Speakers: 8 x 12 cm (3-3/16 x 4-3/4 inches) x 2 (with speaker box)



-Rated Power Output

13 W x 2





[Headphones]

Headphones 3D Ambience





[Bluetooth]

Audio: Bluetooth Ver 3.0 (Supports SCMS-T content protection)

MIDI: Bluetooth Ver 4.0





[Compatible Android / iOS Apps (Roland)]

Piano Every Day

Piano Designer





[Data Playback]

-Playable Software

Standard MIDI Files (Format 0, 1)

Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps - 320 kbps, requires USB flash drive)





[Recorder]

-Recordable Software

Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)

Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)





[Internal Songs]

32 Songs





[Tuning, Voicing]

-Touch Sensitivity

Key Touch: 100 types, fixed touch

Hammer Response: 10 types



-Master Tuning

415.3--466.2 Hz (adjustable in increments of 0.1 Hz)



-Temperament

10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key



- Effects

Ambience

Equalizer (3-band digital equalizer)

Only for organ tones:

Rotary Speaker Effect

Only for E.Piano tones:

Modulation Speed



- Mic Effects

Compressor

Doubling

Echo



-Piano Designer

Lid

String Resonance

Damper Resonance

Key Off Resonance

Single Note Tuning

Single Note Volume

Single Note Character





[Convenient Functions]

Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)

Auto Tempo

Transpose (Keyboard/Song: in semitones)

Registration (45 registrations, capable of pedal shift)

Registration Set

Dual

Split (split point adjustable)

Twin Piano

Tone Demo

Auto Off





[Other]

-Display

Graphic LCD 132 x 32 dots



-Control

Volume slider

Equalizer sliders (Low/Mid/High)

Part sliders (Lower/Upper)

Mic Vol. slider

Speaker switch

Mic Gain knob





-Connectors

DC In jack

Pedal (Damper/R, Sostenuto/C *1, Soft/L *1) jacks: TRS 1/4-inch phone type

Input Stereo jack: Stereo miniature phone type

Output (L/Mono, R) jacks: 1/4-inch phone type

Mic Input jack: 1/4-inch phone type

USB Computer port: USB B type

USB Memory port: USB A type

Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

*1: Assignable



-Power Supply

AC adaptor



-Power Consumption

25W (When using the included AC adaptor)

*Approximate power consumption when playing the piano at medium volume: 5W

Power consumption when sound has not been played after power-on: 4W





[Dimensions]

Detached music rest:

1,291 (W) x 344 (D) x 126 (H) mm

50-7/8 (W) x 13-9/16 (D) x 5 (H) inches

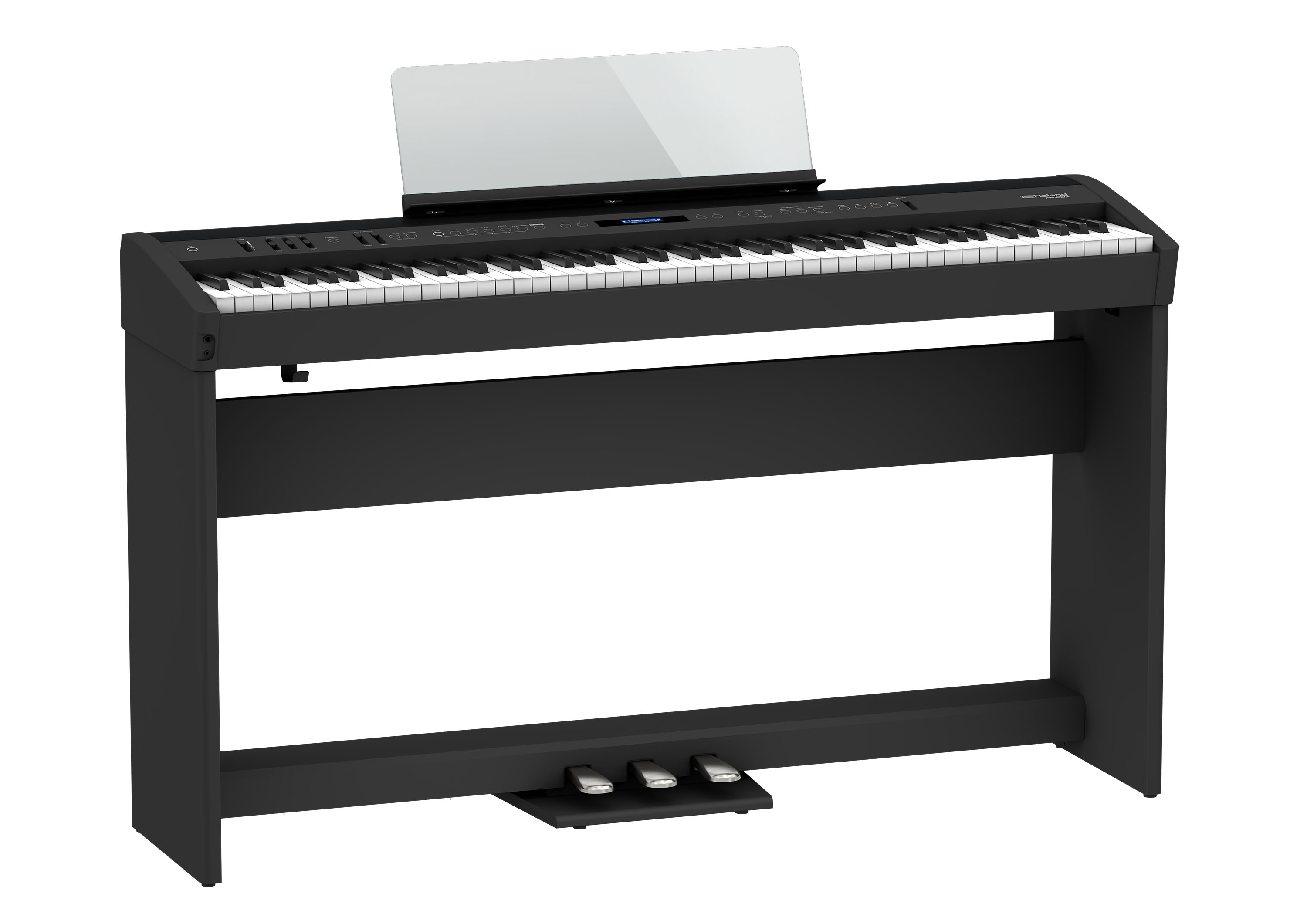

FP-60X with KSC-72 and music rest:

1,291 (W) x 382 (D) x 939 (H) mm

50-7/8 (W) x 15-1/16 (D) x 37 (H) inches



[Weight]

19.3 kg, 42 lbs 9 oz (FP-60X with music rest)

33.0 kg, 72 lbs 13 oz (FP-60X with KSC-72, KPD-90, and music rest)





[Accessories]

Owner's Manual

Leaflet "USING THE UNIT SAFELY"

AC adaptor

Power cord

Music rest

Damper pedal (DP-10, capable of continuous detection)





[Option (sold separately)]

Dedicated stand: KSC-72

Dedicated pedal board: KPD-90

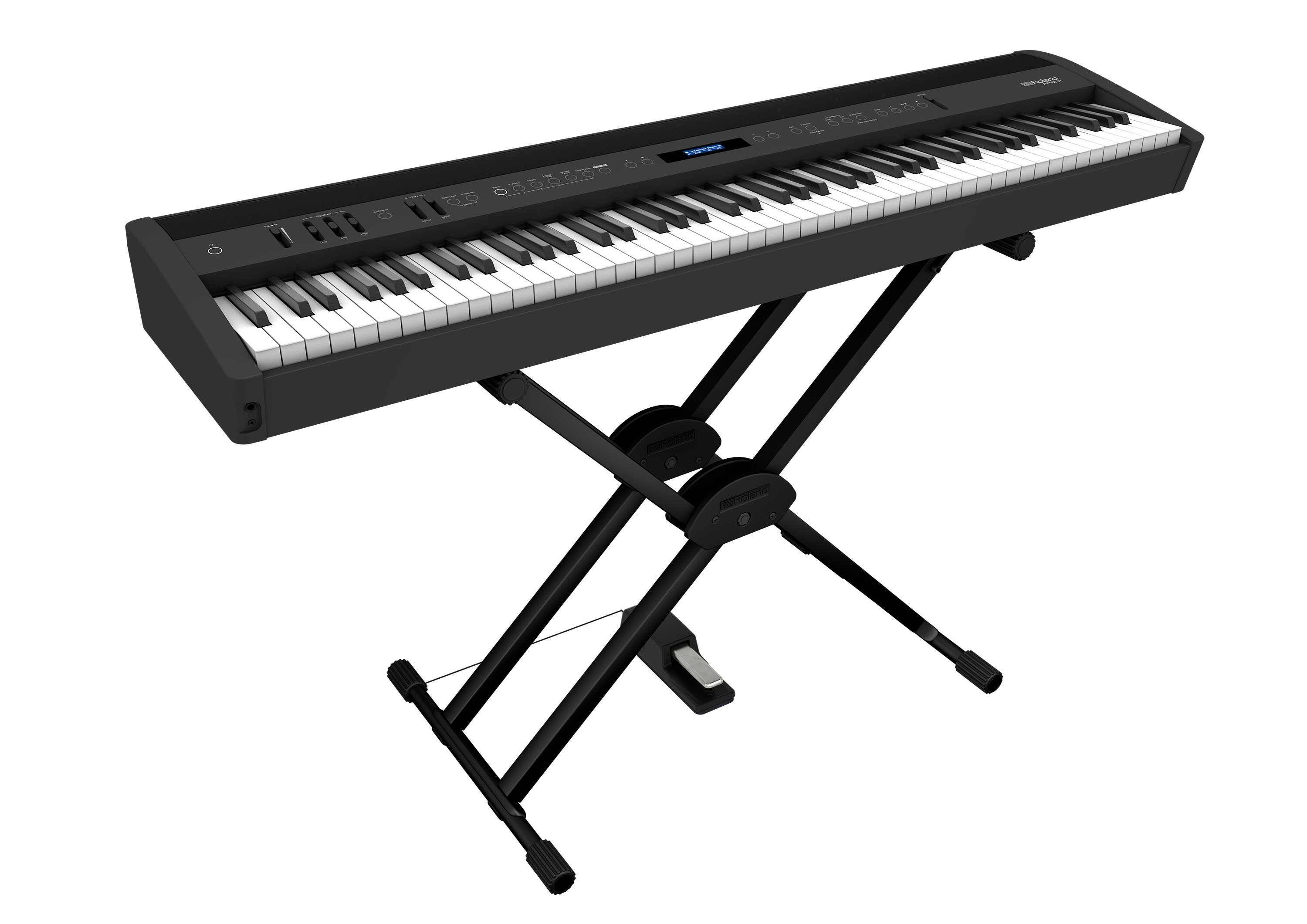

Keyboard stand: KS-G8B, KS-10Z, KS-12, KS-20X

Pedal unit: RPU-3

Damper pedal: DP series

Pedal switch: DP-2 (*1)

Expression pedal: EV-5

Carrying Bag: CB-88RL

Headphones



*1 Cannot use for Damper/R.
