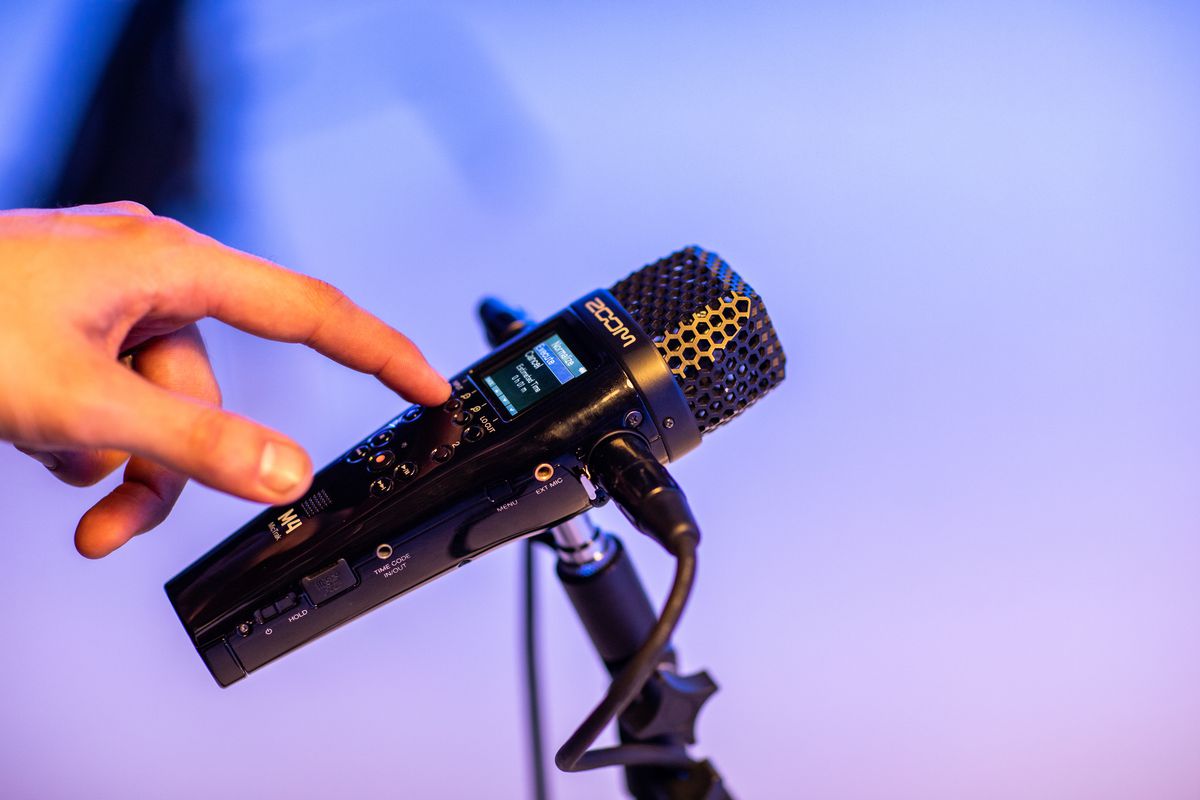

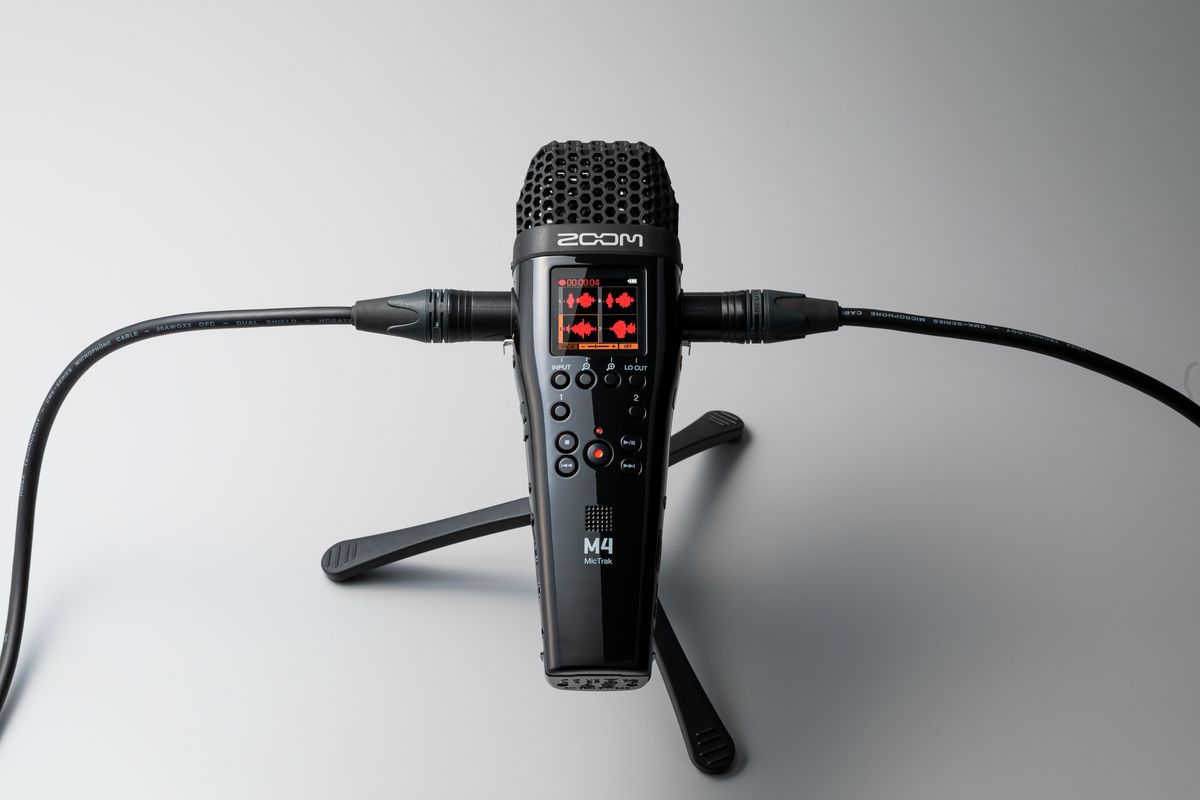

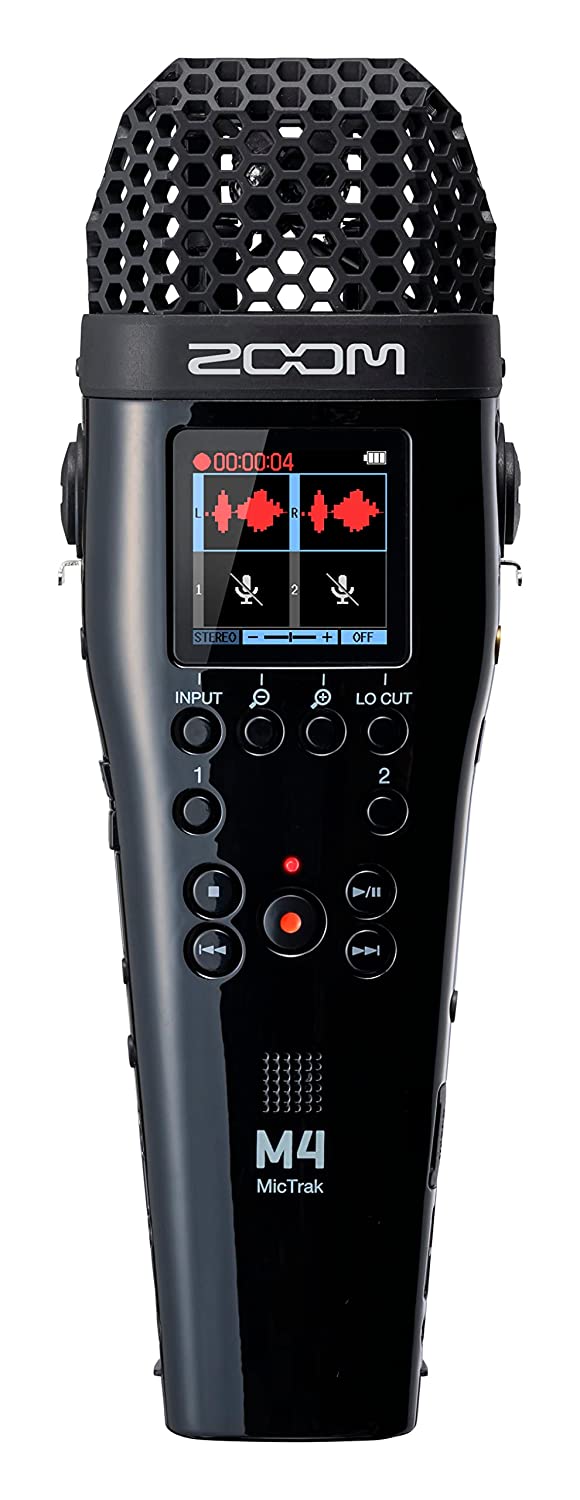

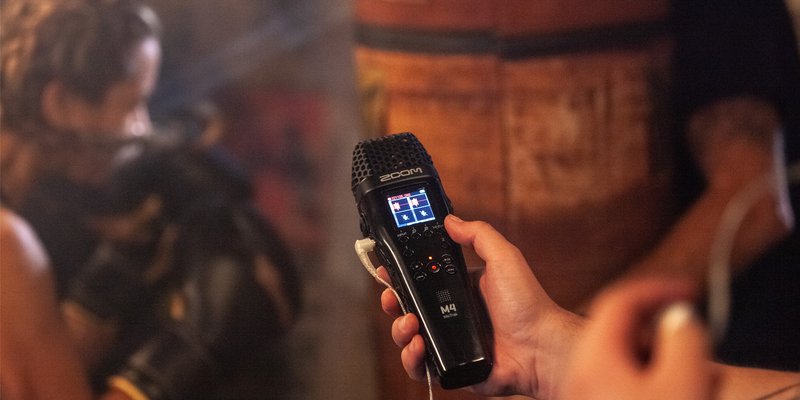

Zoom M4 MicTrak Handy Field Recorder

Rs. 38,900.00 Rs. 33,999.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here

Details

M4 MicTrak Features

4-Track 32-bit float recorder
Newly designed stereo X/Y microphones provide unmatched frequency response and clarity
Body construction and specialized finish to reduce handling noise
2 XLR/TRS inputs with F-Series preamps
Color LCD Screen with waveform display
Timecode Generator with 3.5mm in/out
Onboard Normalization function
3.5mm headphone output plus 3.5mm stereo line output for camera connection
USB Interface compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**)
Use as an audio interface and record to SD card simultaneously
Runs on 4 AA batteries* (19 hour battery life)

_{* Batteries not included}
^{** For Android, 32-Bit Float cannot be used with USB Microphone}

Description

Specs

Input and Output Channels

Inputs	Built-in mic (stereo)	1
	MIC/LINE (mono)	2
	MIC / LINE IN (stereo, supports plug-in power)	1
Outputs	LINE OUT	1
	PHONE OUT	1
	Built-in speaker (mono)	1

Inputs

Built-in mic	90º XY stereo format
	Directionality	Unidirectional
	Sensitivity	−42 dB/1 Pa at 1 kHz
	Maximum sound pressure input	135 dB SPL
MIC/LINE (mono)	Connector	XLR/TRS combo jacks × 2 (XLR: 2 HOT, TRS: TIP HOT)
	Input gain	Adjustment unnecessary (dual A/D converter circuit used)
	Input impedance	MIC: 3 kΩ or more
		LINE: 3 kΩ or more
	Maximum input level	MIC: +4 dBu
		LINE: +24 dBu
	Phantom power	+24/+48 V
		Channel total 10 mA or less
	Equivalent input noise	–127 dBu or less (IHF-A)
		with volume display amplification at maximum and 150Ω input
MIC / LINE IN (stereo, supports plug-in power)	Connector	Stereo mini jack × 1
	Input gain	Adjustment unnecessary (dual A/D converter circuit used)
	Input impedance	2 kΩ or more

Outputs

LINE OUT	Connector	Stereo mini jack × 1
	Maximum output level	+1 dBu
	Output impedance	110 Ω or less
PHONE OUT	Connector	Stereo mini jack × 1
	Maximum output level	20 ｍW + 20 ｍW (into 32Ω load)
	Output impedance	15 Ω or less
Built-in speaker		500mW 8Ω mono speaker

Recorder

Maximum simultaneous recording tracks	4
Maximum simultaneous playback tracks	4
Recording formats	WAV
	44.1/47.952/48/48.048/96/192 kHz, 32-bit float mono/stereo
	BWF and iXML formats supported
Recording media	4–32GB cards compatible with the microSDHC specification
	64GB–1TB cards compatible with the microSDXC specification

Display

	1.54-inch full-color LCD (240 × 240)

USB

Connector	USB Type-C
	• Use a USB cable that supports data transfer.
USB Mic	USB 2.0 High Speed
	48 kHz
	24-bit/32-bit float
	4-in/2-out
File transfer	USB 2.0 High Speed

Timecode

Connector	3.5mm stereo mini (TIP: input, RING: output)
Modes	Off, Internal, External
Frame rate	23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D
Precision	±0.2 ppm
Allowed input level	0.2 – 5.0 Vpp
Input impedance	4.6 kΩ
Output level	3.3 Vpp
Output impedance	50 Ω or less

Remote

	Dedicated remote control	ZOOM RC2, RC4, RCH-5 or RCH-6

Power

4 AA batteries	Alkaline, Lithium, or Rechargeable NiMH
AC adapter	ZOOM AD-17: DC 5 V/1 A
	• USB bus power is supported.

Estimated Continuous Operation Time Using Batteries | 2-Track Recording

Alkaline batteries	About 19 hours
NiMH batteries (1900 mAh)	About 14.5 hours
Lithium batteries	About 31 hours

2-track recording (built-in XY mic), 48kHz/32-bit float,
phantom power off, no headphones, no line out, timecode off, no remote, display power saving on, display brightness at 60
_{These values are approximate.

Continuous battery operation times were determined using in-house testing methods.

They will vary greatly according to use conditions.}

Estimated Continuous Operation Time Using Batteries | 4-Track Recording

Alkaline batteries	About 10 hours
NiMH batteries (1900 mAh)	About 8.5 hours
Lithium batteries	About 18.5 hours

4-track recording (built-in XY mic with INPUT 1/2), 48kHz/32-bit float,
phantom power off, headphones used (33Ω load), no line out, timecode off, no remote, display power saving on, display brightness at 60
_{These values are approximate.

Continuous battery operation times were determined using in-house testing methods.

They will vary greatly according to use conditions.}
