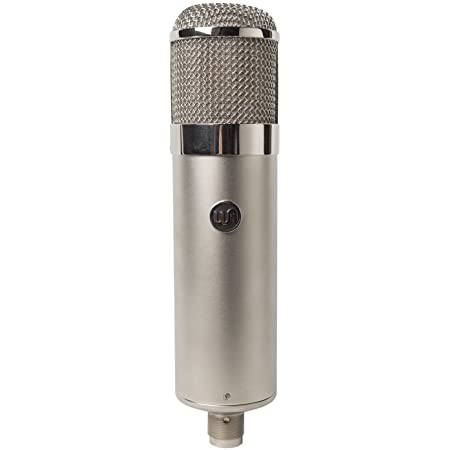

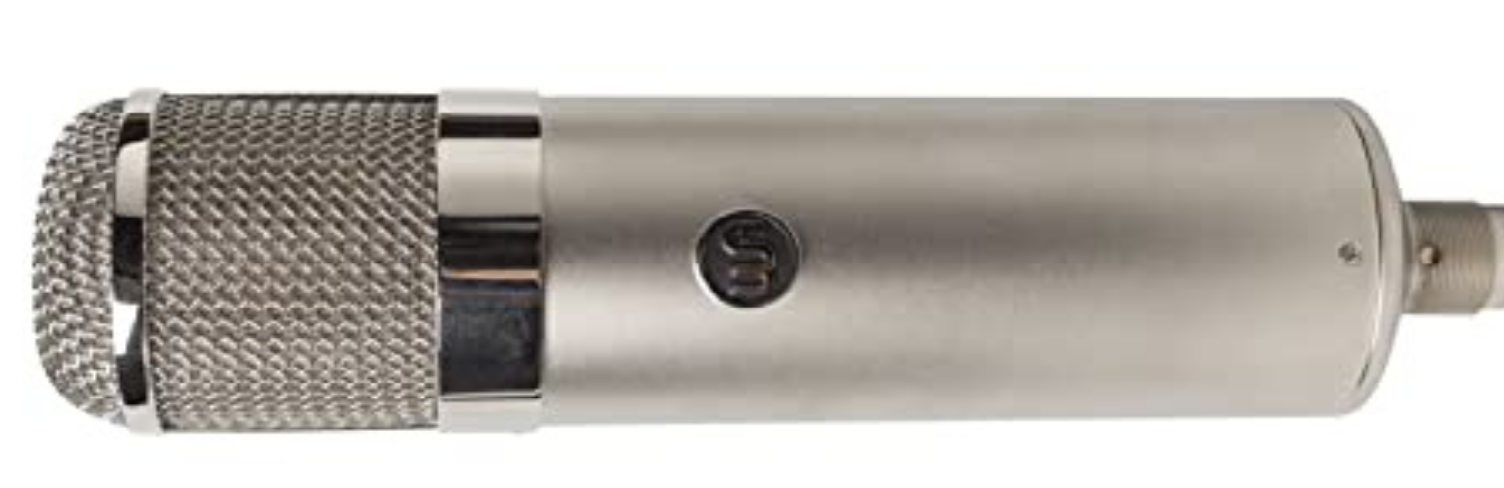

Warm Audio WA-47 Tube Condenser Microphone

Rs. 108,578.00 Rs. 90,228.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here

Details

Technical Specifications

Custom True '47 Capsule Reproduction (K47 Style) - Model# WA-47-B-80v

Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar (PET Film)

TAB-Funkenwerk (AMI) USA Output Transformer

Premium 5751 Vacuum Tube

Gotham 3 meter GAC-7, 7-pin tube microphone cable

Wima, Solen French, And Polystyrene Capacitors

Self-Noise: 11dBA

Polar Patterns: 9 Patterns - Cardioid, Omni, Figure-Of-Eight + 6 Mixed Patterns

Dynamic Range: 130dBA

Maximum SPL: 140dB (<0.5% THD)

Frequency Range: 20 Hz~20 KHz

Output Impedance: 200 ohms

Rated Load Impedance: ≥2kOhms

S/N Ratio: 82dBA

Equivalent Noise: 10dBA (IEC651)

External IEC Grounded PSU

Total Weight - 9 Lbs

Mic Diameter: 60mm

Mic Length: 254mm

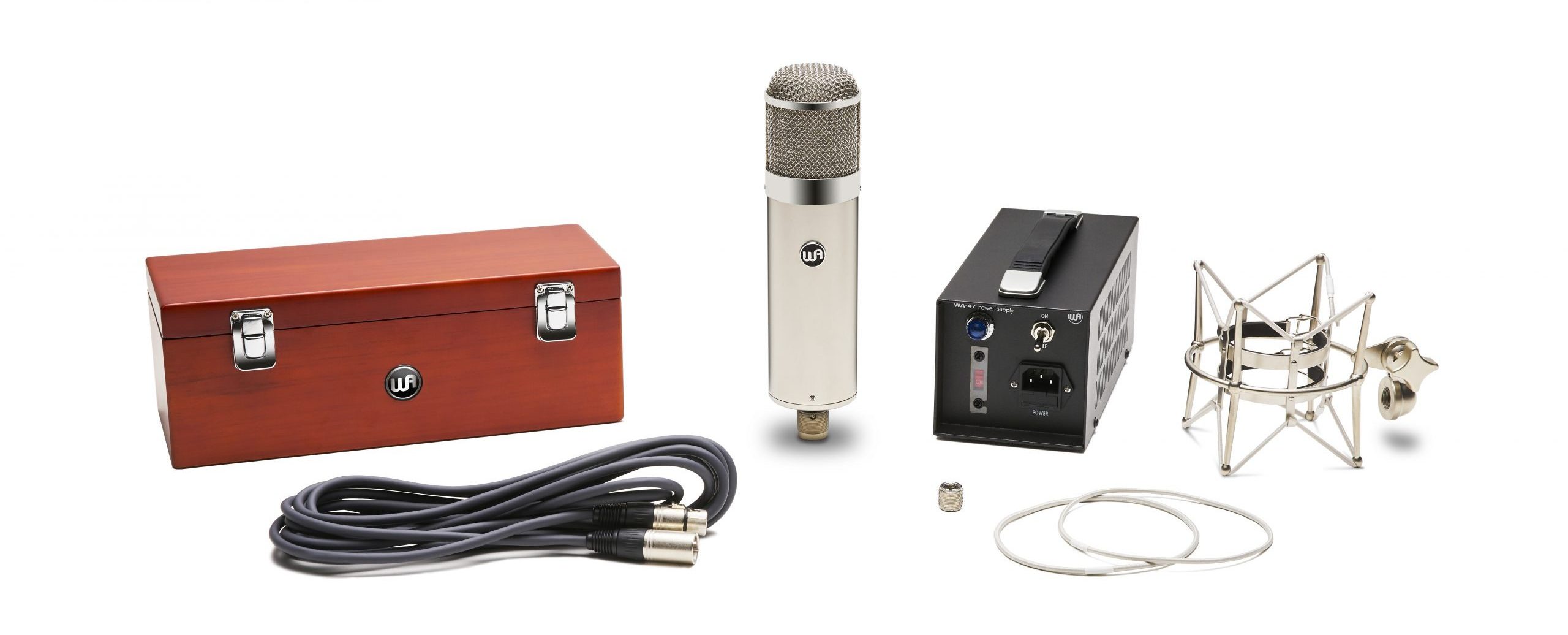

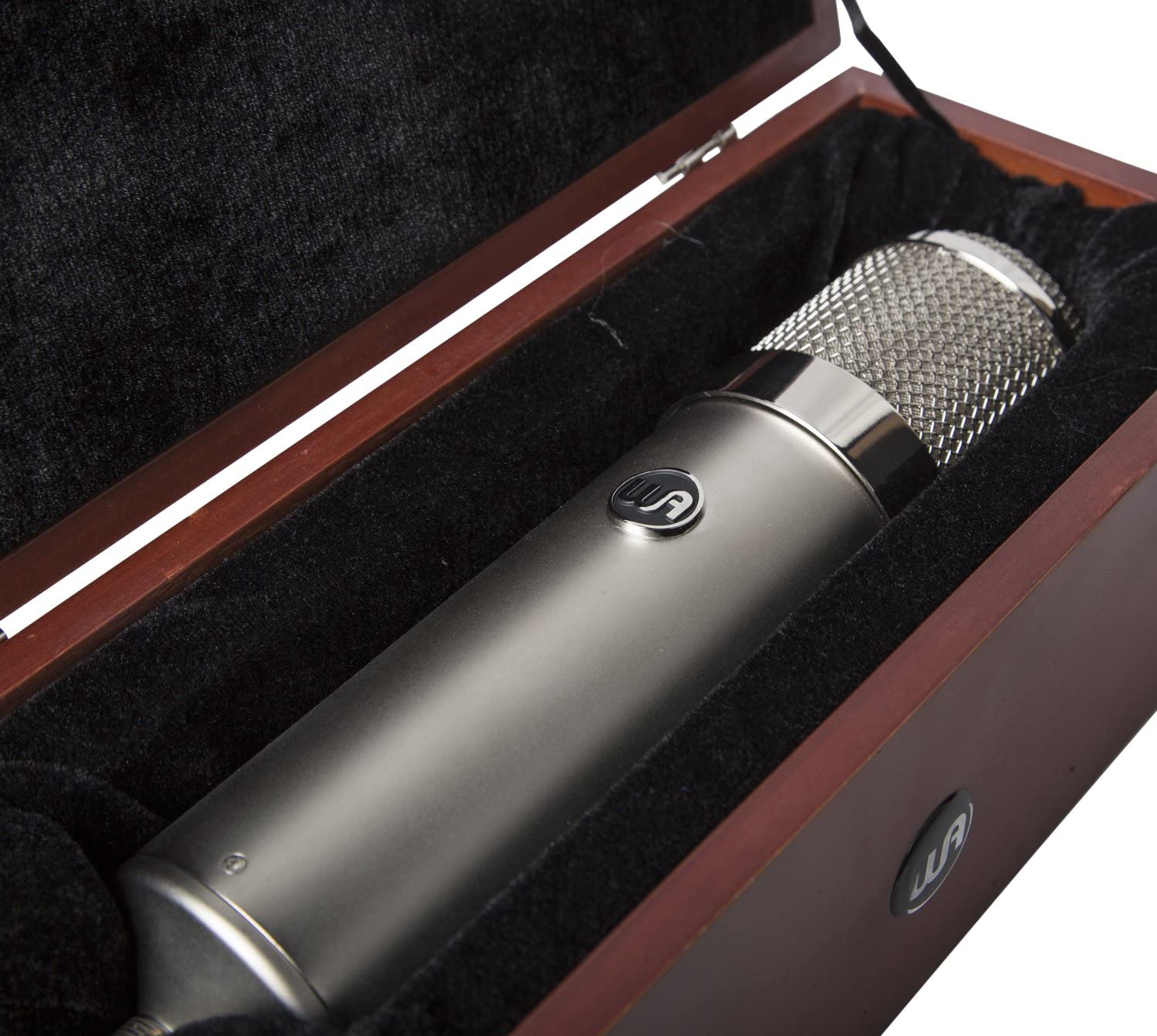

Includes: Microphone, Wood Box, Power Supply Unit, Shockmount, Gotham 7 Pin GAC-7 Cable, IEC Power Cable

Description

The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic ‘47 that has been used on countless hit records for the last 50+ years. The WA-47 is designed for pro studio, home studio, live, and broadcast applications and sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources. The classic ‘47 became extremely popular in the 1960’s and is now considered one of the greatest microphones ever made. The classic ‘47 is still widely used today in professional recording studios but have become extremely rare and expensive to acquire.

From the manufacturer

Header

WA-47 Tube Condenser Microphone

MOST COVETED TUBE CONDENSER MICROPHONE

The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic ‘47 that has been used on countless hit records for the last 50+ years. The WA-47 is designed for pro studio, home studio, live, and broadcast applications and sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources. The classic ‘47 became extremely popular in the 1960’s and is now considered one of the greatest microphones ever made. The classic ‘47 is still widely used today in professional recording studios but have become extremely rare and expensive to acquire.

Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar PET Film
TAB-Funkenwerk (AMI) USA Output Transformer
Premium 5751 Vacuum Tube
Polar Patterns: 9 Patterns - Cardioid, Omni, Figure-Of-Eight + 6 Mixed Patterns
Gotham 5 meter GAC-7, 7-pin tube microphone cable
Wima, Solen French, And Polystyrene Capacitors


Blast From The Past The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic ‘47 that has been used on countless hit records for the last 50+ years. The WA-47 is designed for pro studio, home studio, live, and broadcast applications and sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources. The classic ‘47 became extremely popular in the 1960’s and is now considered one of the greatest microphones ever made. The classic ‘47 is still widely used today in professional recording studios but have become extremely rare and expensive to acquire.	The Cable One component of a tube microphone often overlooked is the 7 pin cable that connects the microphone to its power supply. When auditioning the WA-47 and other tube microphones we learned quite a bit about 7 pin cables and how the shielding and wire gauge size can drastically change the sonics of a tube microphone. We have partnered with Gotham Audio in Switzerland to use their very carefully built top-end 7 pin GAC-7 cable. Using this cable increases top end presence and the overall size of the recorded image in the stereo field, by reducing phase shift and the parasitic effect often found in poorly built cables. Gotham Audio is very expensive and boutique in nature and should not be considered a small addition to the WA-47 package.	Designing For A Classic Designing the WA-47 to sound like the classic ‘47 was no easy task, especially considering that some of the vintage components are no longer available. We compared and listened to 2 different vintage ‘47 mics and found that they both sounded amazing but also sounded a little different from each other. These comparison tests became the benchmark for tailoring our WA-47 sonics to sit right in with these 2 vintage ‘47 mics. We are pleased to release such a gorgeous sounding classic to the market at a that’s reachable to more people than ever before. We are also proud to mention that the WA-47 sounds legitimately indistinguishable to the vintage ‘47’s we auditioned on several sources. As with all Warm Audio products, we focus heavily on quality components to ensure we release the best sounding product possible. The WA-47 is packed with premium components that are carefully sourced from the top pro audio component suppliers in the world.

wa47

Blast From The Past

The Cable

One component of a tube microphone often overlooked is the 7 pin cable that connects the microphone to its power supply. When auditioning the WA-47 and other tube microphones we learned quite a bit about 7 pin cables and how the shielding and wire gauge size can drastically change the sonics of a tube microphone. We have partnered with Gotham Audio in Switzerland to use their very carefully built top-end 7 pin GAC-7 cable. Using this cable increases top end presence and the overall size of the recorded image in the stereo field, by reducing phase shift and the parasitic effect often found in poorly built cables. Gotham Audio is very expensive and boutique in nature and should not be considered a small addition to the WA-47 package.

Designing For A Classic

Designing the WA-47 to sound like the classic ‘47 was no easy task, especially considering that some of the vintage components are no longer available. We compared and listened to 2 different vintage ‘47 mics and found that they both sounded amazing but also sounded a little different from each other. These comparison tests became the benchmark for tailoring our WA-47 sonics to sit right in with these 2 vintage ‘47 mics. We are pleased to release such a gorgeous sounding classic to the market at a that’s reachable to more people than ever before. We are also proud to mention that the WA-47 sounds legitimately indistinguishable to the vintage ‘47’s we auditioned on several sources.

As with all Warm Audio products, we focus heavily on quality components to ensure we release the best sounding product possible. The WA-47 is packed with premium components that are carefully sourced from the top pro audio component suppliers in the world.
