Warm Audio WA-47jr FET

Rs. 35,096.00 Rs. 29,946.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here

Details

FET Transformerless '47 Style Condenser Microphone.

Custom True '47 Capsule Reproduction (K47 Style)
Model# WA-47-B-80v.

Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar (PET Film).

Polar Patterns: Cardioid, Figure-Of-Eight, And Omnidirectional.

Pad: -10db

High-Pass Filter: 70Hz

Self-Noise: 9dBA

Dynamic Range: 138dBA

Fully Discrete Signal Path, Toshiba FET’s, Wima Film Capacitors, Panasonic Electrolytic Capacitors

Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)

Frequency Range: 20 Hz~20 KHz

Sensitivity: 10mV/Pa Or -40dB

Output Impedance: 100 Ohms

Rated Load Impedance: ≥1kOhms

Equivalent Noise: 10dBA (IEC651)

Total Weight: 1.1 Lbs

Mic Diameter: 52mm

Mic Length: 210mm

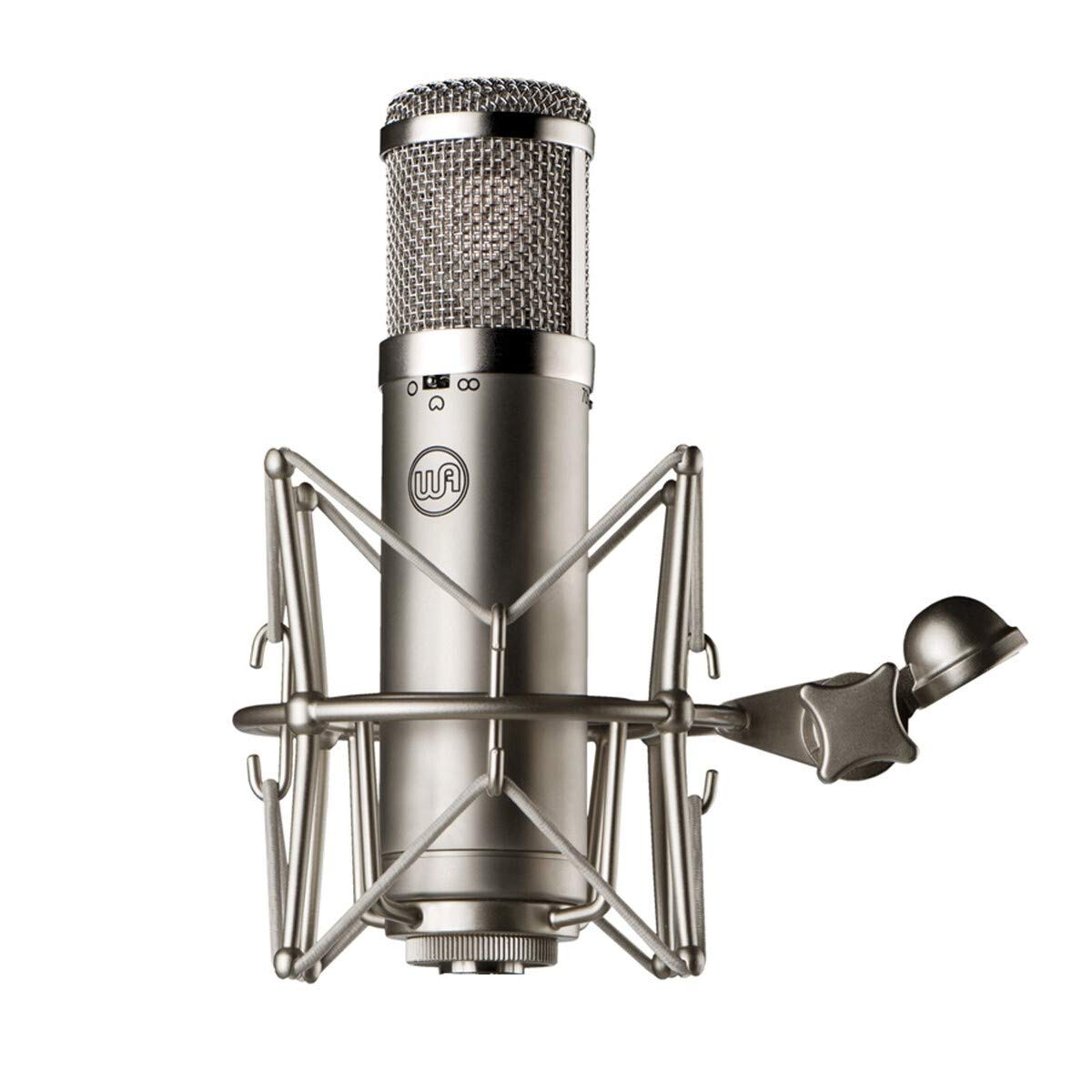

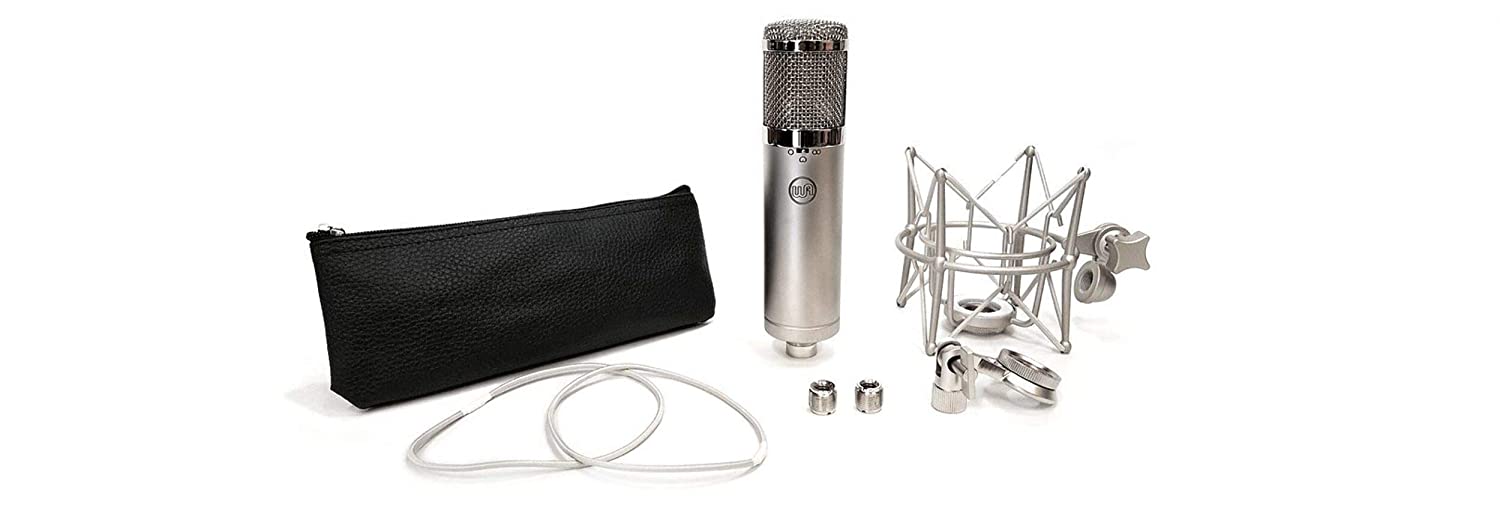

Includes: Shockmount, Hard Mount, Zipper Storage Pouch

Description

The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage design. Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability that allows the most important sonic piece of the classic mic to be heard and influence the tone and signature of the WA-47jr. The WA47jr's low-noise and discrete signal path, when paired with this excellent true '47 style capsule, allows it to obtain a very similar tone to the classic ‘47 microphone, but at a much lower price tag. The WA-47jr utilizes the same k47 style capsule found in our flagship WA-47 tube condenser microphone.

The WA-47jr circuit uses high quality Toshiba FET’s, Wima film capacitors and Panasonic electrolytic capacitors. The circuit is modernized and more simple than the classic ‘47 tube microphone, but the components and circuitry are top-notch, and have a sound quality and tone that punches far above anything we’ve ever heard in this price range.

We at Warm Audio are very excited to bring this ‘47 style FET condenser microphone and classic tone to the market at such an affordable price. We feel confident that you will enjoy a lifetime of beautiful recordings with the WA-47jr.

From the manufacturer

Header

WA-47jr

WA-47jr FET Condenser Microphone

MOST COVETED AFFORDABLE '47 STYLE TRANSFORMERLESS MICROPHONE

Compared to tube-based microphones, solid-state microphones like the Warm Audio WA-47jr are prized for their detailed sound and resistance to distortion. These are the reasons transformerless FET mics with a U47-style capsule are so popular on kick drums and other percussion instruments, capturing their power and intensity with amazing fidelity. So naturally, the WA-47jr shines on percussion. That said, it’s also a go-to choice for acoustic instruments where capturing fast transients is critical, and it should be on your short list of mics to audition on vocalists, electric guitar cabs, and a whole lot more. Perhaps the more pertinent question is: what isn’t it great on

FET Transformerless '47 Style Condenser Microphone.
Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate 6 Microns NOS Mylar PET Film
Polar Patterns: Cardioid, Figure-Of-Eight, And Omnidirectional.
Fully Discrete Signal Path, Toshiba FET’s, Wima Film Capacitors, Panasonic Electrolytic Capacitors
Equivalent Noise: 10dBA (IEC651)
Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
ncludes: Shockmount, Hard Mount, Zipper Storage Pouch


Born Out Of Need When designing our first microphone we knew that the single greatest challenge would be to offer a capsule that was built to a high standard and in a range that every-day musicians and engineers could afford. We already knew where to find great microphone transformers, precision resistors, polystyrene, tantalum and WIMA film capacitors; but we came to realize that a quality affordable microphone capsule that met our specifications simply wasn’t out there. We knew we would have to develop our own line of capsules. The WA (Warm Audio) brand of capsule is the result of several years of research, a lifetime of listening, and a passion for great sound. Above all else, Warm Audio capsules came from the desire to give customers far more quality/value than what they are used to getting in an affordable microphone	Quality Components Make A Better Mic The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage part. Our version of this capsule (model# WA-47-B-80v) is assembled with precision by an Australian capsule manufacturer. The WA47jr's low-noise and discrete signal path then paired with an excellent true '47 style capsule allows this mic to obtain a very similar tone to the classic ‘47 microphone at a much lower tag.The Warm Audio WA-47-B-80v capsule is also used in our flagship WA-47 tube condenser microphone.	Like Father. Like Son. The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage design. Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability that allows the most important sonic piece of the classic mic to be heard and influence the tone and signature of the WA-47jr. We at Warm Audio are very excited to bring this ‘47 style FET

WA-47jr

wa-47jr

Born Out Of Need

When designing our first microphone we knew that the single greatest challenge would be to offer a capsule that was built to a high standard and in a range that every-day musicians and engineers could afford. We already knew where to find great microphone transformers, precision resistors, polystyrene, tantalum and WIMA film capacitors; but we came to realize that a quality affordable microphone capsule that met our specifications simply wasn’t out there. We knew we would have to develop our own line of capsules.

The WA (Warm Audio) brand of capsule is the result of several years of research, a lifetime of listening, and a passion for great sound. Above all else, Warm Audio capsules came from the desire to give customers far more quality/value than what they are used to getting in an affordable microphone

Quality Components Make A Better Mic

The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage part. Our version of this capsule (model# WA-47-B-80v) is assembled with precision by an Australian capsule manufacturer. The WA47jr's low-noise and discrete signal path then paired with an excellent true '47 style capsule allows this mic to obtain a very similar tone to the classic ‘47 microphone at a much lower tag.The Warm Audio WA-47-B-80v capsule is also used in our flagship WA-47 tube condenser microphone.

Like Father. Like Son.

The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage design. Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability that allows the most important sonic piece of the classic mic to be heard and influence the tone and signature of the WA-47jr. We at Warm Audio are very excited to bring this ‘47 style FET
