Description
Small Size. Big Beats.
Roland TR drum machines have impacted music for over 40 years—and they're as influential now as ever. Based on the much-loved TR-8S, the compact and affordable TR-6S has the same speaker-pummeling, window-rattling, body-moving sound of its bigger sibling. Elevate your drum tracks, make beats on the go, and experience the joy of hands-on production. With the TR-6S, the sound of classic tracks, today's trends, and tomorrow's hits are always within reach.
SPECIFICATIONS
User Drum Kit
128
User Patterns
128
Step Sequencer
6 instrument parts
16 steps per 1 variation
8 (A - H) variations per 1 pattern
2 Fill-in patterns per 1 pattern
INST tone
(Tone can be assigned to each 6 instrument parts freely.)
BASS DRUM: 11 ACB tones
SNARE DRUM: 8 ACB tones
TOM: 19 ACB tones
RIM SHOT: 3 ACB tones
HAND CLAP: 5 ACB tones
HI HAT: 8 ACB tones
CYMBAL: 8 ACB tones
PERCUSSION: 24 ACB tones
FM: 66 tones
PRESET SAMPLE: 300 tones or greater
USER SAMPLE (imported form SD CARD for playback): Avarable format: WAV, AIFF
Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)
* The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).
* Available format of Sample:
WAV 96 kHz maximum/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)
AIFF 44.1kHz, 48kHz, 96 kHz/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)
Effects
INST FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER, SATURATOR, FREQ SHIFT, RING MOD, SPREAD
REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD
DELAY: DLY, PAN, TAPE ECHO
MASTER FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ,
CRUSHER, PHASER, FLANGER, SBF, NOISE
Other: SCATTER (as one of AUTO FILL IN function), SIDE CHAIN
Display
16 characters, 2 line (backlit LCD)
External Storage
SD Card (SDHC supported) for backup/restore function and import sample data

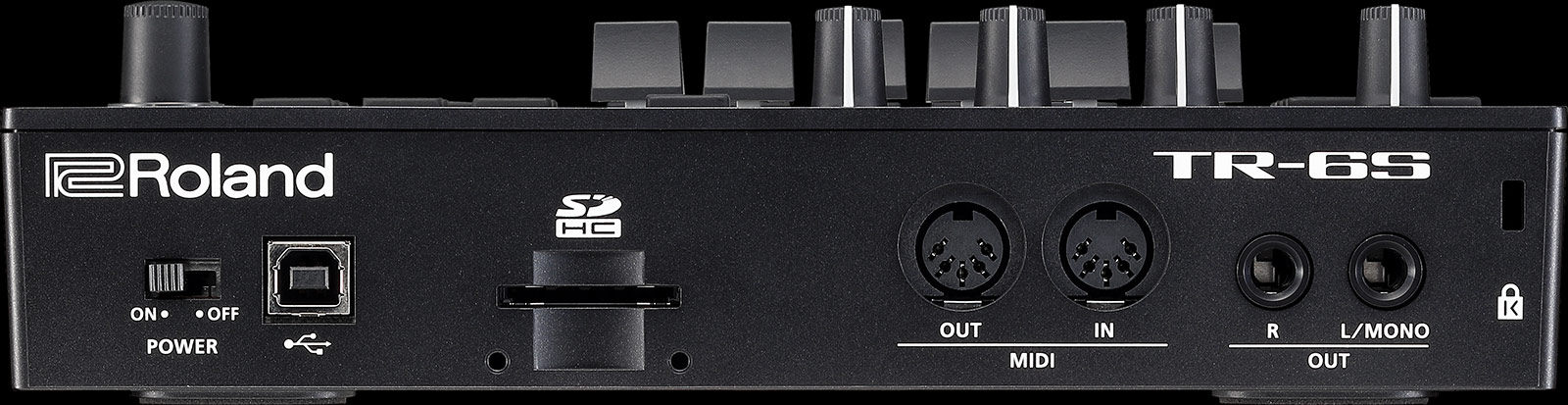

Connectors
PHONES jack: Stereo miniature phone type
OUT(L/MONO, R) jacks: 1/4-inch phone type
MIDI(IN, OUT) connectors
USB port: USB B type (Audio, MIDI)

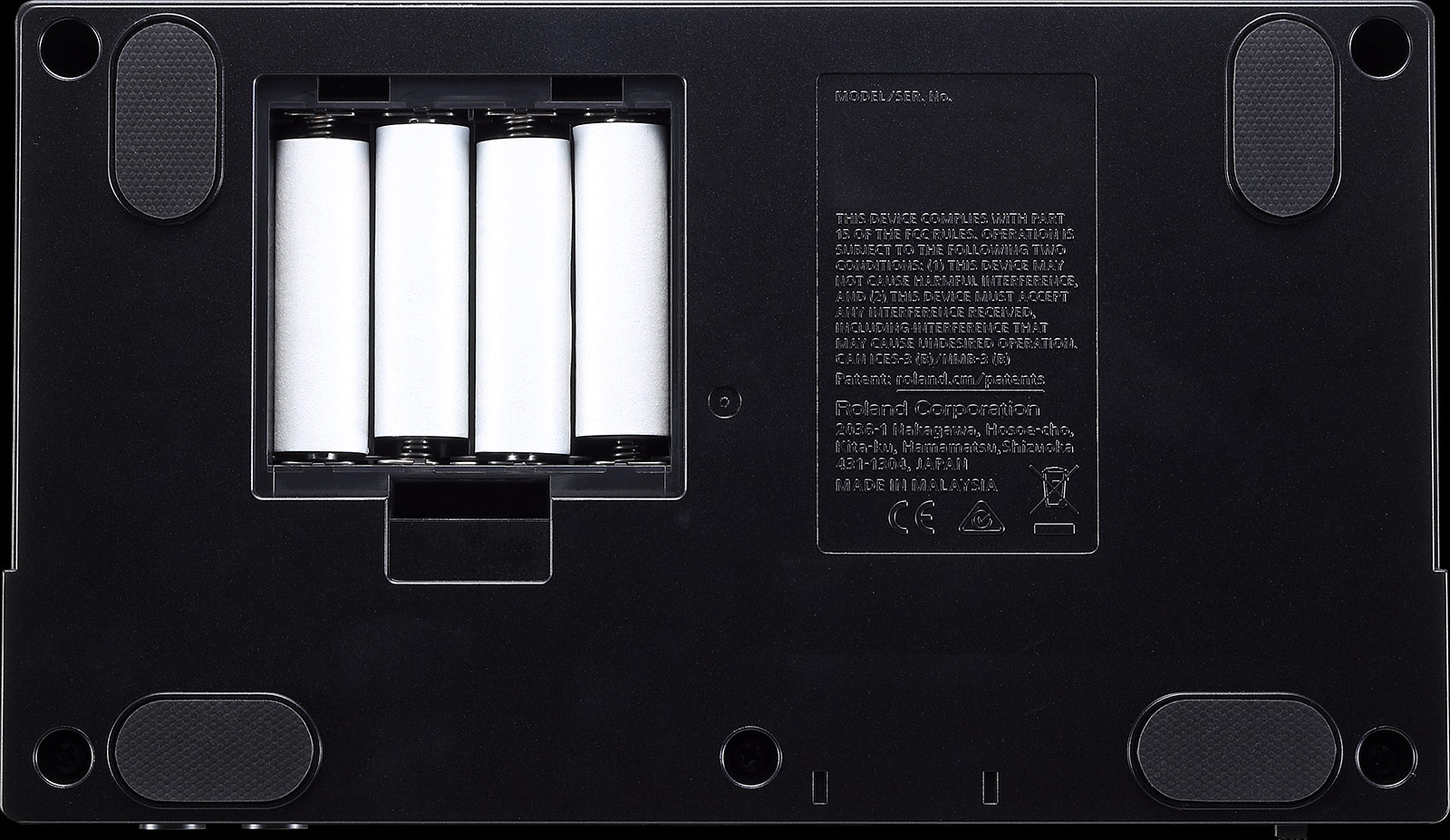

Power Supply
Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
Obtained via USB port (USB bus power)
Current Draw
500 mA
Expected battery life under continuous use
Alkaline battery: Approx. 4.5 hours
Ni-MH battery: Approx. 5.5 hours (When using batteries having a capacity of 1,900 mAh.)
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories
Leaflet "Read Me First"
Alkaline battery (AA, LR6) x 4
Dimensions
224(W) x 132(D) x 60.1(H) mm
8-13/16(W) x 5-3/16(D) x 2-3/8(H) inches
Weight (including batteries)
705 g
1 lb 9 oz
