ROLAND BRIDGE CAST DUAL BUS GAMING MIXER

Rs. 29,900.00 Rs. 23,500.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here

Details

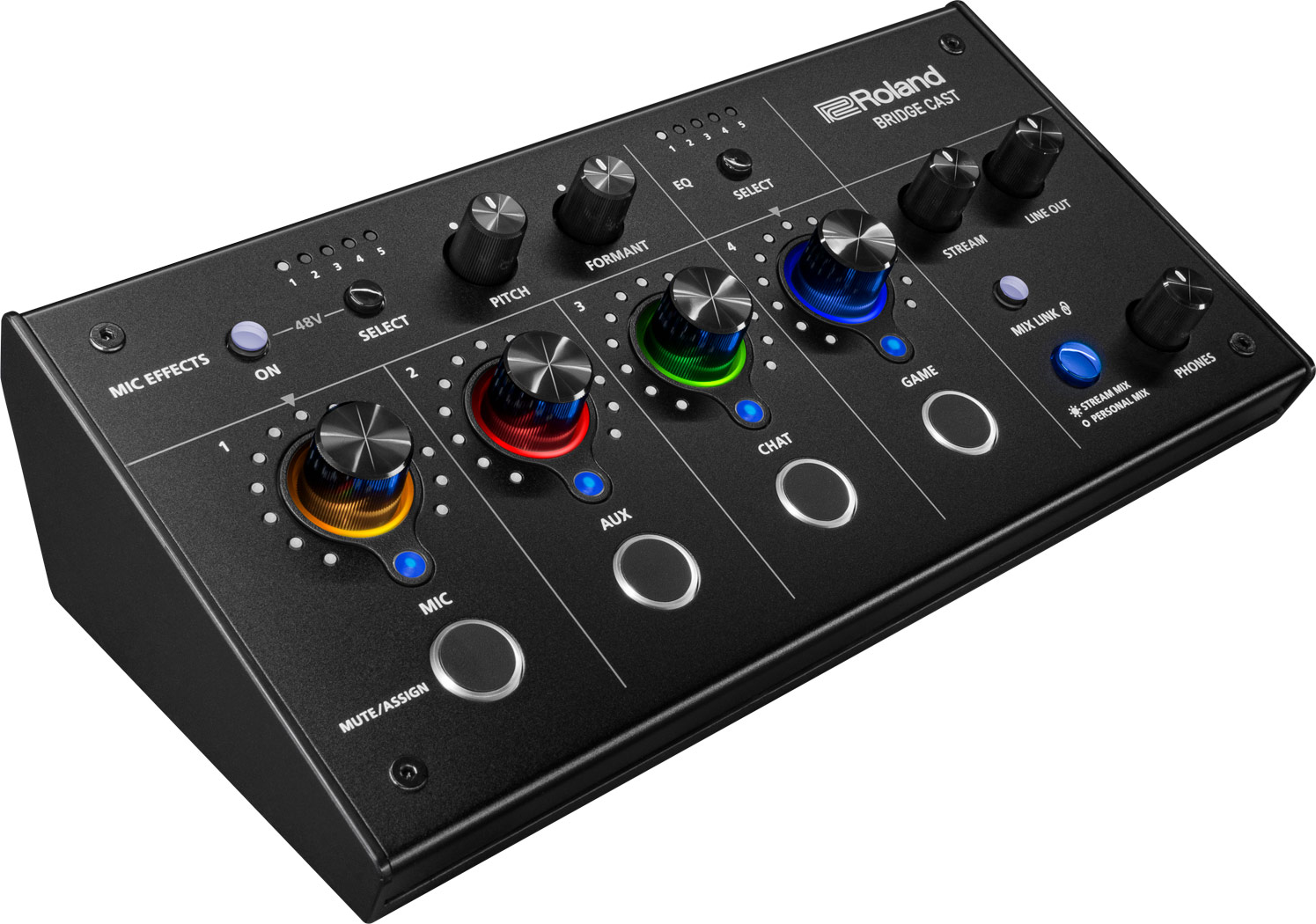

Professional audio streaming interface and mixer designed for online gamers
Powerful 32-bit hardware DSP allows you to dedicate all your computer resources to gaming and streaming
Create independent mixes for you and the online audience with dual audio busses
USB-C connectivity with Windows and Mac* computers and mobile devices
Also works with the Sony PlayStation®5 console**
High-quality XLR microphone preamp with phantom power for broadcast-grade mics
Headphones jack with a professional high-sensitivity output and support for a headset or inline mic

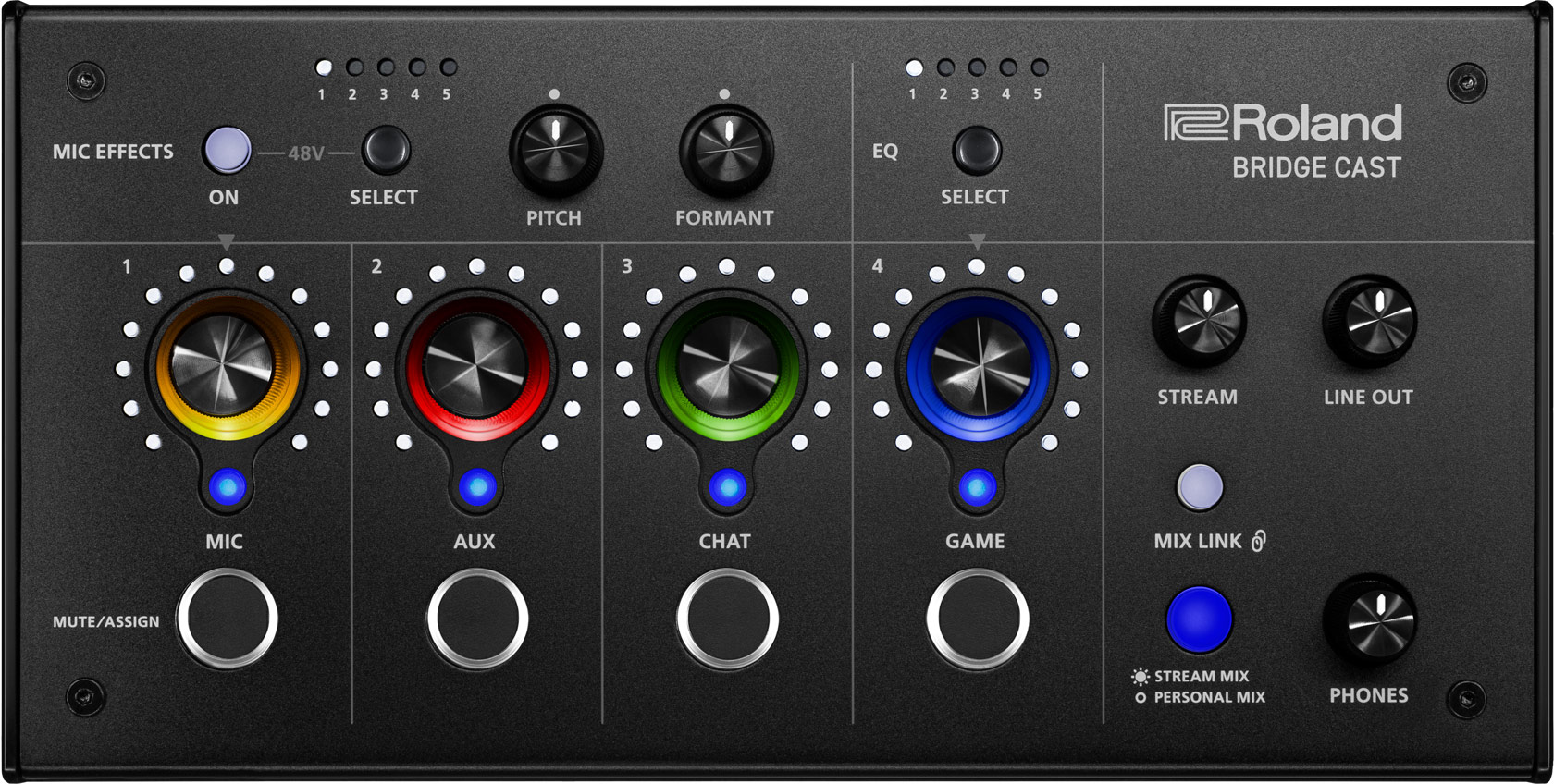

Hands-on knobs and buttons for quick sound control
Solid, streamlined design with customizable faceplate and adjustable knob LED colors
Voice Changer effects derived from the Roland VT series
High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb
Enhance your gaming performance with five customizable Game EQ presets
Delay function to synchronize audio with video when needed
Aux input for playing audio from a smartphone or external device
Customize settings and save hardware configurations with the BRIDGE CAST app
Add royalty-free music to streams via the BRIDGECAST app and Roland Cloud***

Description

SPECIFICATIONS

Input Channel

MIC
AUX
CHAT (*1)
GAME (*1)
MUSIC (*1)
SYSTEM (*1)
USB (*2)

(*1) When the USB port connection setting is "PC"
(*2) When the USB port connection setting is "CONSOLE/MOBILE"

Output Channel

LINE OUT
PHONES
MIC (*3)
STREAM (*3)
PERSONAL (*3)
USB(*4)

(*3) When the USB port connection setting is "PC"
(*4) When the USB port connection setting is "CONSOLE/MOBILE"

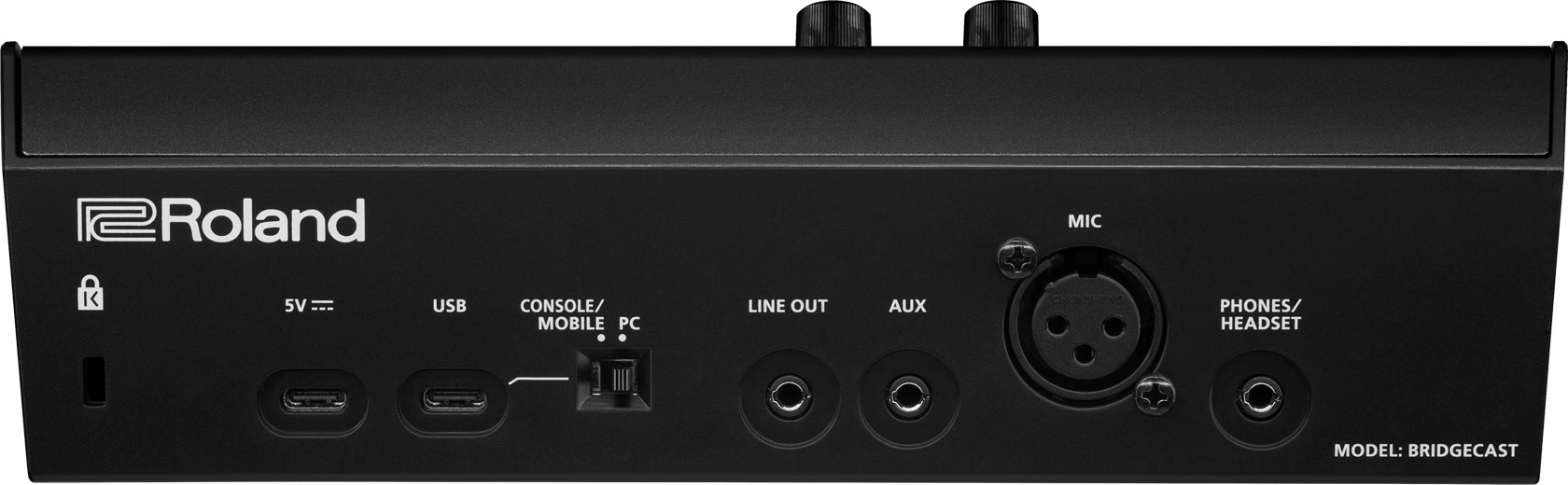

Connectors

MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max)
PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power)
AUX jack: Stereo miniature phone type (TRRS)
LINE OUT jack: Stereo miniature phone type (TRS)
USB port: USB Type-C (R)
USB DC 5V port: USB Type-C

Audio Mixing Bus

2 (STREAM MIX, PERSONAL MIX)

Sampling Frequency

Windows: 44.1 kHz, 48 kHz, 96 kHz
macOS/iOS/Other: 48 kHz

Signal Processing

AD/DA: 24 bits
Internal Processing: 32-bit Floating point

Effects

MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
CHAT: De-esser, Compressor
GAME: Equalizer
STREAM: Delay

Audio File Player

Number of tracks: 2
Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
Maximum Time: 5 seconds/track

Input Level

MIC: -85.5--10.5 dBu (Maximum: +1.5 dBu)
HEADSET MIC: -58.5--20.5 dBu (Maximum: -8.5 dBu)
AUX: -10 dBu (Maximum: +2 dBu)

Input Impedance

MIC: 3.4 k ohms
HEADSET MIC: 1.3 k ohms
AUX: 10 k ohms

Output Level

LINE OUT: -4 dBu (Maximum: +8 dBu)
PHONES/HEADSET: -1 dBu (Maximum: +11 dBu)
PHONES/HEADSET: 78 mW + 78 mW (32 ohms)
PHONES/HEADSET: 35 mW + 35 mW (250 ohms)

Output Impedance

LINE OUT: 1 k ohm
PHONES/HEADSET: 10 ohms

Power

USB bus power
USB AC adaptor (commercially available)
* Use an USB AC adaptor that can supply 5 V, 1.0 A or more.

Current Draw

5 V DC, 900 mA

Operating System

Microsoft Windows 10, Windows 11
Apple macOS 11 or later
Apple iOS 15 or later

* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the BRIDGE CAST, Roland cannot guarantee that a given computer can be used satisfactorily with the BRIDGE CAST based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.

Accessories

Leaflet "Read Me First"
USB 2.0 Type-C to Type-C Cable (2 m, 6.5 feet)
USB 2.0 Type-C to Type-A Cable (2 m, 6.5 feet)

SIZE AND WEIGHT

Width

222 mm
8.7 inches

Depth

110 mm
4.3 inches

Height

70 mm
2.8 inches

Weight

450 g
1 lb
