Description
PERFORM AT THE SPEED OF INSPIRATION
Combining song-based looping and organic rhythms in a compact package, the RC-10R brings fresh inspiration to live performances, song-writing sessions, and daily practice. This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills. Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI. A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.
SPECIFICATIONS (LOOPER)
Sampling Frequency 44.1 kHz
AD/DA Conversion 32 bits
Processing 32-bit floating point
Recording/Playback Maximum Recording Time: Approx. 6 hours (stereo)
Maximum Phrase Memory: 99
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
SPECIFICATIONS (RHYTHM)
Rhythm Type 280 types or greater
Rhythm Control Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending
Rhythm Kit 16 types
Maximum Polyphony24 voices
Effect Reverb (only for rhythm part)
SPECIFICATIONS (COMMON)
Memory 99
Nominal Input Level INPUT A/MONO, B: -10 dBu
Maximum Input Level INPUT A/MONO, B: +8 dBu
Input Impedance INPUT A/MONO, B: 1 M ohm
Nominal Output Level OUTPUT A/MONO, B: -10 dBu
Maximum Output Level OUTPUT A/MONO, B: +8 dBu
Output Impedance OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance OUTPUT A/MONO, B: 10 k ohms or greater
Bypass Buffered bypass
Controls RHYTHM switch, LOOP switch
VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
MENU button, EXIT button
Display 16 characters x 2 lines LCD (with backlit)
Indicator RHYTHM indicator, LOOP indicator

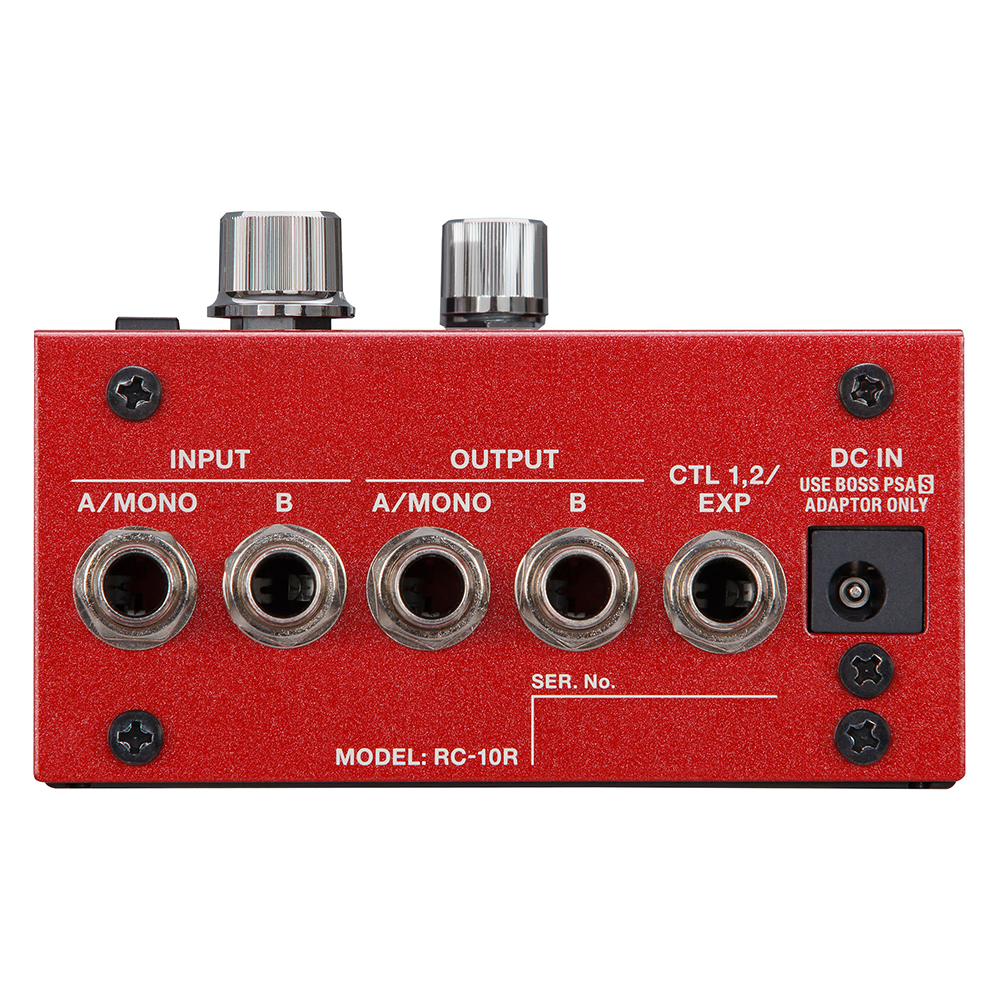

Connectors INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

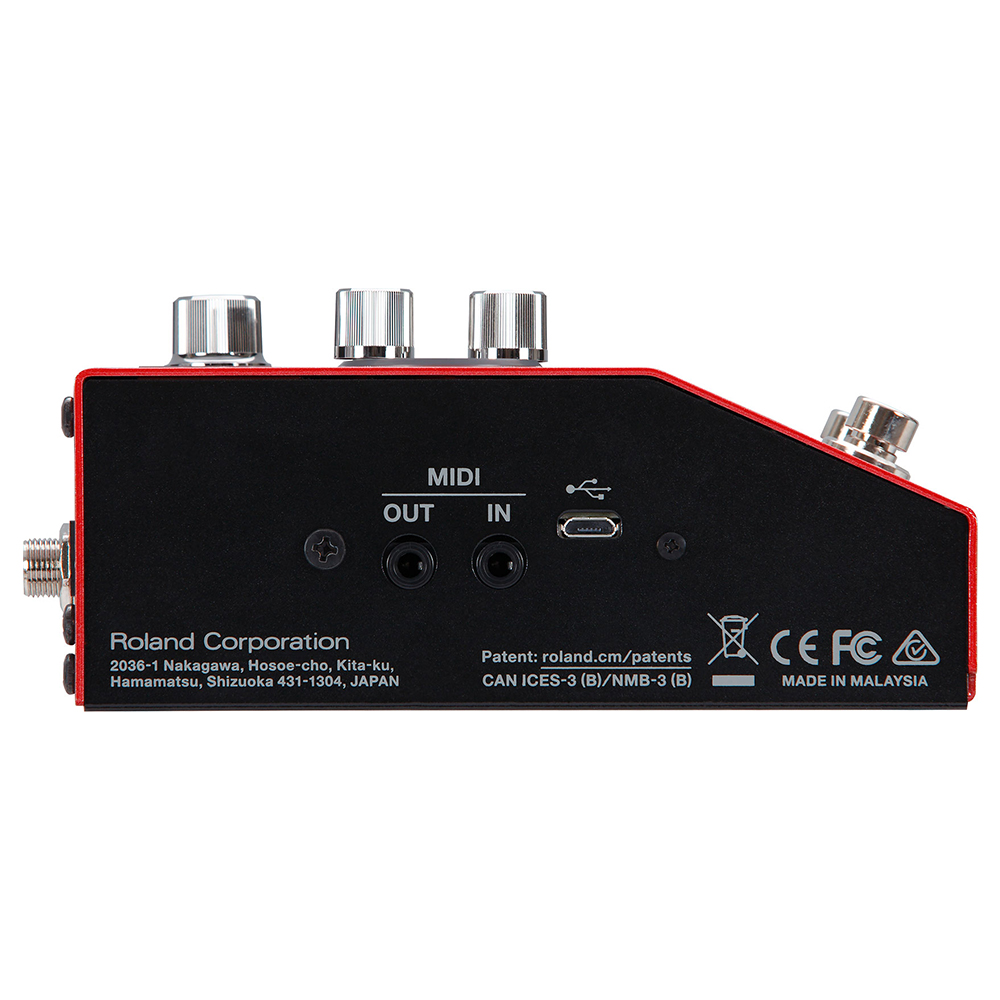

MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
USB COMPUTER port: USB micro B type
Power Supply AC adaptor
Current Draw 250 mA
SIZE AND WEIGHT
Width 101 mm
4 inches
Depth 138 mm
5-7/16 inches
Height (excluding rubber foot) 63 mm
2-1/2 inches
Height (including rubber foot) 65 mm
2-9/16 inches
Weight (excluding AC adaptor) 620 g
1 lbs 6 oz* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
From the manufacturer

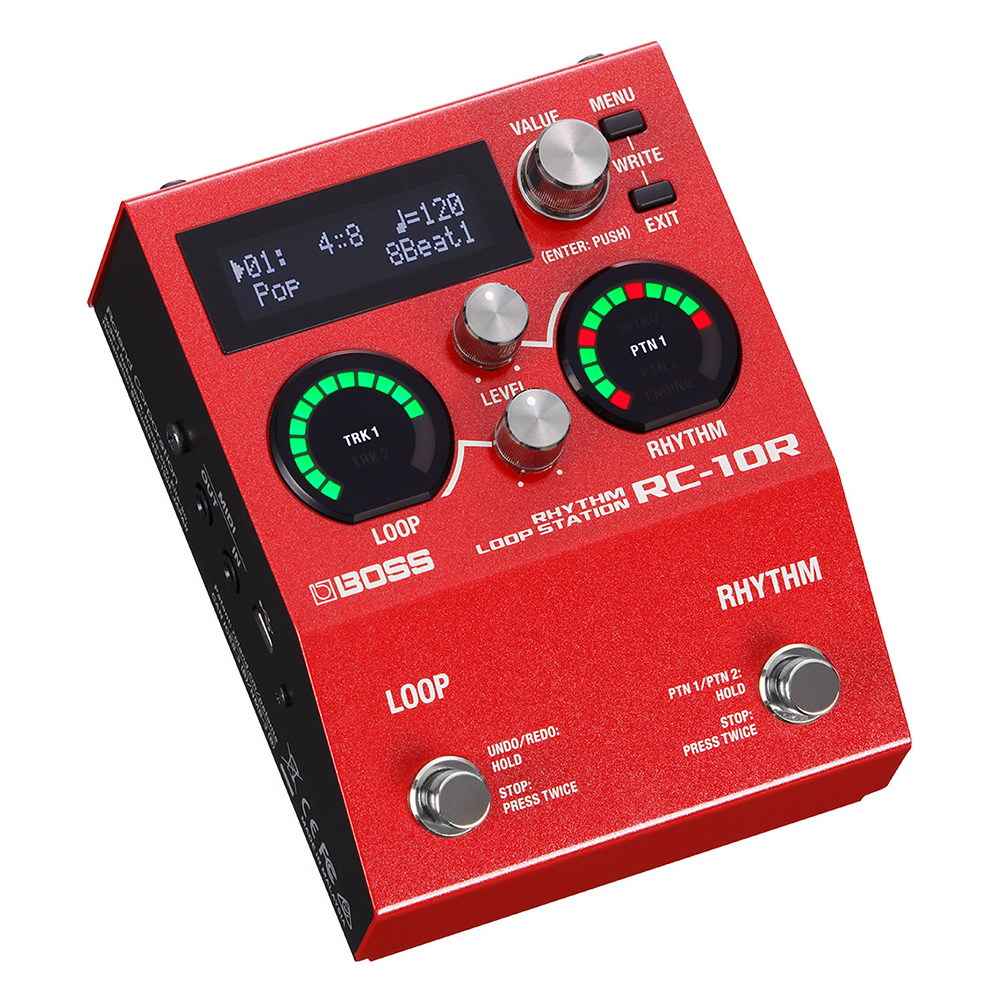

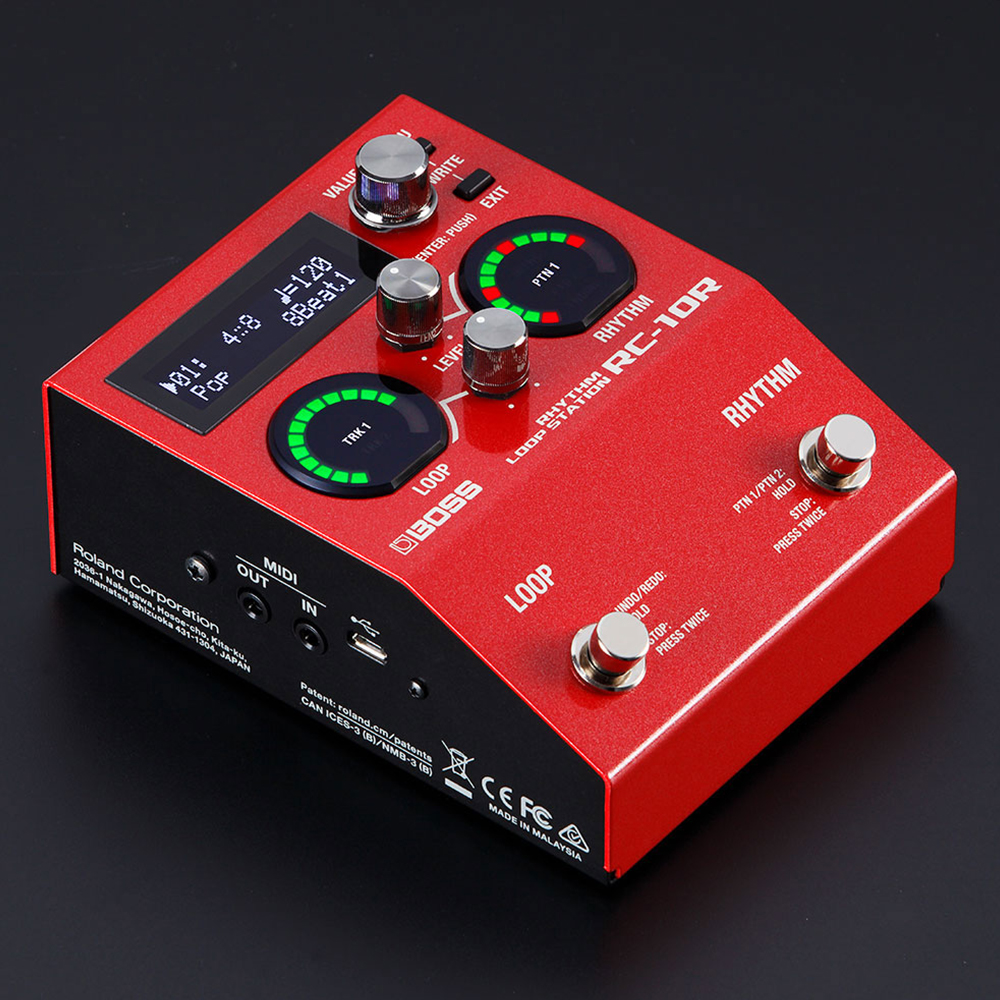

RC-10R Rhythm Loop Station
PERFORM AT THE SPEED OF INSPIRATION
Combining song-based looping and organic rhythms in a compact package, the RC-10R brings fresh inspiration to live performances, songwriting sessions, and daily practice. This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills. Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI. A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.
Inspiring the Looping Scene for Nearly 20 Years
Right now, somewhere in the world, a live musician is breaking the rules with a loop pedal. From headliners at Glastonbury to the hot-tip local songwriter at the open-mic night, the sheer possibilities of looping have attracted musical mavericks from every genre, each one of them twisting the concept to fit their own vision.
The buzz around looping has never been louder. But every revolution needs a flashpoint – after one million units sold, there's no doubt it was the BOSS RC Loop Station series that lit the fuse.
- Combine song-based looping and dynamic rhythms
- Stereo looper engine with six hours of recording time
- Over 280 preset rhythm styles
- Sixteen versatile drum kits
- Serial two-track operation
- Crystal clear sound quality thanks to studio grade AD/DA processing
- Selectable output filte
- Additional content via BOSS Tone Central
|
|
|
|
|
Adapts to Your Creative Approach
While the RC-10R’s loop and rhythm engines work together in complete harmony, they’re also designed to work just as well apart. You’re able to build two independent loops with no rhythmic backing at all, perfect for creating stripped-down song performances and evolving ambient soundscapes. It’s also possible to use the RC-10R as a foot-operated drum machine with real-time control over song sections and fills, making it an essential partner for stage accompaniment, jam sessions, and practice.
|
Expanded Control for Power Users
With its interactive displays and multi-function controls, the RC-10R is a standalone powerhouse. But some users crave even more control, and the RC-10R delivers. To start, there’s a jack for connecting up to two footswitches or an expression pedal, providing extended control of stop, undo/redo, loop volume, and other functions. Going further, full MIDI I/O is provided on space-saving mini TRS jacks, opening up a multitude of direct-access functions and sync options with other MIDI devices.
|
Class-Leading Looper Engine
BOSS Loop Stations are renowned for their great sound quality, and the RC-10R offers the best to date. Its loop recording engine features 32-bit AD/DA and 32-bit floating-point processing, providing audio performance that rivals the very best studio gear. And like all Loop Stations, it’s possible to keep the dry signal 100-percent analog to preserve your natural core tone. In addition the processor allows maximum clarity with multiple loop layers, keeping your each layer of your performance crystal clear.
|
Optimized Sound with Any Setup
Electric guitar and rhythm have different amplification needs—guitarists usually rely on their amp to color their sound, while a rhythm machine needs a clear, full-range system to sound its best. The RC-10R has you covered, allowing you to send the looper and rhythms to discrete outputs and separate amp systems. But in those situations when you can’t run two amps or just want a simpler setup, the RC-10R has a neat trick up its sleeve. With a variety of unique tone filters, you’re able to optimize the guitar and/or rhythm sound for amplification through a single system, whether it’s a guitar amp, PA system, or studio monitors.
|
