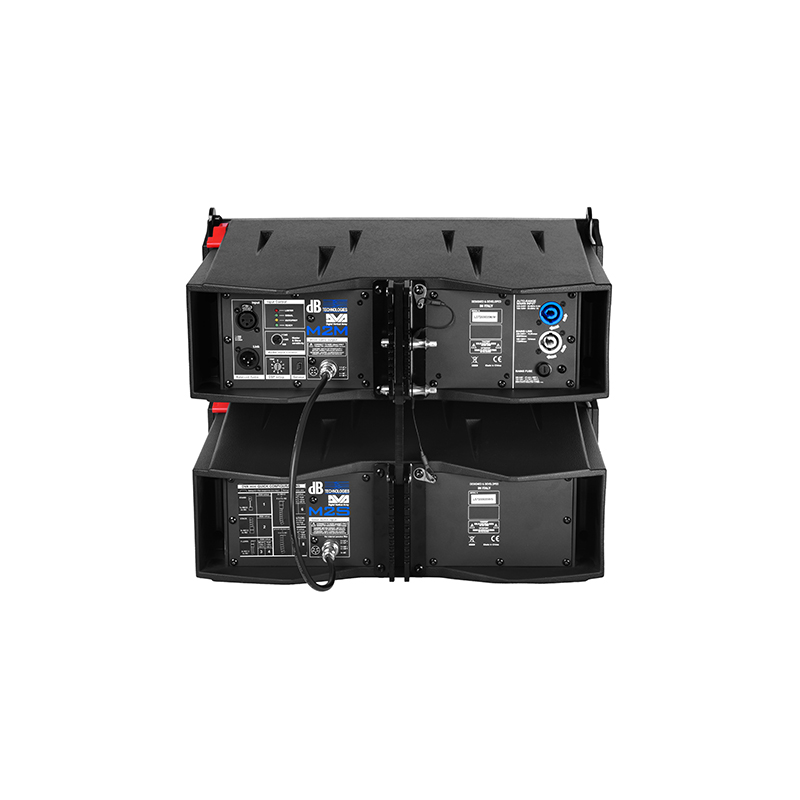

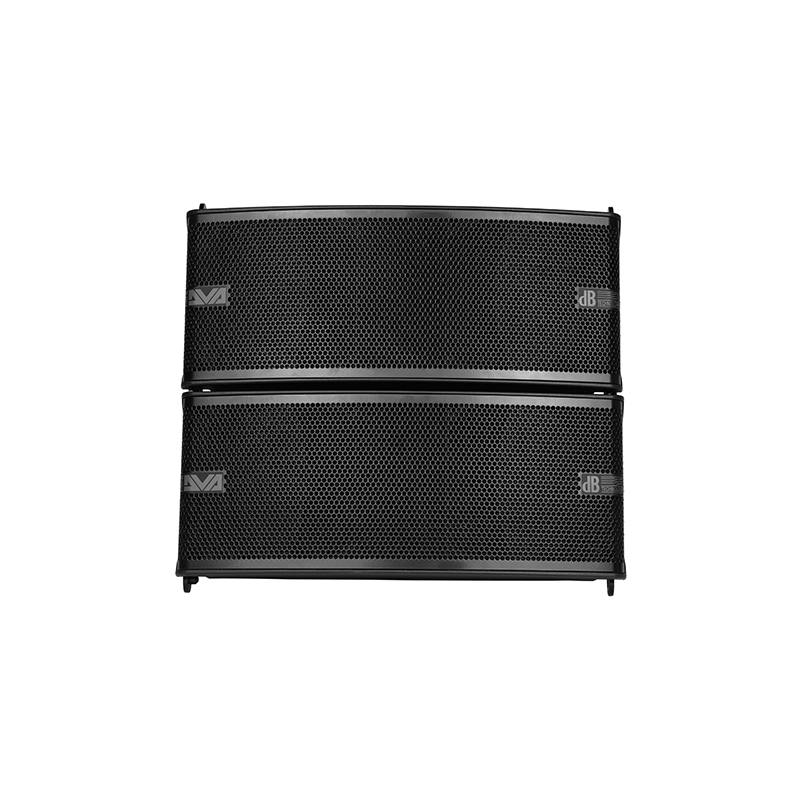

dB Technologies DVA M2M+ M2S (DVA MINI)

Technical Data

Speaker Type M2M

2-Way Active Master Line Array Module

Speaker Type M2S

2-Way Slave Line Array Module

Acoustical data

Frequency Response [-6dB]

78 - 19.000 Hz

Frequency Response [-10dB]

68 - 20.000 Hz

Max SPL

126 dB per unit

HF

2x1"

Type HF

Neodymium

Voice Coil HF

1"

LF

2x6.5"

Type LF

Neodymium

Voice Coil LF

1.5"

Directivity

90x15°

Amplifier

Amp Technology

Digipro® G3

Amp Class

Class D

RMS Power HF Amp

200 W (100 W + 100 W)

RMS Power LF Amp

200 W (100 W + 100 W)

Cooling

Convection

Processor

Controller

DSP 56 bit

AD/DA Converter

24 bit/48 kHz

System Presets

9 presets (8x HF and Low-Mid corrections and 1x for service use)

Limiter

Multiband, RMS/Peak, Thermal

Crossover Frequency LF-HF

1800 Hz

Slope LF-HF

24 dB/Octave

Input

Signal Input

1x XLR fem, Bal.

Signal Output

1x XLR male, Bal.

Power Supply

400W SMPS with PSU Auto-range (110V~ and 220V~)

Power Socket

1x PowerCon In 1x PowerCon Out

Signal Input M2S

1 Custom connector

Mechanics

Housing

Polypropylen PP

Handles

2x back side

Fittings

Integrated hardware with fast lock mechanics

Splay Angles

0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°

Width

460 mm (18.1 in)

Height

190 mm (7.5 in)

Depth

345 mm (13.6 in)

Weight M2M

7.6 kg (16.8 lbs)

Weight M2S

7.1 kg (15.7 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
