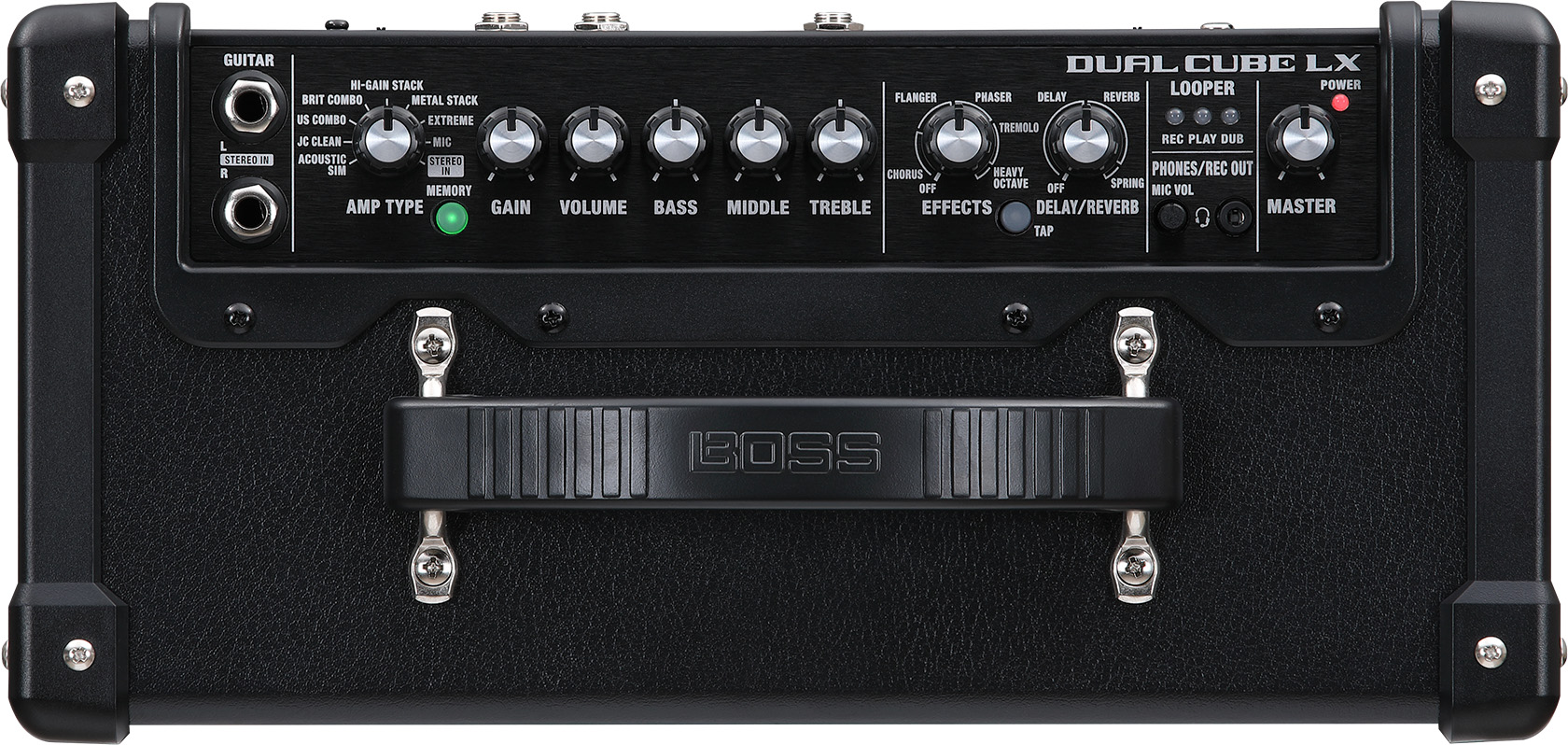

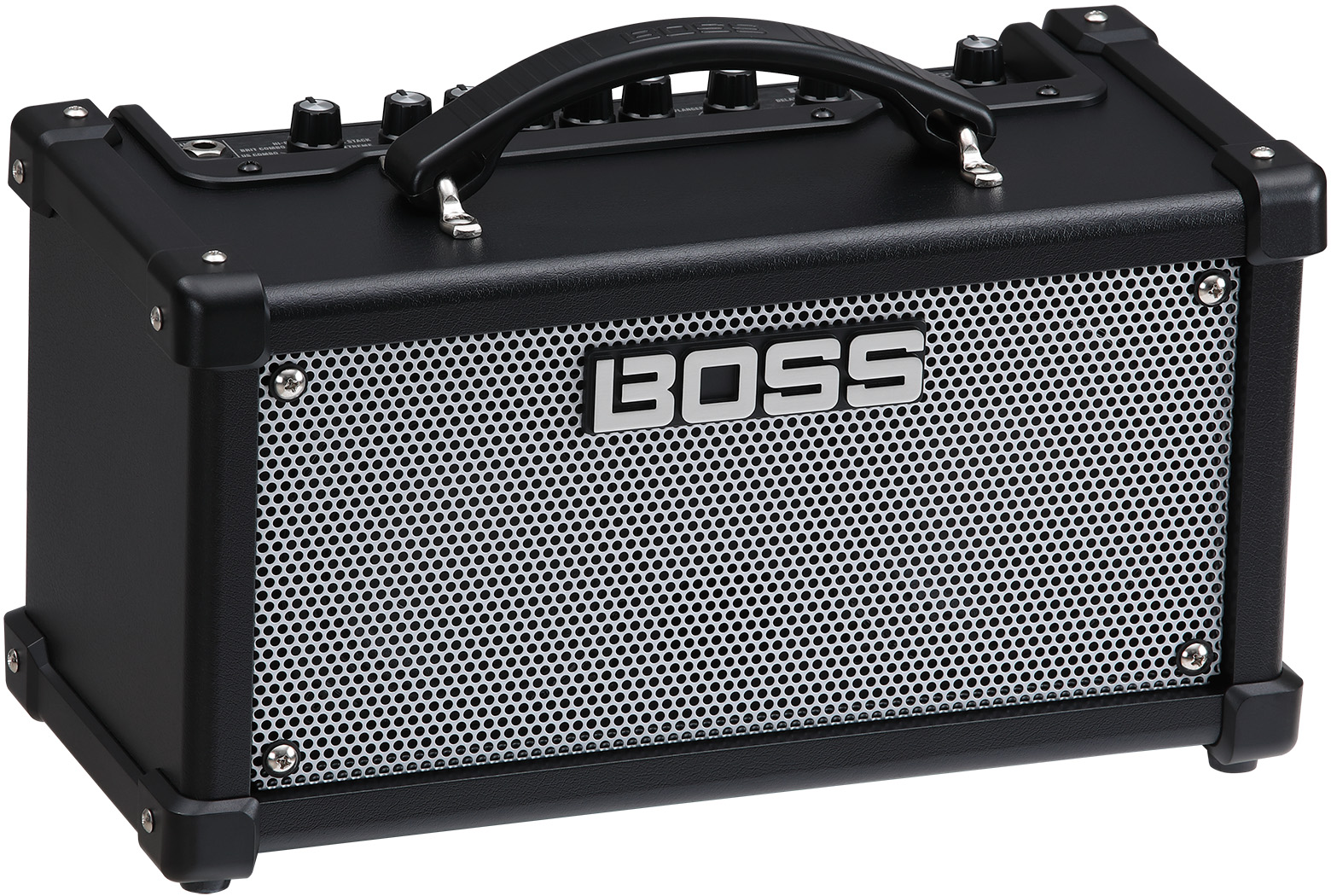

D-CUBE LX Guitar Amplifier Speaker

Rs. 31,114.00 Rs. 28,625.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here

Details

Standard Features

Ultra-portable stereo guitar amplifier with professional sound and features
Two custom-designed 4-inch speakers
10-watt stereo power amp (5 watts x 2)
Eight newly developed guitar amp types plus one mic preamp type
Seven onboard effects with deep editing via the DUAL CUBE LX Editor app
Stereo input mode with wide, immersive sound for modelers and stereo pedals
Three-band equalizer
Store amp and effects settings in 27 memories (3 memories for each amp type)
Powered via AC adaptor (included) or eight AA batteries
Stereo line output with mic’d cab emulation
Phones/Rec jack with support for an inline headphones microphone
USB audio for direct recording and livestreaming
Control jack for up to two external footswitches
i-CUBE Link/Aux In jack for audio playback
Selectable Loopback function for USB and i-CUBE Link/Aux In
Onboard looper (requires optional footswitch)
Connector for optional Bluetooth® Audio MIDI Dual Adaptor (BT-DUAL)

Description

SPECIFICATIONS

Rated Power Output

10 W (5 W+5 W)

Nominal Input Level

GUITAR/STEREO IN L, R: -10 dBu (1 M ohm)
i-CUBE LINK/AUX IN: -20 dBu (15 k ohm)

Nominal Output Level

LINE OUT L/MONO, R: -10 dBu

Speakers

10 cm (4 inches) x 2

Controls

POWER switch
AMP TYPE knob (ACOUSTIC SIM, JC CLEAN, US COMBO, BRIT COMBO, HI-GAIN STACK, METAL STACK, EXTREME, MIC, STEREO IN)
MEMORY button
GAIN knob
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
EFFECTS knob (CHORUS, FLANGER, PHASER, TREMOLO, HEAVY OCTAVE)
DELAY/REVERB knob (DELAY, REVERB, SPRING)
TAP button
MIC VOL knob
MASTER knob
LOOPBACK switch (i-CUBE LINK/AUX IN)
LOOPBACK switch (USB)

Indicators

POWER
MEMORY
TAP
REC
PLAY
DUB

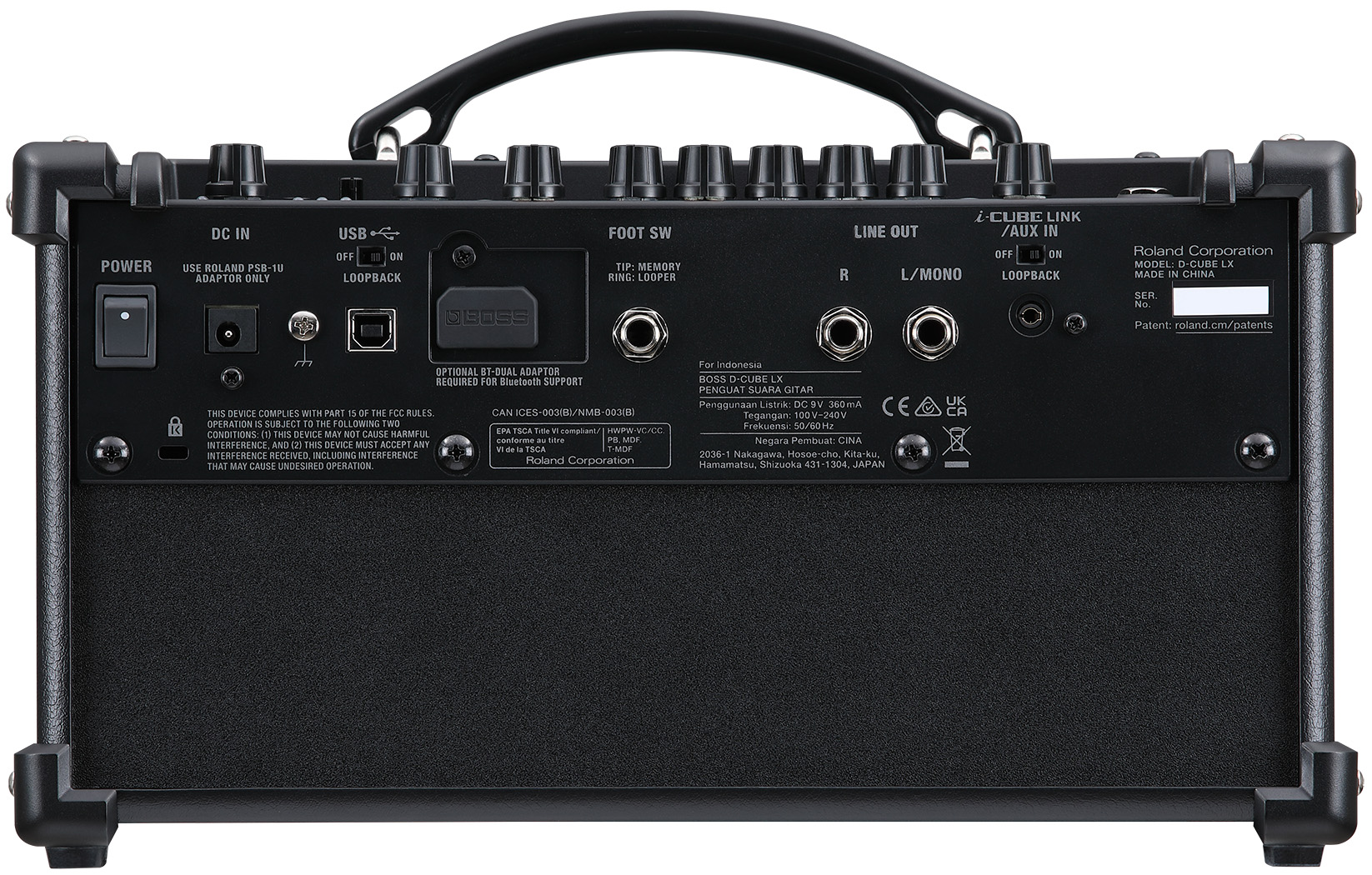

Connectors

GUITAR jack/STEREO IN L, R jacks: 1/4-inch phone type
PHONES/REC OUT jack: Stereo Miniature phone type (Stereo, CTIA)
i-CUBE LINK/AUX IN jack: Stereo Miniature phone type (Stereo, CTIA)
LINE OUT L/MONO, R jacks: 1/4-inch phone type
FOOT SW jack: 1/4-inch TRS phone type
Bluetooth ADAPTOR connector: Dedicated connector
USB port: USB B type
DC IN jack

Power Supply

AC adaptor (DC 9 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8

Current Draw

360 mA

Expected battery life under continuous use

Alkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1)

*1 When using batteries having a capacity of 2,500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Owner's Manual
Leaflet USING THE UNIT SAFELY
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)

Options (sold separately)

Footswitch: FS-5U, FS-6, FS-7
Bluetooth® Audio MIDI Dual Adaptor (MODEL BT-DUAL)
Wireless MIDI Expression Pedal: EV-1-WL
