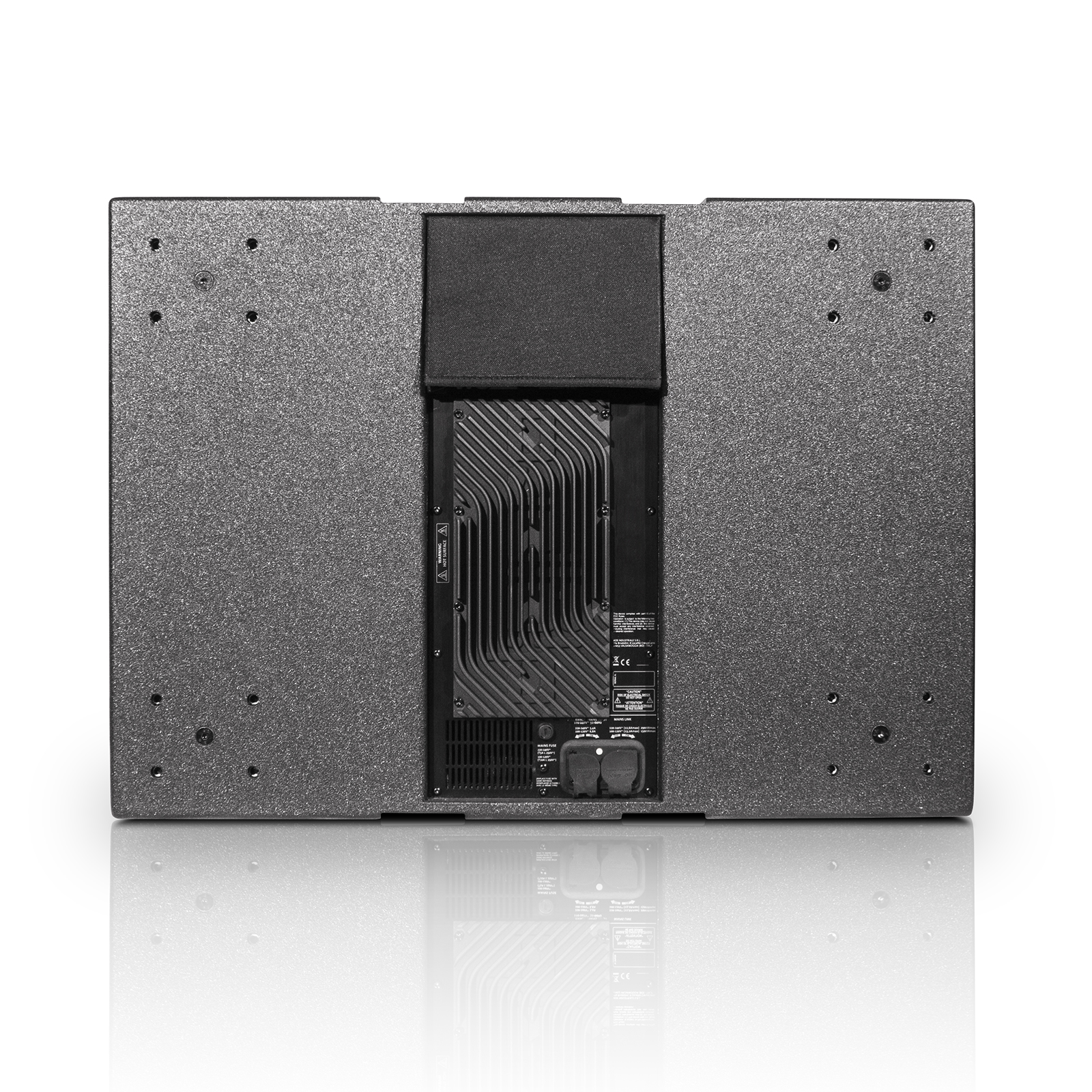

dB Technologies VIO S118R

Technical Data

Speaker Type

Active Bass Reflex Subwoofer

Acoustical data

Frequency Response [- 6 dB]

35 Hz to Cut Freq (X-Over Dependent)

Frequency Response [- 10 dB]

32 Hz

Max SPL

139 dB

LF

1x18"

Voice Coil LF

4 "

Directivity

Omnidirectional

Amplifier

Amp Technology

Digipro® G4

Amp Class

Class D

RMS Power

1600 W

Peak Power

3200 W

Cooling

Convection + Internal Fan

Power Supply

Full-range PSU with PFC

Processor

Controller

DSP 32 Bit

AD/DA Converter

24 bit 96 kHz

Limiter

RMS, Peak, Thermal

Delay Option

0- 9.9 ms | steps of 0.1 ms [on-board]
0 - 62 ms [via RDNet]

Crossover Frequency LF-HF

Selectable 60-110Hz + Full range

LF-Xover out slope

24 dB/Octave

Input

Signal Input

1xXLR balanced

Signal Output

1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)

Expansion Card

RDNet Card (1x RJ45 IN 1x RJ45 Link) [included]
Dante card [optional]

Mains Connections

1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out

Controls

1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test

Mechanics

Housing

Multiplex plywood
Polyurea painted

Handles

2x Per Side
Aluminium

Pole Mount

M20 Thread

Raincover

Included

Width

720 mm (28.34 in)

Height

520 mm (20.47 in)

Depth

695 mm (27.36 in)

Weight

47 kg (103.62 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
