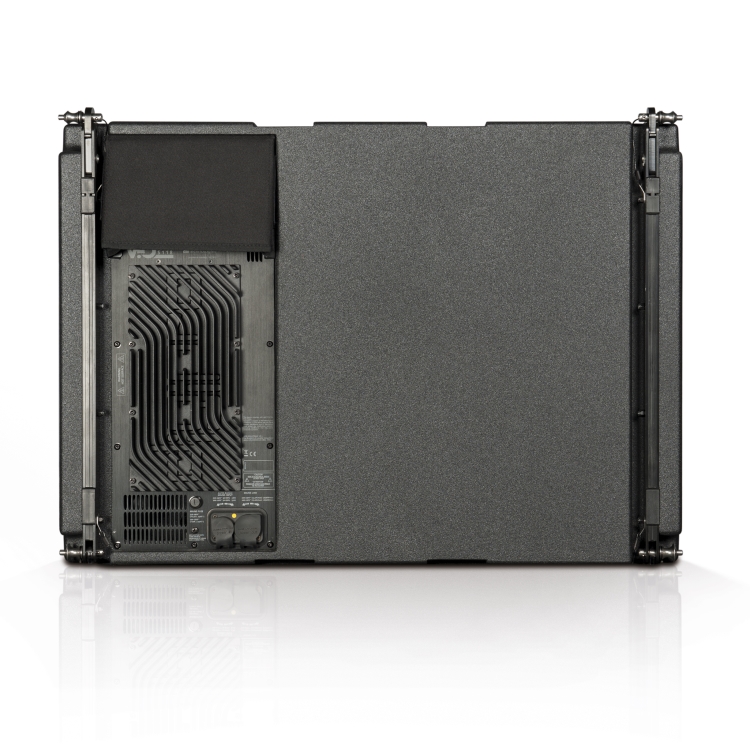

dB Technologies VIO S118

Technical Data

Speaker Type

Active Horn-Loaded Flyable Subwoofer

Acoustical data

Frequency Response [- 6 dB]

36 Hz to Cut Freq (X-Over Dependent)

Frequency Response [- 10 dB]

33 Hz (HPF)

Max SPL

139 dB

LF

1x18", Neodymium

Voice Coil LF

4 "

Directivity

Omnidirectional

Amplifier

Amp Technology

Digipro® G4

Amp Class

Class D

RMS Power

1600 W

Peak Power

3200 W

Cooling

Convection

Power Supply

1600 W with PFC

Processor

Controller

DSP 32

AD/DA Converter

24 bit 96 kHz

Limiter

RMS, Peak, Thermal

Delay Option

0-9.9 ms internal
Steps of 0.1 ms

Crossover Frequency LF-HF

60-110Hz + Full range

LF-Xover out slope

24 dB/Octave

Input

Signal Input

1xXLR balanced

Signal Output

1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)

Expansion Card

1xRJ45 IN (RDNet)
1xRJ45 LINK (RDNet)

Power Socket

1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT

Controls

1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test

Mechanics

Housing

Multiplex plywood
Polyurea painted

Handles

2x Per Side
Aluminium

Pole Mount

M20 Thread

Raincover

Included

Rigging Points

2xPick Points on top to fix DRK-210 rigging frame (stack use)
4x Pick Points on top and 4x on bottom for rigging

Width

720 mm (28.34 in)

Height

520 mm (20.47 in)

Depth

695 mm (27.36 in)

Weight

45.1 kg (99.42 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
