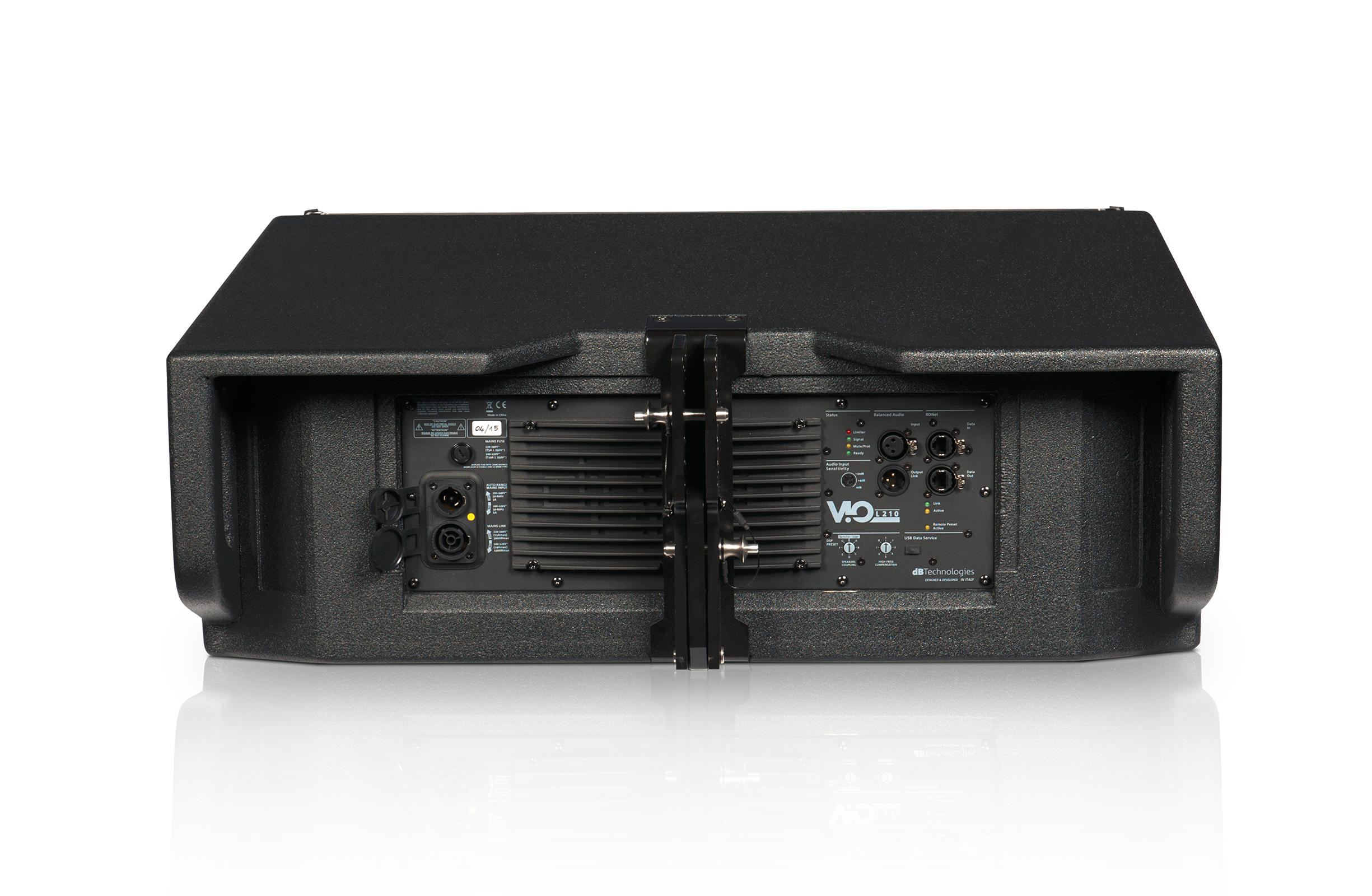

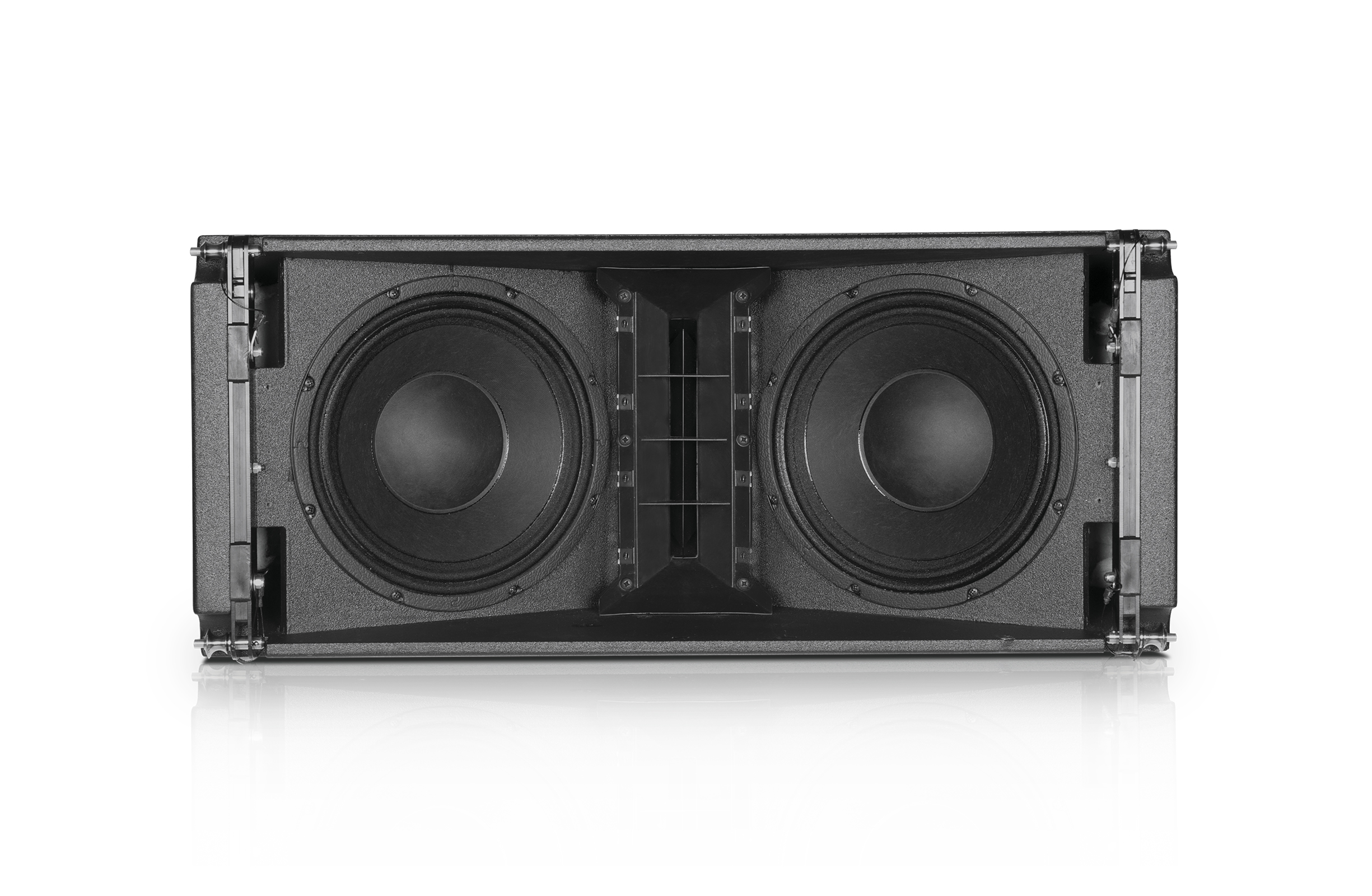

dB Technologies VIO L210
Inclusive of all GST
Technical Data
Speaker Type
2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB]
67-20,000 Hz
Frequency Response [+/- 3dB]
78-18,100 Hz
Max SPL
135 dB
HF
1x1.4"
Voice Coil HF
3"
Type HF
Neodymium, Titanium Diaphragm
LF
2x10"
Voice Coil LF
2.5"
Type LF
Neodymium Aluminium Phase Plug
Horizontal Directivity
100°
Vertical Directivity
depends on array size and configuration
Amplifier
Amp Technology
Digipro G3 [bi-amped]
Amp Class
Class-D
Power RMS
900 W
Peak Power
1800 W
Cooling
Convection
Power Supply
900 W SMPS with Auto-range PSU
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 KHz
Limiter
Dual Active Multiband Peak, RMS, Thermal
Processing (filters)
FIR Linear Phase
Crossover Frequency LF-HF
950 Hz
Slope LF-HF
24 dB/Octave
Input
Signal Input
1xXLR fem, Bal.
Signal Output
1xXLR male, Bal.
Network
RDNet remote control RJ45 connector IN/OUT
Power Socket
1xPowerCon TRUE1 IN
1xPowerCon TRUE1 Out
Controls
1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets)
1XInput Attenuation Rotary Switch
Mechanics
Housing
Multiplex Plywood
Polyurea painted
Housing Design
Trapezoidal 10°
Handles
2x side
Rain Cover
Included
Rigging Points
Integrated rigging hardware
Width
720 mm (28.35 in)
Height
320 mm (12.6 in)
Depth
520 mm (20.47 in)
Weight
28.6 Kg (63.00 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
