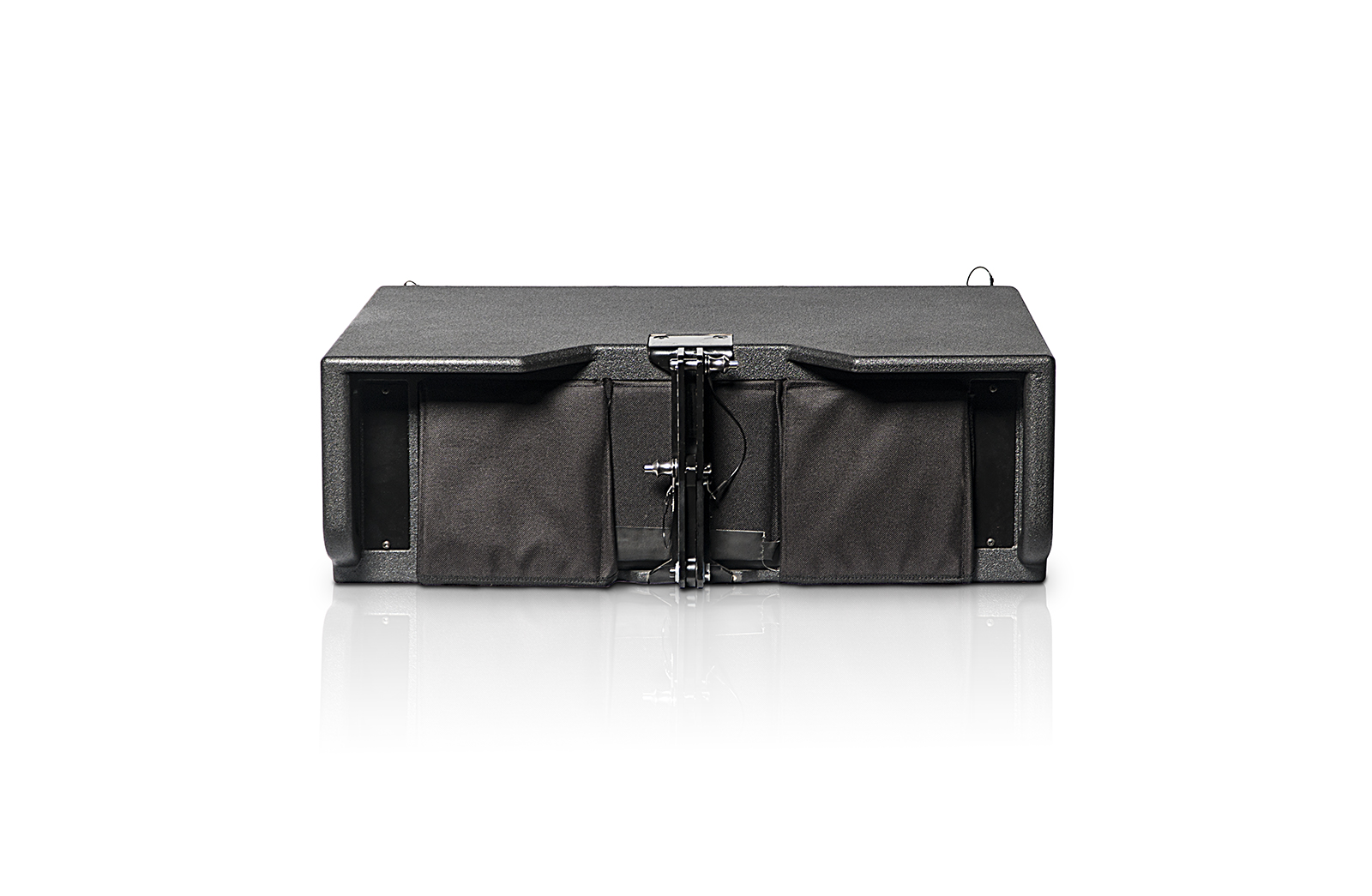

dB Technologies VIO L208

Technical Data

Speaker Type

2-way Active Line Array Module

Acoustical data

Usable Bandwidth [- 6 dB]

75 Hz - 20 KHz

Frequency Response [+/- 3dB]

85 Hz -18,1 KHz

Max SPL

133.5 dB

HF

1x1.4"

Voice Coil HF

3"

Type HF

Neodymium

LF

2x8"

Voice Coil LF

2"

Type LF

Neodymium

Horizontal Directivity

100°

Vertical Directivity

depends on array size and configuration

Amplifier

Amp Technology

Digipro G3 [bi-amped]

Amp Class

Class-D

Power RMS

900 W

Peak Power

1800 W

Cooling

Convection

Power Supply

900 W SMPS with Auto-range PSU

Processor

Controller

DSP 28/56 bit

AD/DA Converter

24 bit/48 KHz

Limiter

Dual Active Peak, RMS, Thermal

Processing (filters)

FIR Linear Phase Filters

Crossover Frequency LF-HF

1000 Hz

Input

Signal Input

1xXLR fem, Bal.

Signal Output

1xXLR male, Bal.

Network

RDNet remote control RJ45 connector IN/OUT

Mains Connections

1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out

Controls

1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets)
1XInput Attenuation Rotary Switch

Mechanics

Housing

Multiplex Plywood
Polyurea painted

Handles

1 x Side, 2 on back

Rain Cover

Included

Rigging Points

Integrated 3-point flying hardware

Width

600 mm (25.98 in)

Height

260 mm (10.23 in)

Depth

390 mm (15.35 in)

Weight

18.1 Kg (39.9 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
