V-8 Eight-Channel Video Mixer with Effects

Rs. 163,788.00 Rs. 38,000.00

Inclusive of all GST

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here
Details

VIDEO MIXER SPECIFICATIONS

Video Format

Video: NTSC or PAL (ITU601) PC-RGB: 640 x 480/120 Hz, 800 x 600/120 Hz, 832 x 624/75 Hz,
1024 x 768/80 Hz, 1152 x 864/80 Hz, 1152 x 870/75 Hz,
1280 x 1024/75 Hz, 1600 x 1200/60 Hz (RGB VH: positive/negative logic)
* VESA DMT Version 1.0 Revision 10 conform.
* The refresh rate is the maximum value of each resolution.

Video Sampling Rate

Video: 4:2:2 (Y:B-Y:R-Y), 8-bit, 13.5 MHz

Frame Synchronizer

2 systems

Input Level and Impedance

Video (composite): 1.0 Vp-p, 75 ohms
S-video: 1.0 Vp-p, 75 ohms
0.286 Vp-p,
75 ohms (NTSC) / 0.3 Vp-p,
75 ohms (PAL)
PC-RGB: 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)

Output Level and Impedance

Video (composite): 1.0 Vp-p, 75 ohms
S-video: 0 Vp-p, 75 ohms
0.286 Vp-p,
75 ohms (NTSC) / 0.3 Vp-p,
75 ohms (PAL)

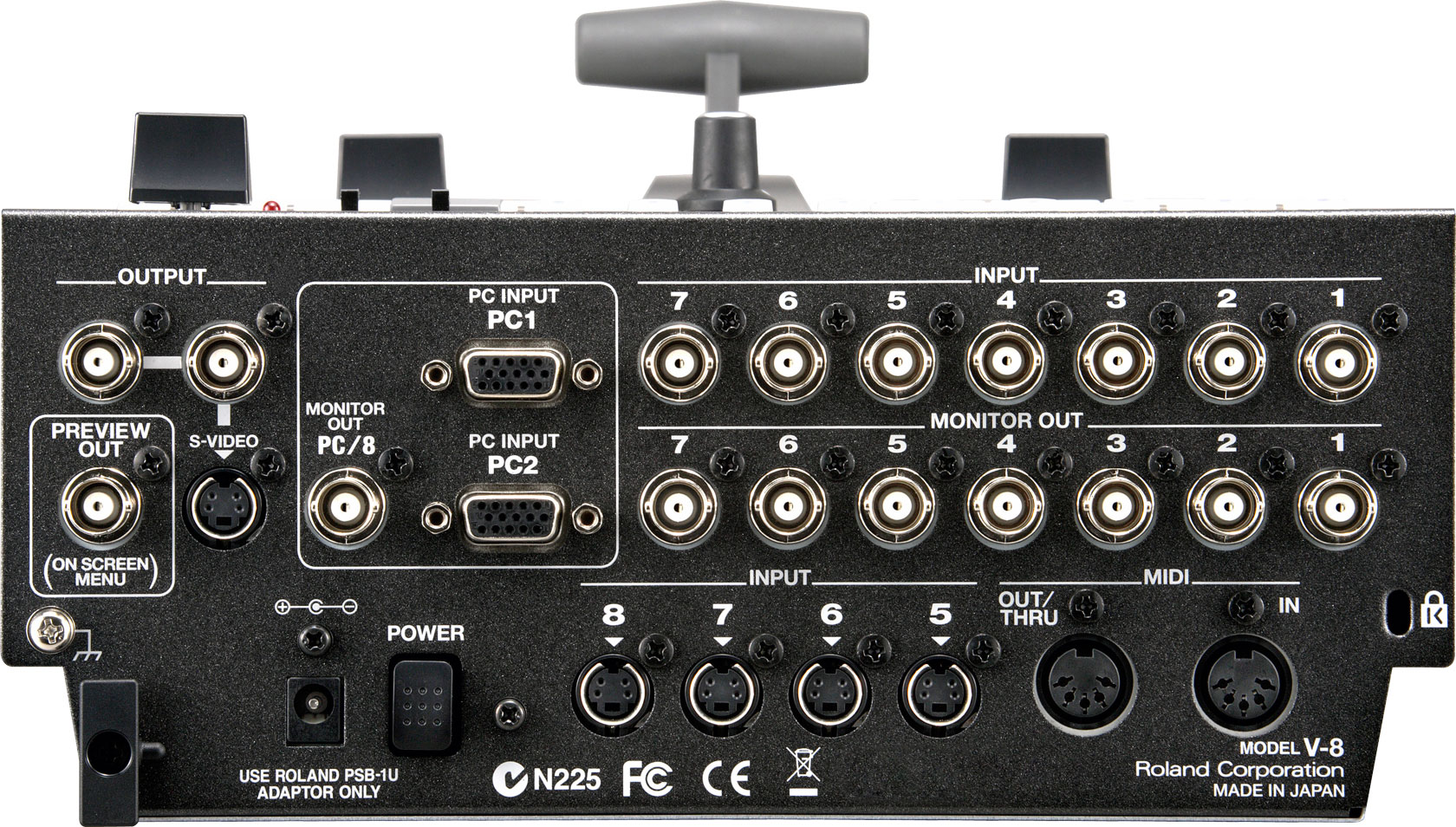

Connectors

Input
Video (composite): BNC type x 7 (Ch 1 - 7)
S-video: 4-pin mini DIN type x 4 (Ch 5 - 8)
PC-RGB: D-SUB 15pin Shrink Type x 2 (Ch8: PC1 / PC2)
* Inputs 5 - 8; however if S-video is simultaneously input to 5-8,
S-video takes priority
Output
Video (composite): BNC type x 2, S-video: 4-pin mini DIN type x 1
Preview Output
Video (composite): BNC type x 1 (OSD Menu)
Monitor Output
Video (composite): BNC type x 8 (Ch 1 - 8)

Remote Control Interfaces

MIDI IN: 5-pin DIN type x 1,
MIDI OUT/THRU: 5-pin DIN type x 1

Transition effects (more than 200 types)

Mix (Dissolve, Non-Additive Mix : NAM, Full-Additive Mix : FAM),
Wipe (Hard edge wipe, Soft edge wipe),
Key, Slide, Stretch, User Transition

Video effects

Still, Strobe, Afterimage, Feedback, Shake, Negative, Colorize,
Find Edge, Silhouette, Mono Color, Emboss, Posterize, Color Pass,
Luminance key, Chroma key, Flip, Multi, Mirror, Picture-in-picture

Power Supply

DC 9 V (AC Adaptor: Roland PSB-1U)

Current Draw

2 A (Preliminary, AC Adaptor PSB-1U 0.4A)

Accessories

AC Adaptor, Power Cord, BNC to RCA video adapter x 4,
mount screw for Video fader x 4, Owner's Manual

Options

Cross Fader: V-4CF

SIZE AND WEIGHT

Dimensions

238 (W) x 315 (D) x 134 (H) mm
(9-3/8 (W) x 12-7/16 (D) x 5-5/16 (H) inches)

Weight

3.2 kg (7 lbs 1 oz)
