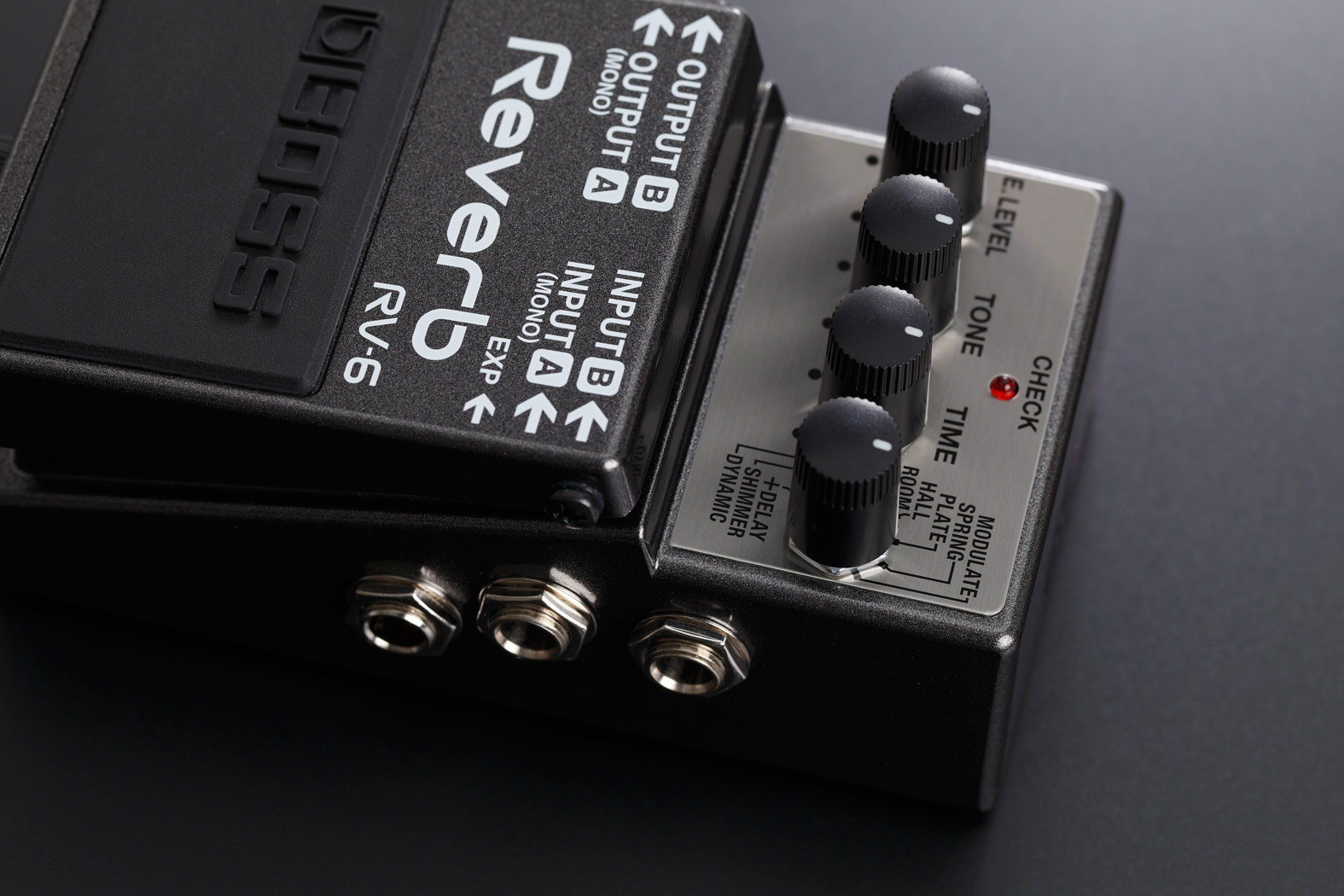

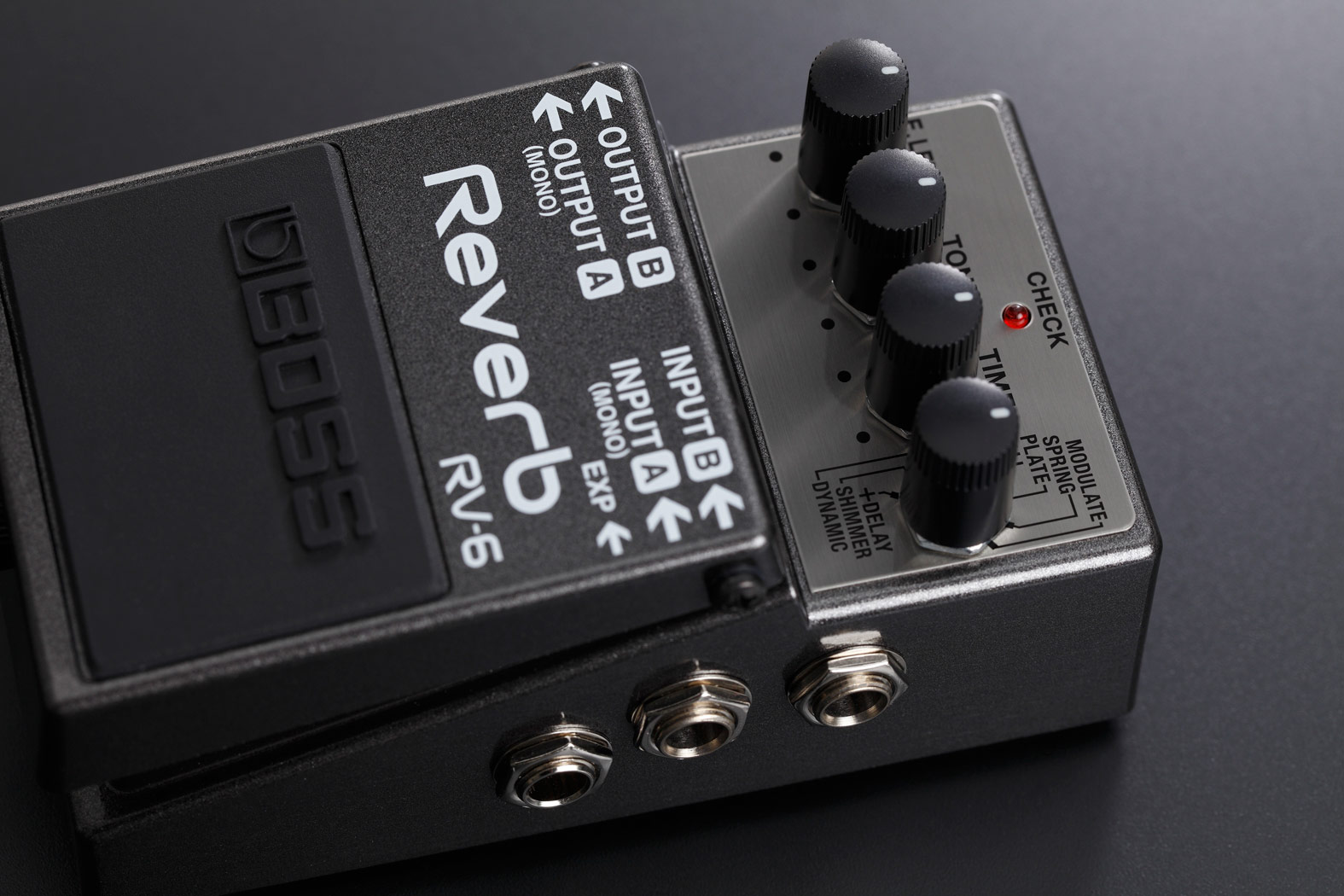

RV-6 Reverb

Description

INFINITE INSPIRATION, READY TO PLAY

Combining high-end sound and wide-ranging versatility, the RV-6 takes pedal-based reverb to the next level. Reaching beyond the capabilities of previous generations, this powerful stomp employs the latest tech and legendary BOSS know-how to make it easy to get amazing reverb tones instantly. From subtle rooms to modern shimmer effects to long, evocative reverbs, the RV-6 envelops your tone in lush ambient spaces that endlessly inspire.

SPECIFICATIONS

Reverb Modes                                  8 modes

HALL

PLATE

ROOM

SPRING

MODULATE

+DELAY

SHIMMER

DYNAMIC

Nominal Input Level                          -20 dBu

Input Impedance                               1 M ohm

Nominal Output Level                        -20 dBu

Output Impedance                            1 k ohm

Recommended Load Impedance         10 k ohms or greater

Controls                                          Pedal switch

E.LEVEL knob

TONE knob

TIME knob

MODE knob

Indicator                                       CHECK indicator (Serves also as battery check indicator)

Connectors                                    INPUT-A (MONO) jack

INPUT-B jack

OUTPUT-A (MONO) jack

OUTPUT-B jack

EXP jack

AC adaptor jack                               (DC 9 V)

Power Supply                                   Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)

AC adaptor                                      (sold separately)

Current Draw                                   65 mA

SIZE AND WEIGHT

Width                                              73 mm (2-7/8 inches)

Depth                                              129 mm (5-1/8 inches)

Height                                             59 mm (2-3/8 inches)

Weight (including battery)               450 g

1 lb* 0 dBu = 0.775 Vrms
