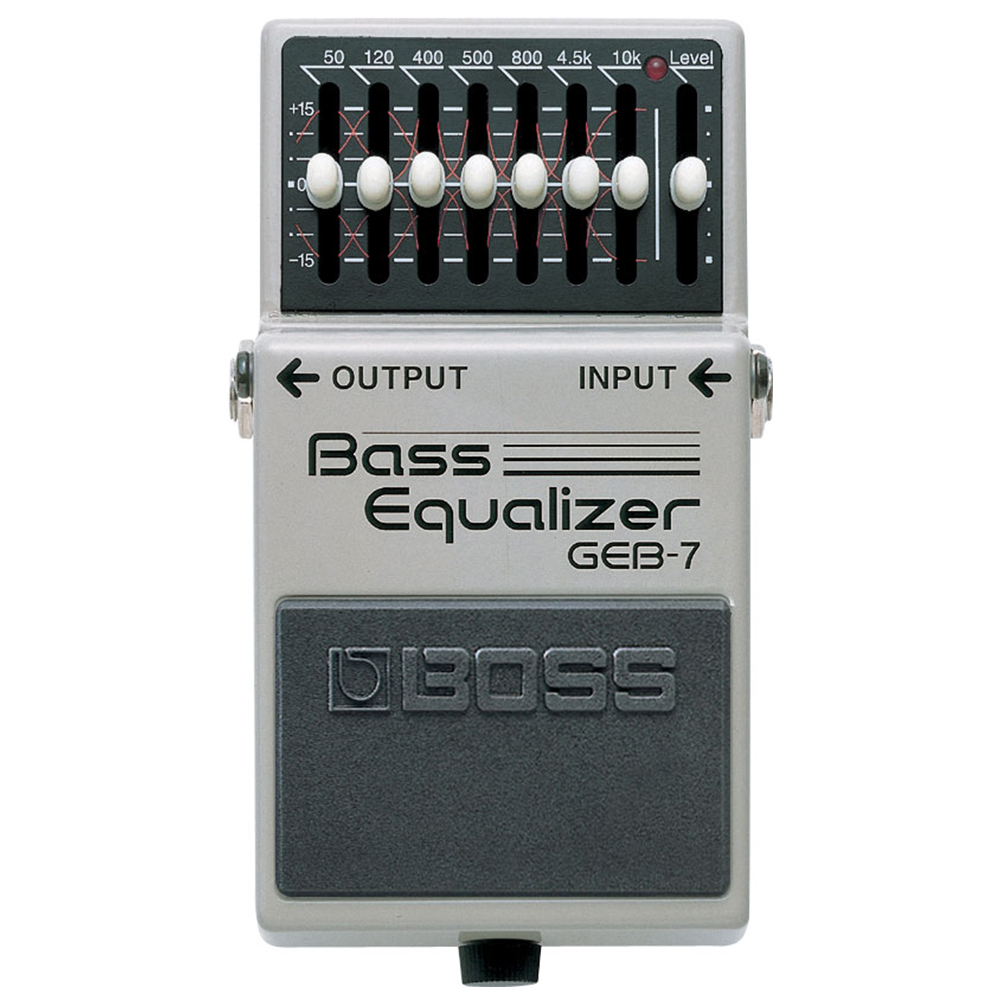

GEB-7 Bass Equalizer

Description



• 50Hz to 10kHz frequency range specifically designed for bass
• Full range response, even for five- and six-string basses
• Can be used as a "boost" or "cut" pedal using the level control knob
• Great for eletric-acoustic bass applications
• AC adaptor or 9V battery operation
• BOSS five-year warranty



Nominal Input Level                            -20 dBu

Input Impedance                                1 M ohm

Nominal Output Level                         -20 dBu

Output Impedance                             1 k ohm

Recommended Load Impedance         10 k ohm or greater

Bypass                                              Buffered bypass

Controls                                            Level Control knob

Equalizer Control knob

50, 120, 400, 500, 800, 4.5 k, 10 kHz

Pedal switch

Indicator                                            CHECK indicator (Serves also as battery check indicator)

Connectors                                        INPUT jack: 1/4-inch phone type

OUTPUT jack: 1/4-inch phone type

DC IN jack

Power Supply                                     Carbon-zinc battery (9 V, 6F22) Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)

Current Draw                                     16 mA

Accessories                                       Owner's Manual

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Carbon-zinc battery (9 V, 6F22)



SIZE AND WEIGHT

Width                                                 73 mm

2-7/8 inches

Depth                                                129 mm

5-1/8 inches

Height                                               59 mm

2-3/8 inches

Weight (including battery)                  440 g

1 lb* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.









From the manufacturer

GEB-7 Bass Equalizer

PRECISE TONAL CONTROL

The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.

Description:-

With a frequency range from 50Hz to 10kHz, the GEB-7 is ideal for any bass guitar, including 5-string basses. Seven bands of EQ are available, affording greater control over the crucial midrange.

Features:-

• 50Hz to 10kHz frequency range specifically designed for bass
• Full range response, even for five- and six-string basses
• Can be used as a "boost" or "cut" pedal using the level control knob
• Great for eletric-acoustic bass applications
• AC adaptor or 9V battery operation
•

Specification

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohm or greater
Bypass	Buffered bypass
Controls	Level Control knob Equalizer Control knob 50, 120, 400, 500, 800, 4.5 k, 10 kHz Pedal switch
Indicator	CHECK indicator (Serves also as battery check indicator)
Connectors	INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
Power Supply	Carbon-zinc battery (9 V, 6F22) Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	30 mA
Expected battery life underuse	Carbon: Approx. 8.5 hours Alkaline: Approx. 18.5 hours *These figures will vary depending on the actual conditions of use.
Accessories	Owner's Manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Options (sold separately)	AC adaptor: PSA series
