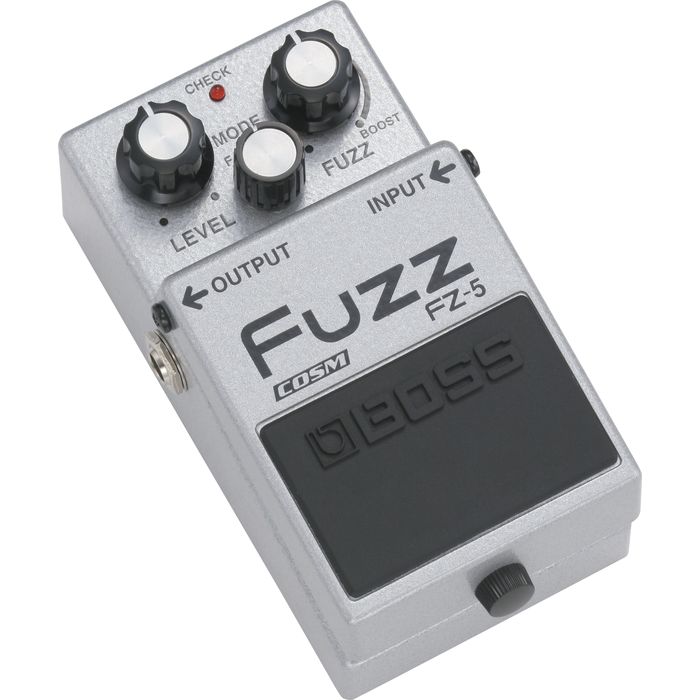

A DISTORTED BLAST FROM THE PAST
The FZ-5 is a modern pedal built for the modern guitarist, but the sounds you can get from the FZ-5 are pure retro. Looking back at the glorious rock sounds of the ’60s and ’70s, the FZ-5 recreates its vintage fuzz through BOSS state-of-the-art COSM technology. The FZ-5 is the perfect weapon for players wanting to beef up their rigs with classic retro fuzz artillery.
SPECIFICATIONS
Nominal Input Level -20 dBu
Input Impedance 1 M ohm
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Controls Pedal switch, LEVEL knob, FUZZ knob, MODE knob
Indicator CHECK indicator (Serves also as battery check indicator)
Connectors INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)Power SupplyDC 9 V, Dry battery 6F22 (9 V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline)
Current Draw36 mA (DC 9 V)
Accessories Owner's Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), MODE sticker, Dry Battery 006P/9V (6LR61)
SIZE AND WEIGHT
Width 73 mm
2-7/8 inches
Depth 129 mm
5-1/8 inches
Height 59 mm
2-3/8 inches
Weight 440 g
1 lbs.
