Zoom F6 Field Recorder

Rs. 64,258.00 Rs. 54,275.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here

Details

FEATURES

6-channel/14-track field audio recorder/mixer
6 discrete inputs with locking Neutrik XLR connectors
High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
Switchable +4dB inputs with mic/line options
Advanced Look-Ahead Hybrid Limiters

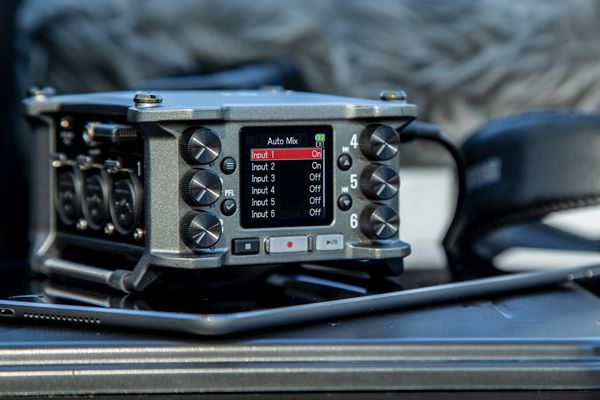

Zoom AutoMix™ software
Accurate Time Code (0.2 ppm when on and when powered off) I/O on 3.5mm stereo mini; dropframe/non-drop formats with Jam Sync
Three different power supply options: 4x AA batteries, Sony L-Series batteries, or Zoom AD-17 12V AC Adapter (L-Series batteries not included)
3.5mm stereo mini unbalanced output jack
Dedicated headphone output (100 mW) with volume control SD/SDHC/SDXC card slot, up to 512 GB
Use as an 6-in/4-out USB audio interface (up to 96kHz)
Use as an audio interface and record to SD card simultaneously (up to 48kHz)
Free Zoom F Control App for iOS allows wireless remote control, file renaming, and metadata entry

SD CARDS, SDHC CARDS, SDXC CARDS (THAT CONFORM TO STANDARDS)

INPUTS 1–6:	Connectors XLR jack (pin 2 hot)
INPUT (MIC):	Input gain +12 dB - +75 dB
	Input impedance 3 kΩ or more
	Maximum input level +4 dBu
INPUT (LINE):	Input gain −8 dB - +55 dB
	Input impedance 5 kΩ or more
	Maximum input level +24 dBu
PHANTOM POWER:	+24/+48V 10mA maximum for each channel
EQUIVALENT INPUT NOISE:	−127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)

LINE OUTPUT:	Connectors 3.5 mm stereo mini unbalanced output
	Output impedance 100 Ω or less
	Reference output level –10 dBV, 1 kHz, 10 kΩ load
	Maximum output level +10 dBV, 1 kHz, 10 kΩ load
	D/A dynamic range 95 dB typ (−60dBFS input, A-weighted)
HEADPHONE OUTPUT:	Connector 3.5 mm stereo mini unbalanced output
	Output impedance 15 Ω or less
	Maximum output level 100 mW + 100 mW (32Ω load)
	D/A dynamic range 108 dB typ (−60dBFS input, A-weighted)

WHEN WAV SELECTED:
SUPPORTED FORMATS:	44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit/32-bit float,
	mono/stereo/2-8ch poly, BWF/iXML
MAXIMUM SIMULTANEOUS RECORDING TRACKS:	14 (6 inputs x 2 (Linear and Floating) + LR mix)
	6 (6 inputs (Linear or Floating) at Float(32bit) Mode, 192 kHz)
WHEN MP3 SELECTED:
SUPPORTED FORMATS:	128/192/320 kbps, 44.1/48 kHz, ID3v1 tags
MAXIMUM SIMULTANEOUS RECORDING TRACKS:	2

USING A 32 GB CARD:	30:46:00 (48 kHz/24-bit stereo WAV)
	7:41:00 (192 kHz/24-bit stereo WAV)

CONNECTORS:	3.5 mm stereo mini (Tip: IN, Ring: OUT)
MODES:	Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec
	(audio clock can be synchronized to timecode)
FRAME RATES:	23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D
PRECISION:	±0.2 ppm
ALLOWED INPUT LEVEL:	0.2 – 5.0 Vpp
ALLOWED INPUT IMPEDANCE:	4.6 kΩ
OUTPUT LEVEL:	3.3 Vpp
OUTPUT IMPEDANCE:	50 Ω or less

OPTIONS:	AC adapter : DC 5V (supports USB bus power)
	Sony® L-Series battery
	4 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
CONTINUOUS RECORDING TIME:
48 KHZ/16-BIT 2CH RECORDING TO SD CARD (LINE OUT OFF, TIMECODE OFF, LED/LCD BRIGHTNESS 5, HEADPHONES INTO 32Ω LOAD, PHANTOM OFF):	Alkaline batteries 7.5 hours or more
	NiMH batteries
	(2450 mAh)
	10.5 hours or more
	Lithium batteries 16.5 hours or more
48 KHZ/24-BIT 6CH RECORDING TO SD CARD (LINE OUT OFF, TIMECODE OFF, LED/LCD BRIGHTNESS 5, HEADPHONES INTO 32Ω LOAD, PHANTOM OFF):	Alkaline batteries 5.0 hours or more
	NiMH batteries
	(2450 mAh)
	7.0 hours or more
	Lithium batteries 10.5 hours or more
192 KHZ/24-BIT 6CH RECORDING TO SD CARD (LINE OUT ON, TIME CODE SET TO INT FREE RUN, LED/LCD BRIGHTNESS 60, HEADPHONES INTO 32Ω LOAD, PHANTOM AT 48 V):	Alkaline batteries 0.5 hours or more
	NiMH batteries (2450
	mAh)
	1.5 hours or more
	Lithium batteries 3.5 hours or more

1.54" full-color LCD (240 × 240)

MASS STORAGE OPERATION:	Class USB 2.0 High Speed
MULTITRACK AUDIO INTERFACE OPERATION (DRIVER REQUIRED FOR WINDOWS, NO DRIVER REQUIRED FOR MACOS):	Class USB 2.0 High Speed
	Specifications Sampling rate 44.1/48/88.2/96 kHz
	Bit Rate 16/24-bit
	Channels 6 in/4 out
STEREO MIX AUDIO INTERFACE OPERATION (NO DRIVER REQUIRED):	Class USB 2.0 Full Speed
	Specifications Sampling rate 44.1/48 kHz
	Bit Rate 16-bit
	Channels 2 in/2 out
	Note: iOS device audio interface operation supported (stereo mode only)
AIF WITH REC OPERATION (DRIVER REQUIRED FOR WINDOWS, NO DRIVER REQUIRED FOR MACOS):	Class USB 2.0 High Speed
	Specifications Sampling rate 44.1/48 kHz
	Bit Rate 16/24-bit
	Channels 8 in/4 out
