Description
INNOVATIVE HYBRID CAJON WITH BUILT-IN ELECTRONIC SOUNDS
Unique and versatile, the ELCajon EC-10 allows cajon players to easily enhance their music with layered electronic sounds. To start, the EC-10 is an authentic acoustic cajon that sounds great on its own. What’s more, it has Roland’s renowned electronic percussion technology built in, letting you blend a range of complementary sounds with the cajon voice, from traditional percussion like tambourine and shaker to acoustic snare, electronic drums, sound effects, and more. Completely self-contained with battery power and onboard amplification, the ELCajon EC-10 puts the dynamic world of hybrid percussion in the hands of every cajon enthusiast.
A Real Acoustic Cajon and
Roland Sound Module in One
Thanks to its compact size and versatility, the cajon has become the most popular instrument for on-the-go percussion, from local jams and street busking to nightclub performances and beyond. With its built-in Roland sound module and independent head and edge sensors, the EC-10 extends the cajon’s organic simplicity to open new dimensions of expression for any musical style. Spice up singer/songwriter and combo gigs with layered tambourine or djembe, add backbeats with an acoustic or TR-808 snare, or bring in some low-end thump with an electronic kick. Studio-optimized cajon sounds are also on hand to enhance the acoustic cajon voice for more depth, dimension, and punch.
Easy to Operate While
Performing
The top-mounted sound controls on the EC-10 are designed for quick access and easy operation while playing. Dedicated buttons are used to scroll through sound categories, while neighboring buttons allow you to select a number of variations within a category. After that, just twist the rear-panel Volume knob to control the level of the layered sound, and use the Trigger Balance knob to adjust the balance between the head and edge sounds. You can also tweak the trigger sensitivity for your personal style and touch.
Self-Contained and
Battery-Powered
Part of the cajon’s enormous appeal is that it’s self-contained and uncomplicated. While the EC-10 contains high-tech electronics, it fully maintains the organic, go-anywhere vibe that cajon players love. The integrated amp and coaxial speaker provide high-quality sound for keeping up with acoustic guitar amps and other instruments, and six AA batteries deliver up to 12 hours of power for long jams anywhere. There’s also a handy input for playing music from a smartphone or song player at home or on the gig. And because the EC-10 is a true acoustic instrument, you can always turn off the electronics and play it like any regular cajon. On top of that, it even functions as an extra seat in a music room or family space when you’re not playing!
SPECIFICATIONS
Playing Plate
Sapele Plywood
Resonance Box
MDF (Medium Density Fiberboard)
Speaker
Coaxial 16 cm (6.5 inches)
Rated Power Output
3 W
Nominal Input Level
MIX IN: -10 dBu
Layered Sound Kit Variation
30 (Cajon: 10, Percussion: 10, SFX: 10)
Layered Sound Contents
2 (Head, Edge)
Controls

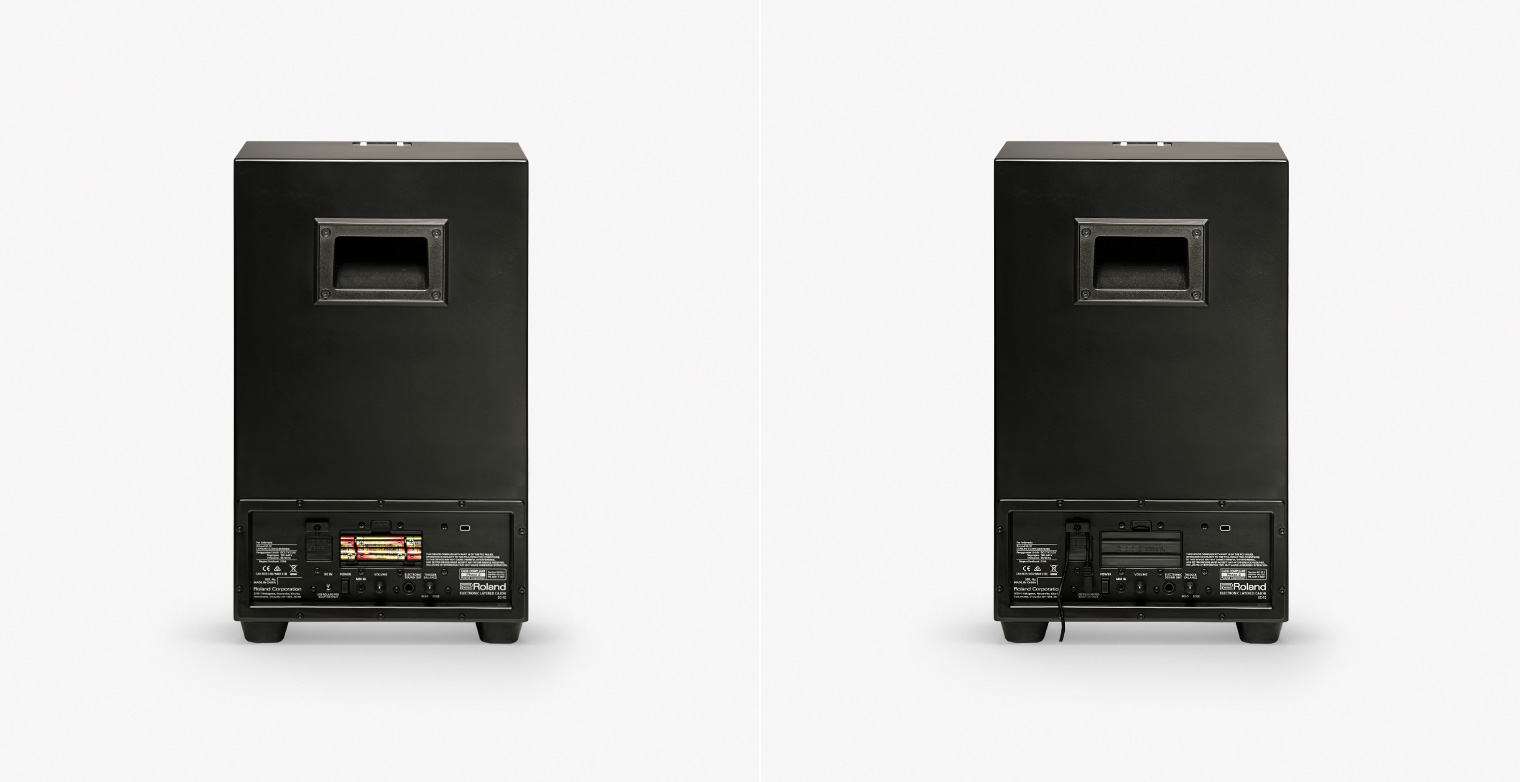

Rear Panel
POWER switch
VOLUME knob
TRIGGER BALANCE knob
Top Panel
Sound Group Select button x2
Kit Number Select button x2
Indicators
Sound Group
Kit Number
Connectors
ELECTRONIC SOUND OUT jack: 1/4-inch phone type
MIX IN jack: Stereo miniature phone type
AC ADAPTOR jack
Power Supply
AC adaptor (DC 5.7 V)
Alkaline battery (AA, LR6) x 6
Current Draw
250 mA
Expected battery life under continuous use
Normal use: Approx. 12 hours
Maximum load use: Approx. 6 hours
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
SIZE AND WEIGHT
Width
295 mm
11-5/8 inches
Depth
298 mm
11-3/4 inches
Height
495 mm
19-1/2 inches
Weight
6.0 kg
8 lbs 14 oz
