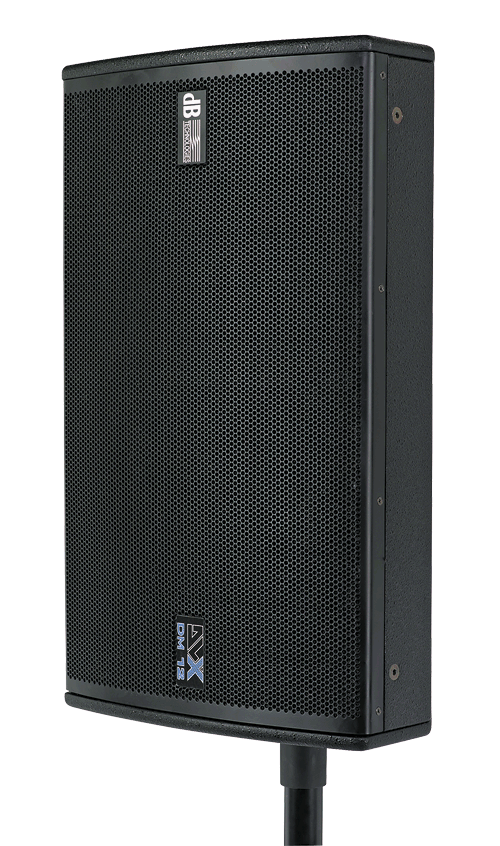

dB Technologies DVX DM12

Rs. 232,471.00 Rs. 220,660.00

Inclusive of all GST
( 0 Reviews )
Add to Cart Add to Wishlist
Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here
Details

Technical Data

Speaker Type

2-Way Active Stage Monitor

Acoustical data

Frequency Response [-10dB]

55 - 20.000 Hz

Frequency Response [+/- 3dB]

68 - 19.000 Hz

Max SPL

131 dB

HF

1.4 "

Type HF

Neodymium Compression Driver

Voice Coil HF

Titanium 2.5 "

Directivity

40x90 °

Horn

CD Horn Aluminium

Rotatable Horn

YES

LF

12 "

Type LF

Neodymium

Voice Coil LF

3 "

Amplifier

Amp Technology

Digipro®

Amp Class

Class D

Power RMS

750 W

Peak Power

1500 W

Cooling

Convection

Processor

Controller

DSP 24 Bit/48 kHz

System Presets

Flat, Monitor

Limiter

RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF

1320 Hz

Slope MF-HF

24 dB/Octave

Mechanics

Housing

Multiplex plywood

Housing Design

Low Profile Multifunctional

Angles Up

35, 55 °

Rigging Points

6x M10 4x Quick-Relase Pins

Width

660 mm (25.9 in)

Height

305 mm (12 in)

Depth

378 mm (14.8 in)

Weight

17.5 kg (55.12 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
