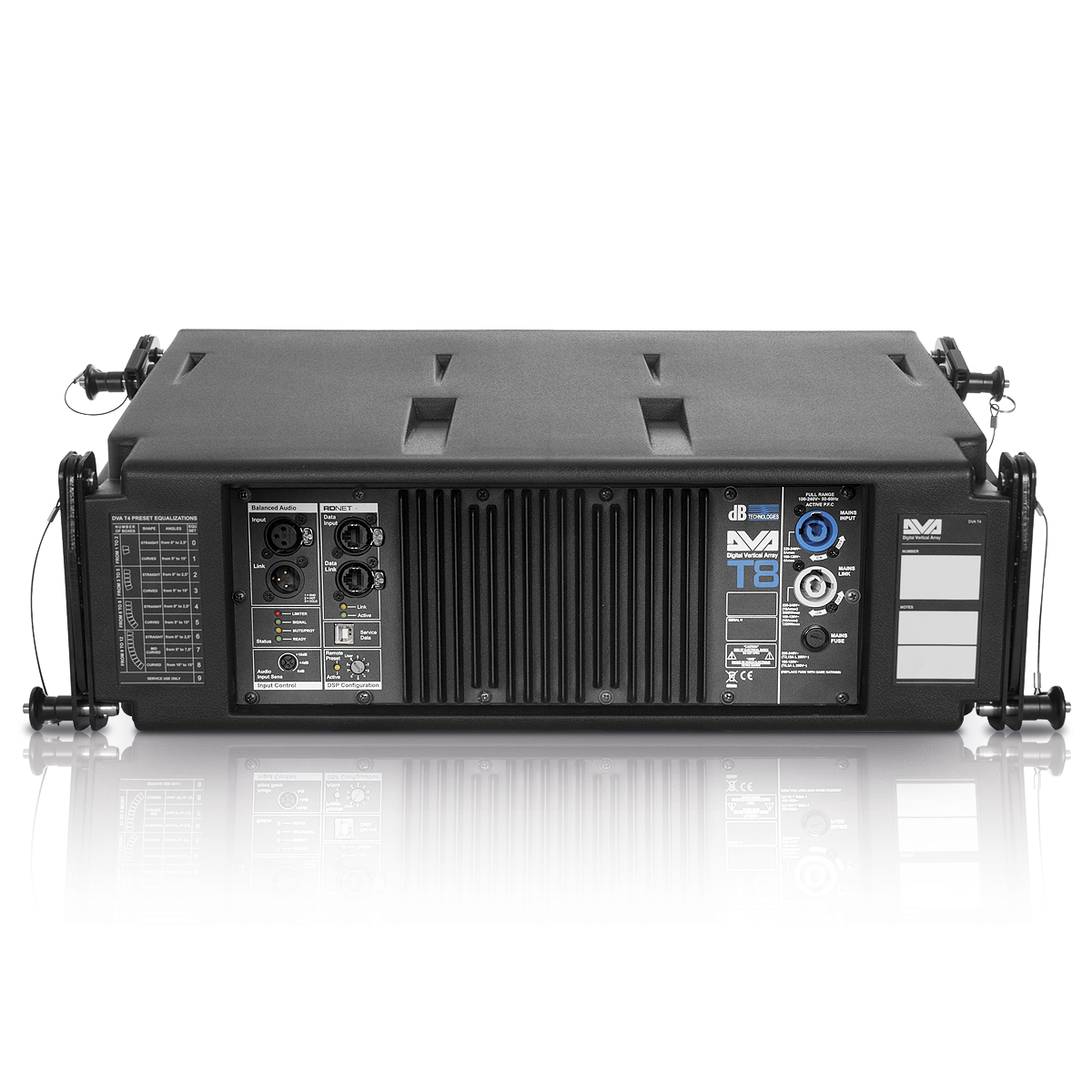

dB Technologies DVA T8

Technical Data

Speaker Type

3-Way Active Line Array Module

Acoustical data

Frequency Response [-6dB]

66 - 18.000 Hz

Max SPL

One Unit: 132 dB

HF

2x1 "

Voice Coil HF

1.4 "

Directivity

100x15 ° Single unit

MF

1x 6.5 "

Voice Coil MF

2 "

LF

8 "

Voice Coil LF

2.5 "

Amplifier

Amp Technology

Digipro® G2

Amp Class

Class D

HF Amp

175 W RMS

MF Amp

175 W RMS

LF Amp

350 W RMS

Cooling

Convection

Processor

Controller

DSP 56 bit with double precision filters

AD/DA Converter

24 bit/96 kHz

System Presets

9, (8xHF and Low-mid correction)

Limiter

Dual Active Limiter
Multiband RMS, Peak, Thermal

Crossover Frequency MF-HF

1900 Hz

Slope MF-HF

24 dB/Octave

Crossover Frequency LF-MF

400 Hz

Slope LF-MF

24 dB/Octave

Input

Signal Input

1x XLR fem, Bal.

Signal Output

1x XLR male, Bal.

Network

RDnet remote control RJ45 connector IN/OUT

Power Socket

1x Powercon In
1x Powercon Out

Voltage Range

90 - 240 V

Mechanics

Housing

Polypropylen PP
Metal reinforced

Housing Design

Trapezoidal 15°

Rain Cover

Included

Rigging Points

Integrated rigging hardware

Width

580 mm (23.2 in)

Height

240 mm (9.6 in)

Depth

327 mm (13.08 in)

Weight

14,2 kg (31.3 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
