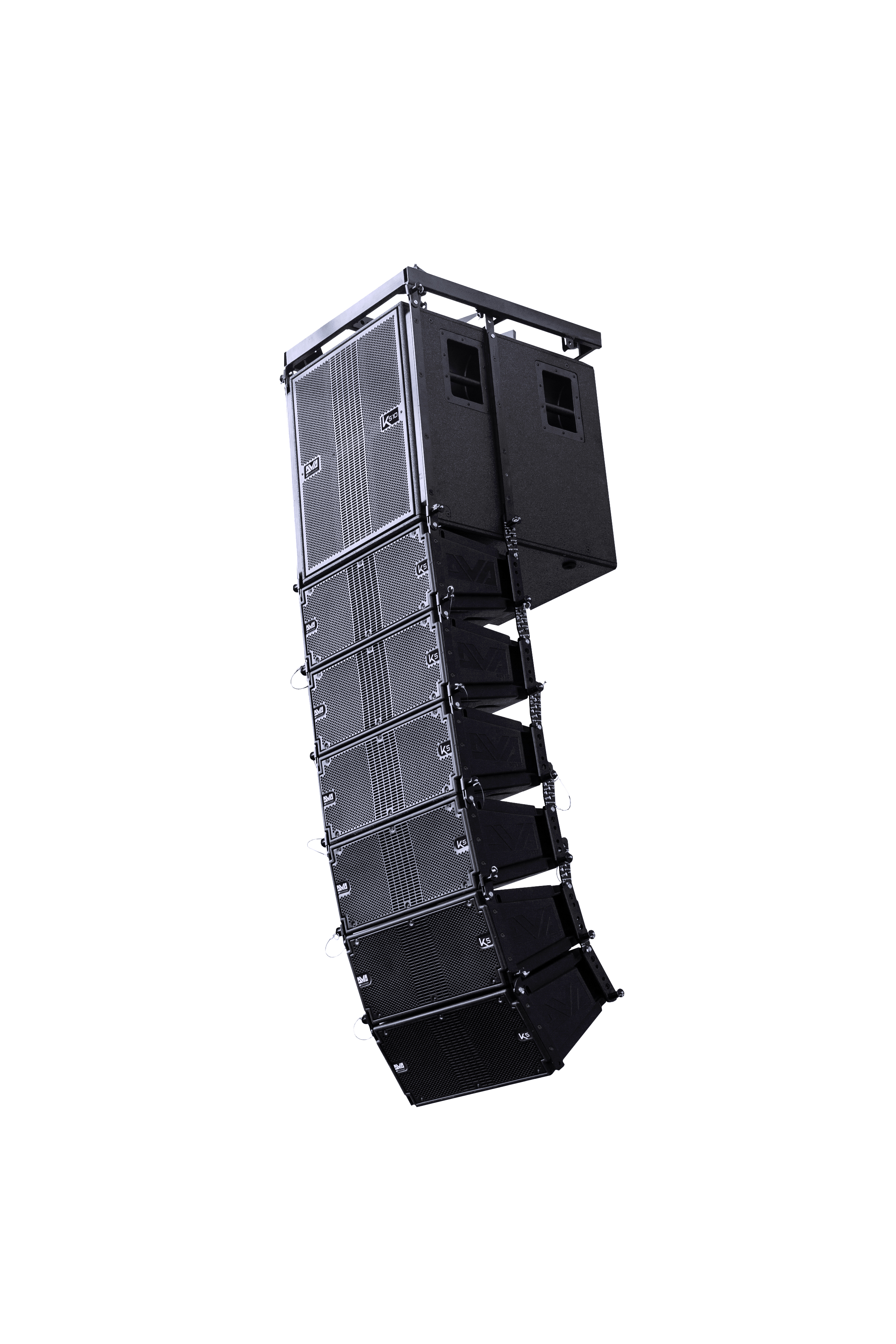

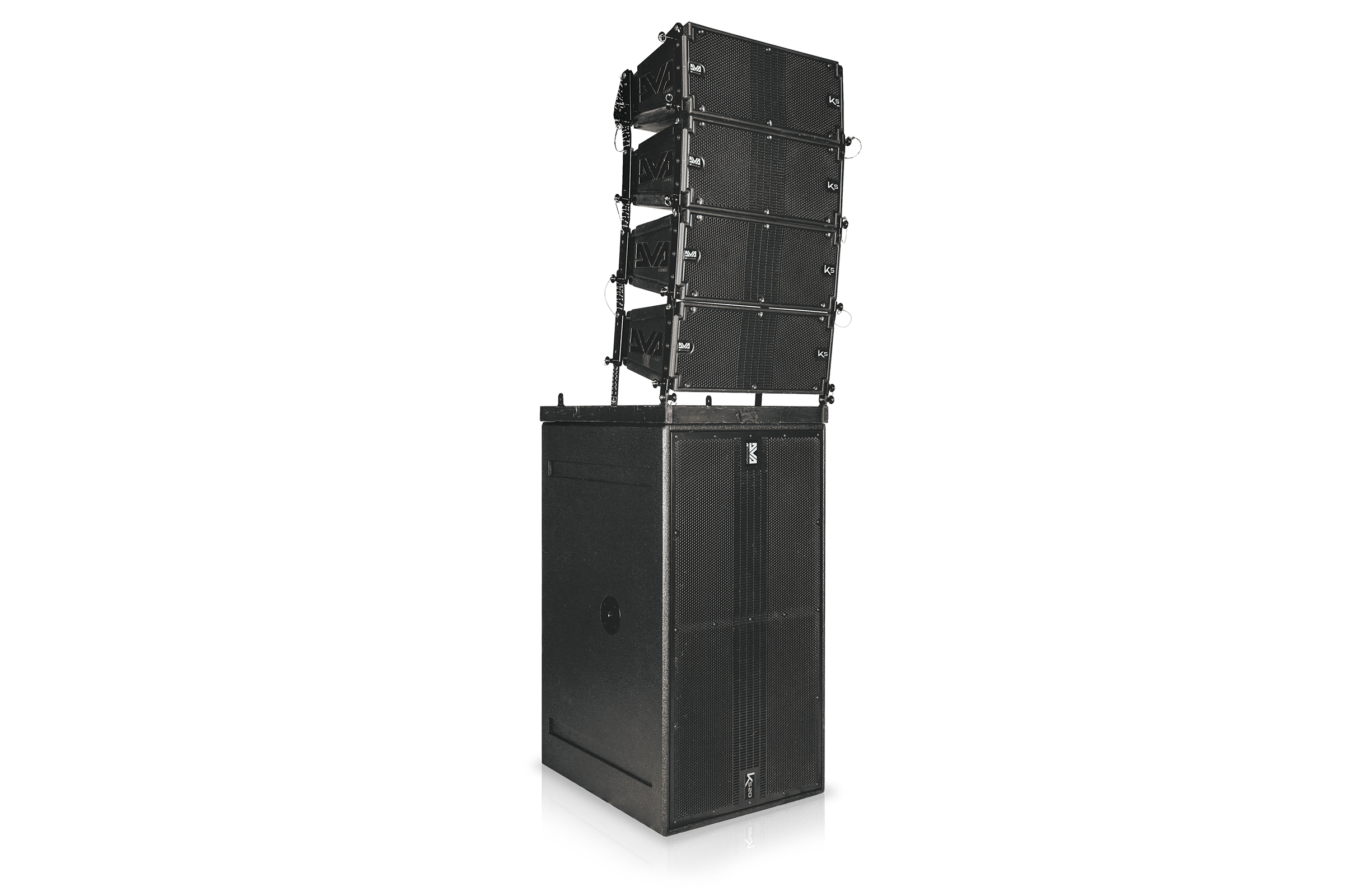

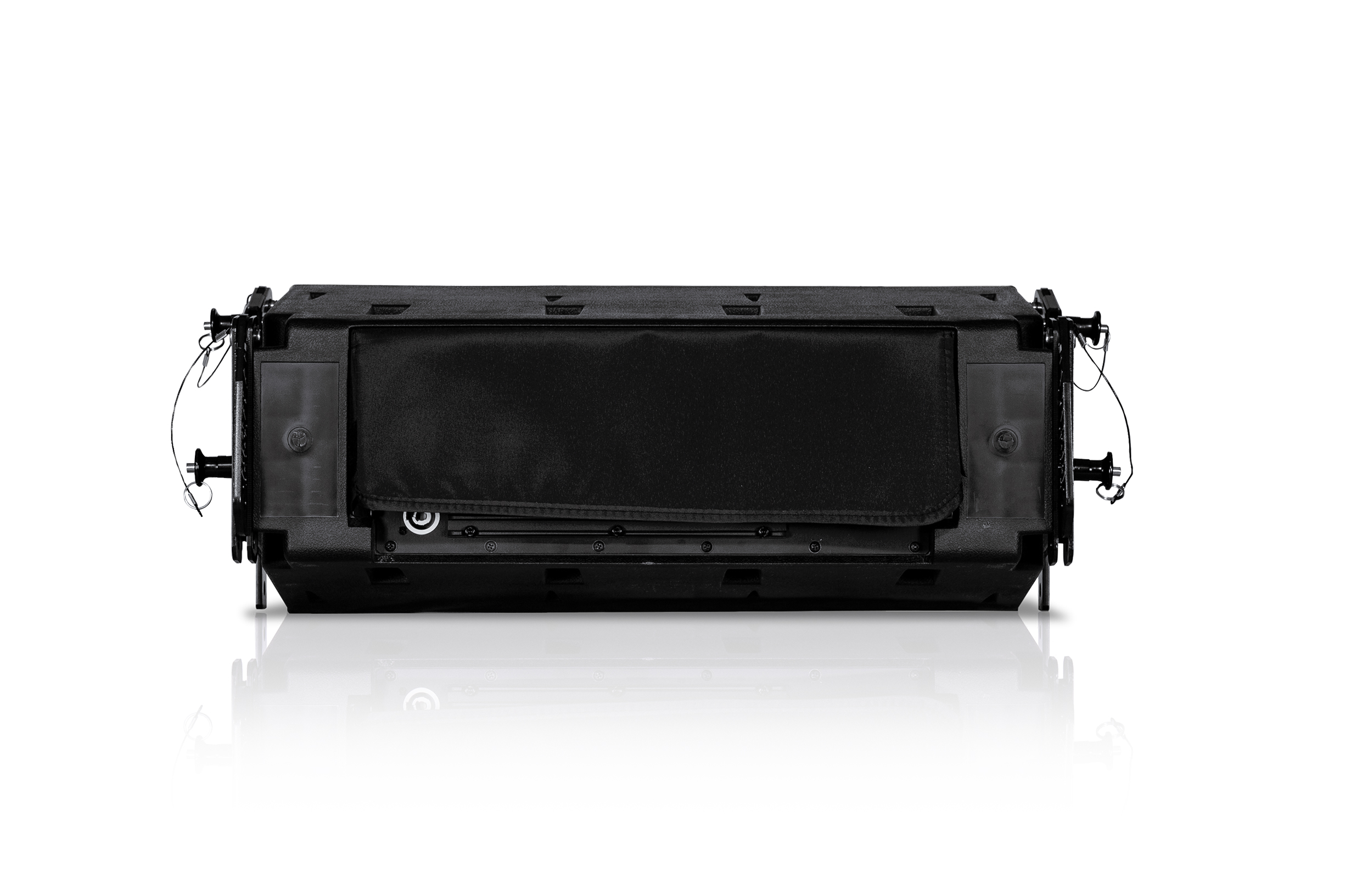

dB Technologies DVA K5
Inclusive of all GST
Technical Data
Speaker Type
3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB]
70 - 19,000 Hz
Max SPL
One Unit: 129 dB
HF
2x1 "
Voice Coil HF
1.4 "
MF
1x 6.5 "
Type MF
Neodymium
Voice Coil MF
2 "
LF
1x8 "
Voice Coil LF
2.5 "
Type LF
Neodymium
Directivity (HxV)
100x15° Single unit
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power
500 W
Peak Power
1000 W
Cooling
Convection
Power Supply
500 W SMPS with Auto Range PSU
Processor
Controller
DSP 56 Bit
AD/DA Converter
24 bit/48 KHz
Limiter
Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF
1800 Hz
Slope MF-HF
24 dB/Octave
Crossover Frequencies LF-MF
340 Hz
Slope LF-MF
24 dB/Octave
Input
Signal Input
1x XLR Balanced
Signal Output
1x XLR Balanced
Power Socket
1x PowerCON In
1x PowerCON Out
Controls
1 x Input Sensitivity Rotary Switch
1 x DSP Rotary Encoder (LF Correction)
1 x DSP Rotary Encoder (MF-HF Correction)
Mechanics
Housing
Polypropylene PP metal reinforced
Rigging Points
Integrated rigging hardware
Width
580 mm (22.83 in)
Height
240 mm (9.44 in)
Depth
327 mm (12.87 in)
Weight
14.2 kg (31.3 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
