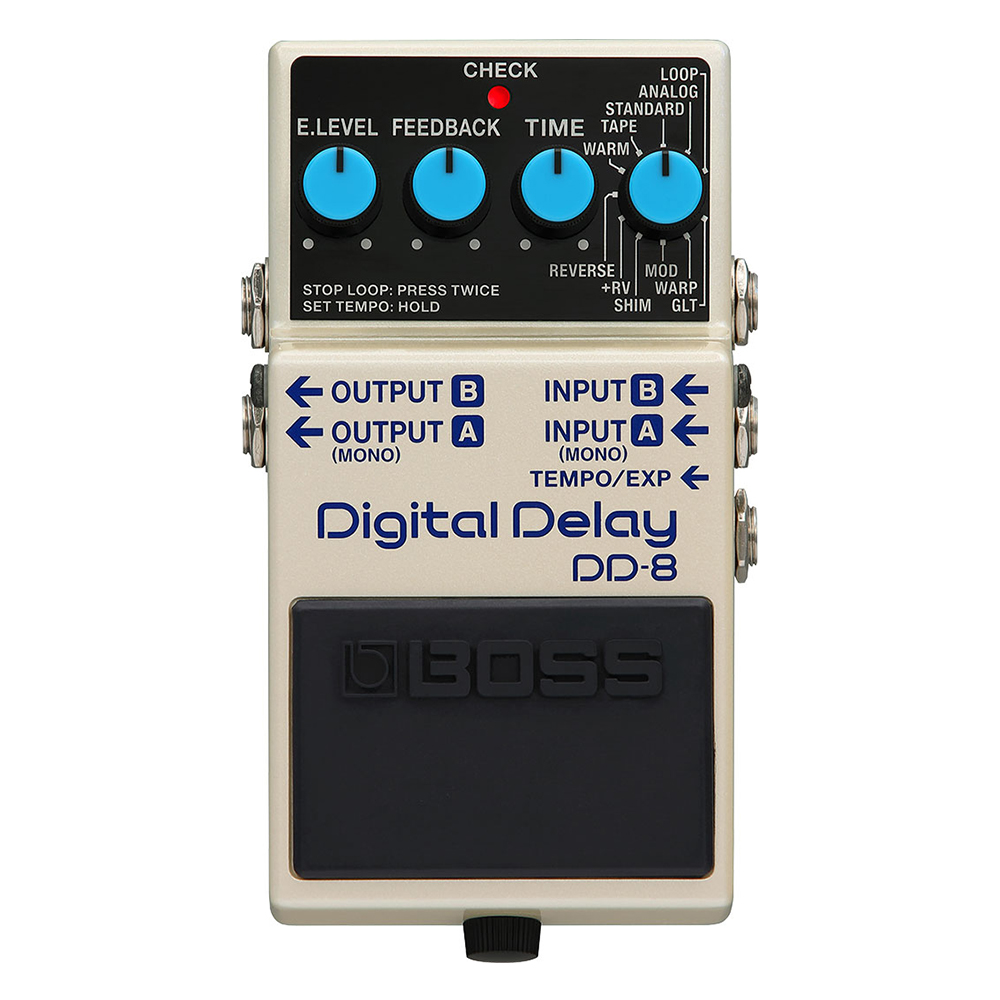

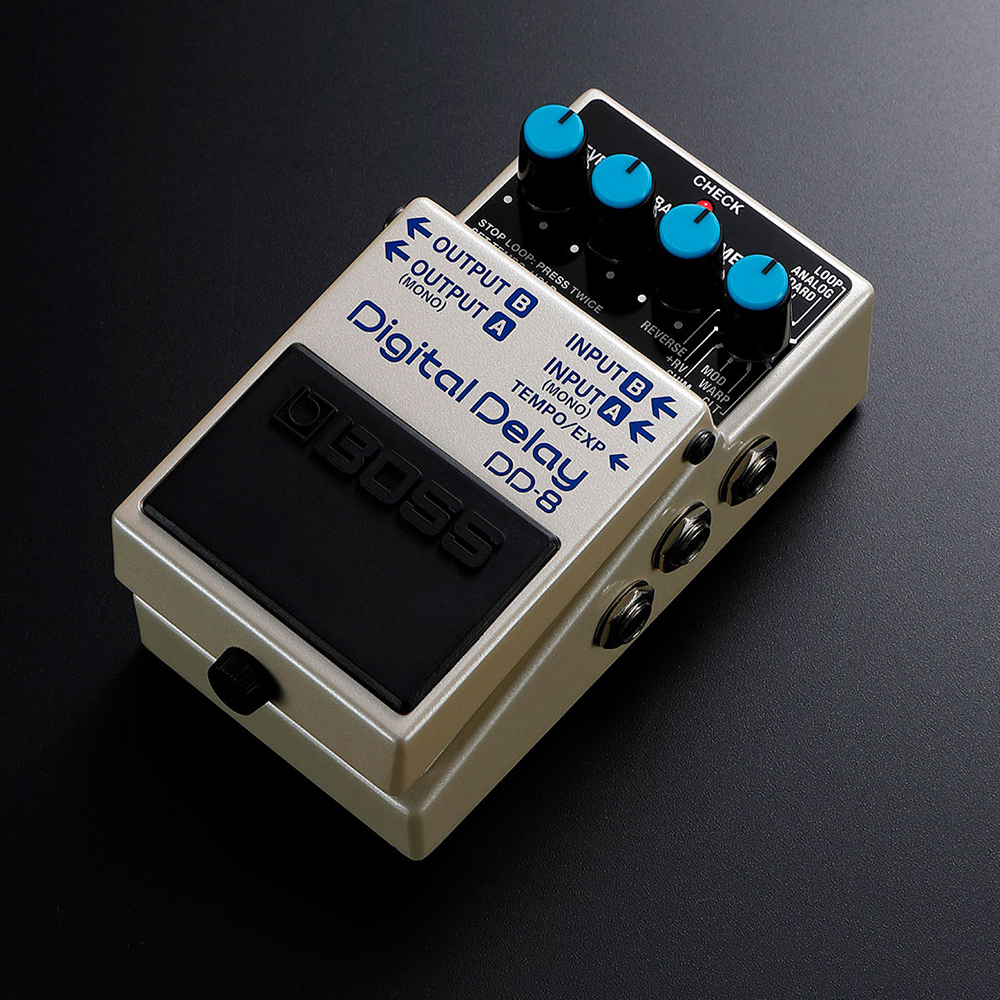

Boss DD 8 Digital Delay

Description

DIVERSE SONIC RANGE, MAXIMUM DELAY POWER

Introducing the DD-8, the most wide-ranging and feature-rich BOSS compact series delay ever. This loaded pedal delivers more of everything—more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup. Eleven modes provide delay colors from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there’s no better delay stomp than the DD-8

SPECIFICATIONS

Nominal Input Level                            -20 dBu

Input Impedance                                1 M ohm

Nominal Output Level                         -20 dBu

Output Impedance                             1 k ohm

Recommended Load Impedance         10 k ohms or greater

Bypass                                              Buffered bypass

Controls                                            MODE knob

                                                         TIME knob

                                                         FEEDBACK knob

                                                         E.LEVEL(Effect Level) knob

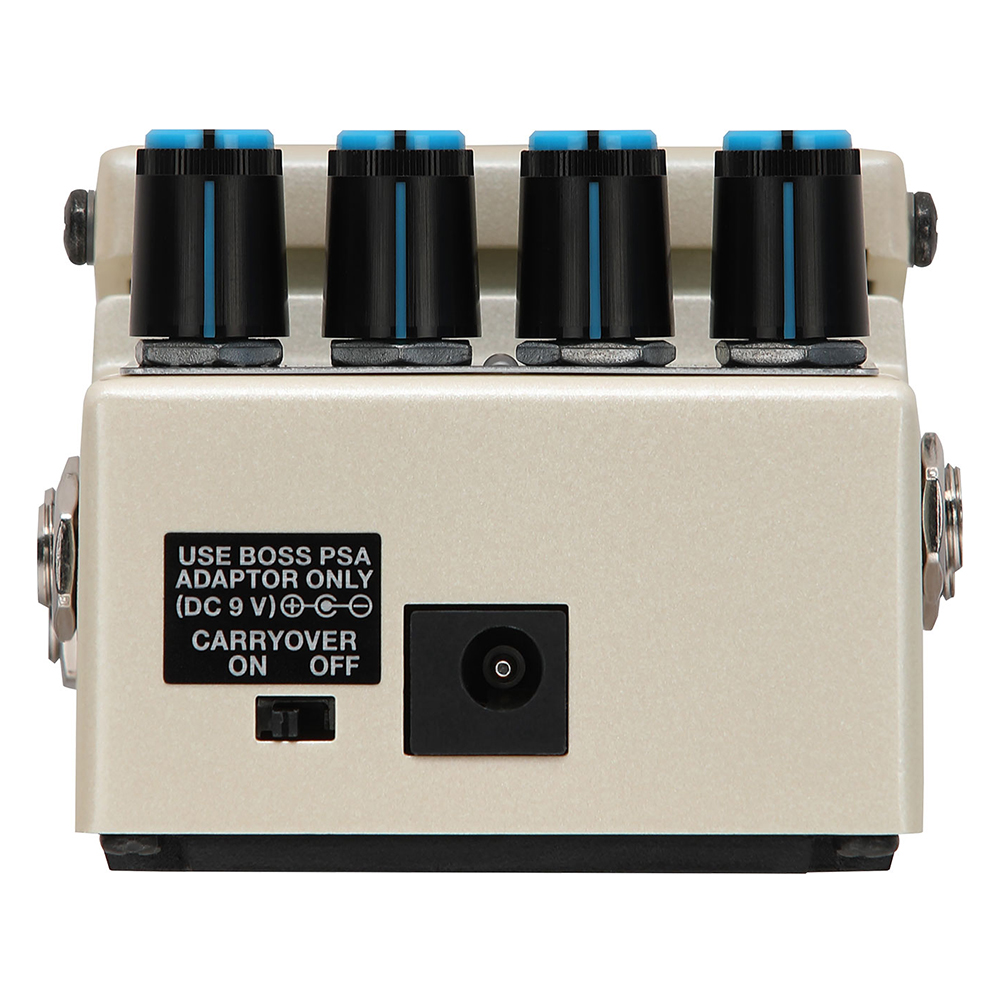

                                                         CARRYOVER switch

                                                         Pedal switch

Indicator                                           CHECK indicator (Used for indication of check battery)

Connectors                                      INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type

                                                        OUTPUT-A(MONO)/OUTPUT-B jack 1/4-inch phone type

                                                        TEMPO/EXP jack TRS 1/4-inch phone type

DC IN jack

Power Supply                                     Alkaline battery (9 V, 6LR61)

AC adaptor                                        (PSA series: sold separately)

Current Draw                                      65 mA

SIZE AND WEIGHT

Width                                                 73 mm (2-7/8 inches)

Depth                                                129 mm (5-1/8 inches)

Height                                               59 mm (2-3/8 inches)

Weight (including battery)                 440 g

1 lb* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
