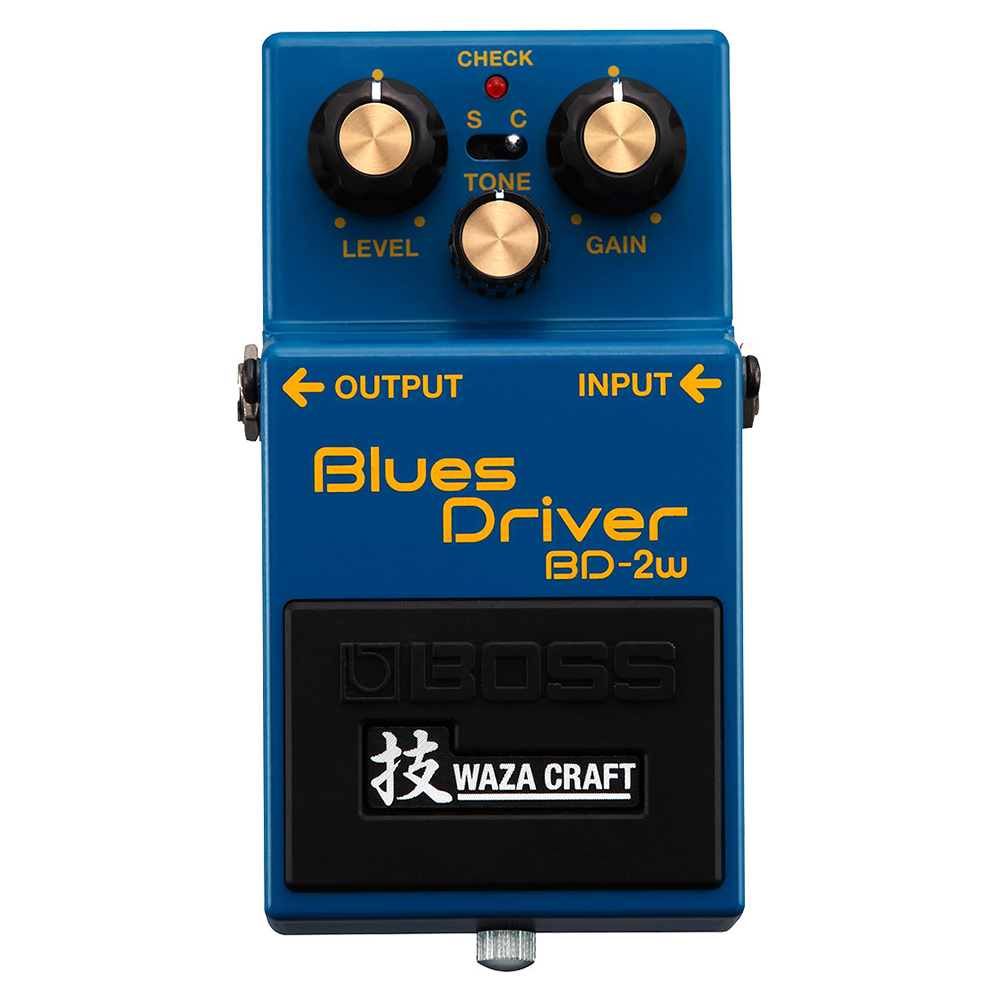

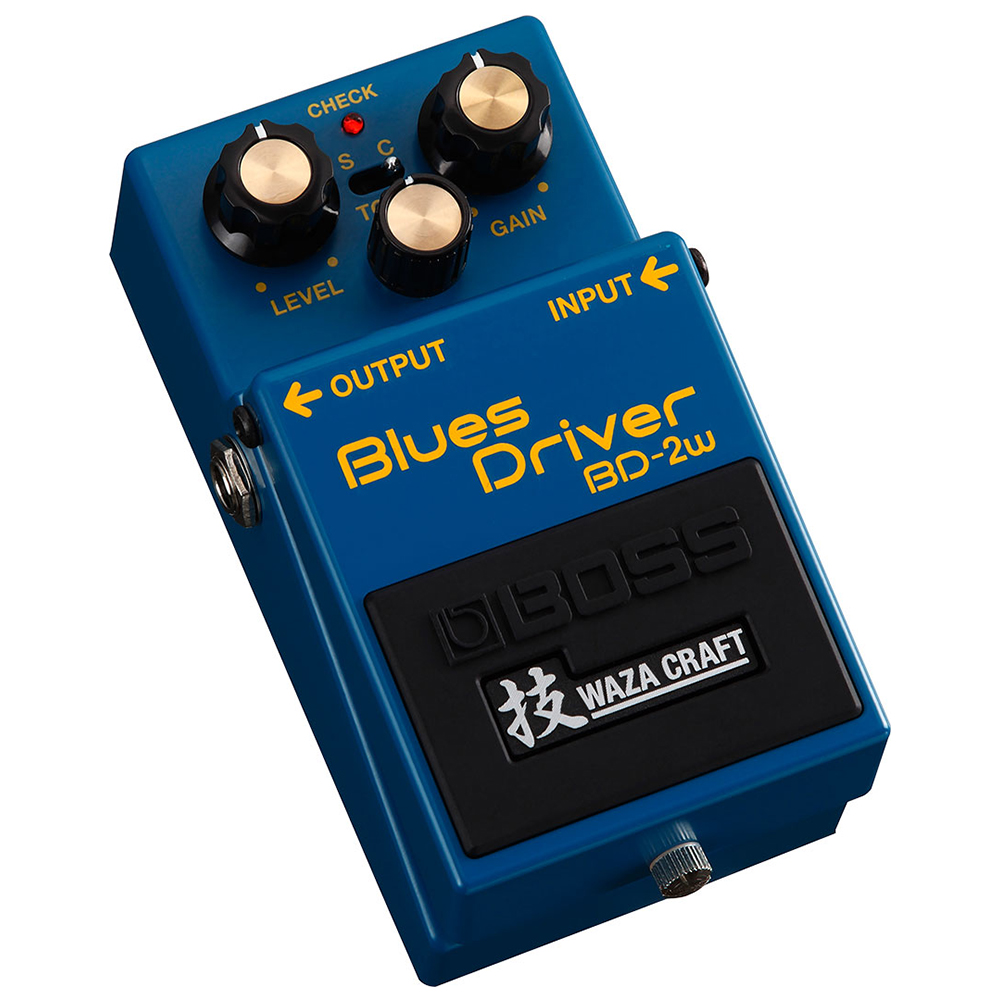

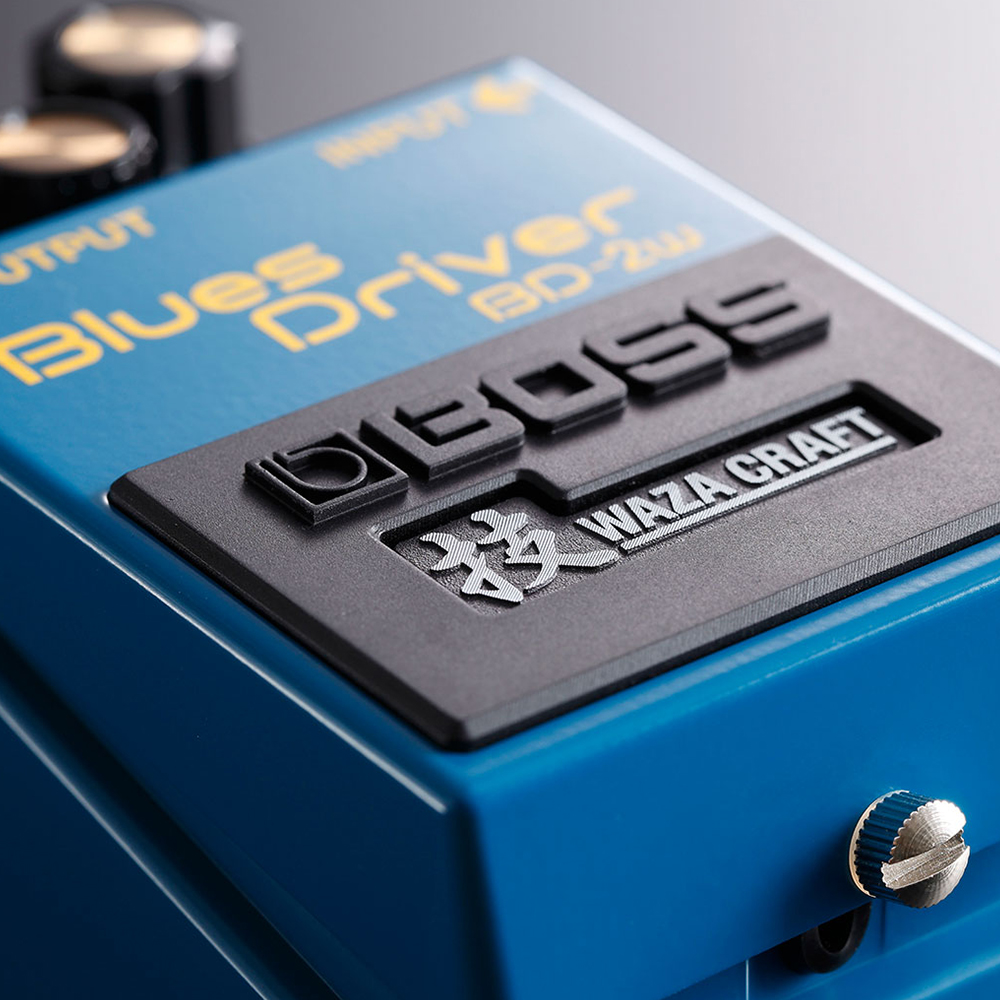

BD-2W Blues Driver Pedal (WAZA CRAFT)

Description

RESPONSIVENESS OUTSHINED WITH A MODERNIZED VINTAGE VIBE

Passionately designed by the master engineers at BOSS in Japan, the Waza Craft BD-2W delivers a premium stomp experience that fans of customized pedal tone will love. Crafted with an ear for highly refined sound, the BD-2W takes the classic Blues Driver grit to a new level with all-discrete analog circuitry. Standard mode captures the classic BD-2 tone while Custom mode delivers new body and sustain.

SPECIFICATIONS

Nominal Input Level                            -20 dBu

Input Impedance                                1 M ohm

Nominal Output Level                         -20 dBu

Output Impedance                             1 k ohm

Recommended Load Impedance         10 k ohms or greater

Controls                                            Pedal switch

Mode switch

LEVEL knob

TONE knob

GAIN knob

Indicator                                            CHECK indicator (Serves also as battery check indicator)

Connectors                                        INPUT jack

OUTPUT jack

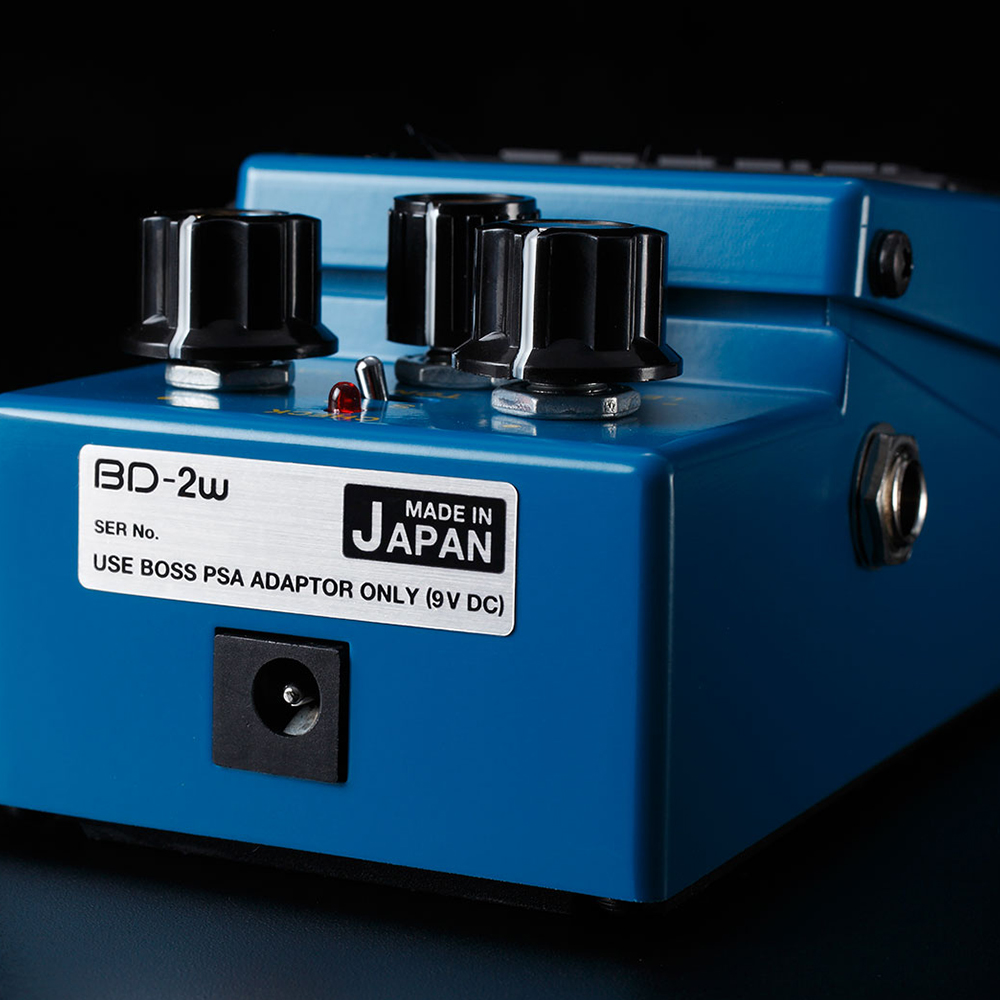

DC IN jack

Power Supply                                     Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)

AC adaptor                                        (sold separately)

Current Draw                                     15 mA

SIZE AND WEIGHT

Width                                                 73 mm

                                                          2-7/8 inches

Depth                                                129 mm

                                                          5-1/8 inches

Height                                               59 mm

                                                          2-3/8 inches

Weight                                               430 g

0 lbs. 16 oz.* 0 dBu = 0.775 Vrms
