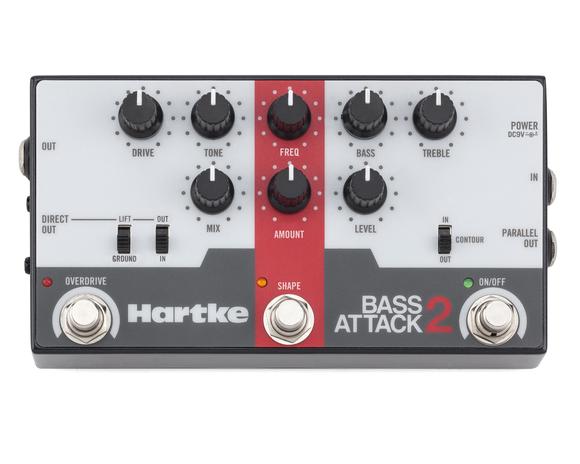

Bass Attack 2 - Bass Preamp/Direct Box with Overdrive
Inclusive of all GST
- Bass preamp and direct box with overdrive
- Shape EQ circuit with Frequency and Amount control
- Bass and Treble knobs with Contour EQ switch
- Overdrive effect with Mix wet/dry control

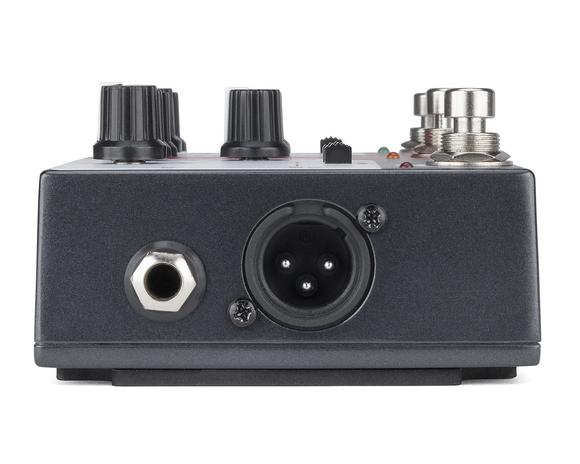

- XLR direct output with Pre/Post and Ground Lift switches

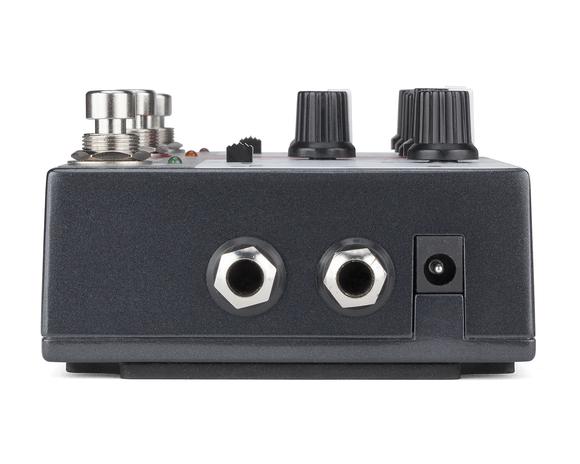

- 1/4" parallel and effect outputs
- Powered via two AA batteries, AC adapter (sold separately) or phantom power
- Rugged, zinc die cast stompbox-style design
Specifications
- Input Impedance: 1 Meg Ohm
- Output Impedance OUT: Unbalanced 1k Ohm
- Direct Out: Balanced 400 Ohm
- Parallel Out: same as Input Source
- Level: +6dB to –24dB
- Tone Controls Bass: +/- 15dB, 30 Hz
- Treble: +/- 18dB, 20kHz
- Contour {Switch}: Fixed Mid Scoop Curve
- Shape Frequency: 200Hz to 800Hz
- Amount: +15/-25dB
- Direct Output IN/OUT {Switch} IN: Parallel Input jack, OUT: Parallel Output jack
- LIFT/GROUND {Switch}: Isolates the Input and Direct Output signal grounds
- Power {in jack}: 9VDC center negative
- Batteries: 2x AA – internal up-converter to generate 9v
