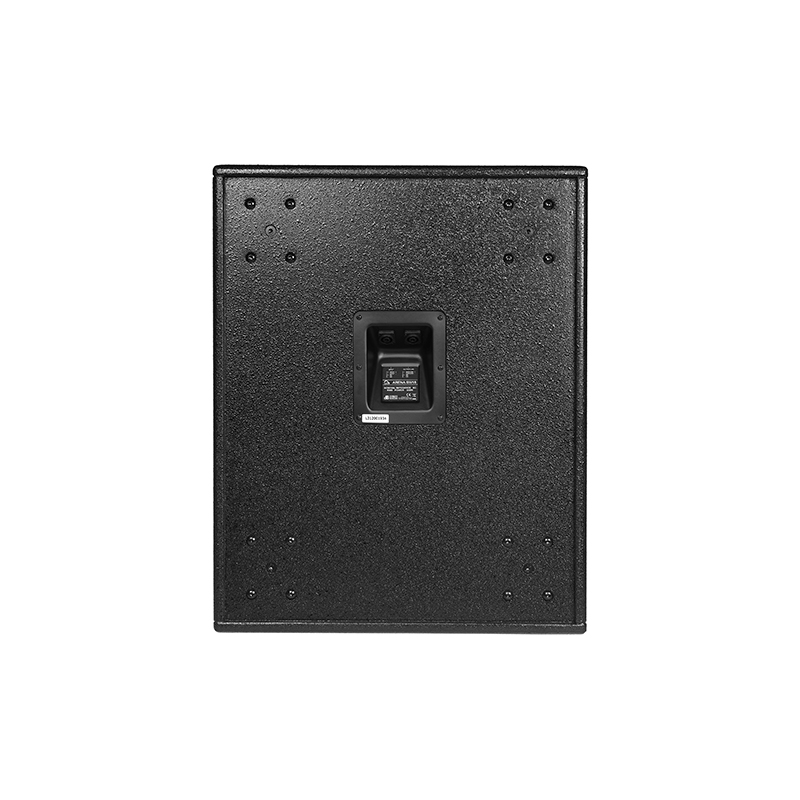

dB Technologies Passive Subwoofer ARENA SW18
Rs. 132,348.00
Rs. 125,670.00
Inclusive of all GST
Inclusive of all GST
Details
Technical Data
Speaker Type
Passive Subwoofer
Acoustical data
Nominal Power Rating
600 W/RMS
Program Power Rating
1200 W
Impedance
8 Ohms
Frequency Response [+/- 3dB]
35 - 150 Hz
Max SPL
132 dB
LF
18 “
Voice Coil LF
4 “
Internal Crossover
YES
Crossover Frequency (passive)
150 Hz
Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing
Multiplex plywood
Width
565 mm (22.6 in)
Height
700 mm (28 in)
Depth
700 mm (28 in)
Weight
44 kg (97 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
