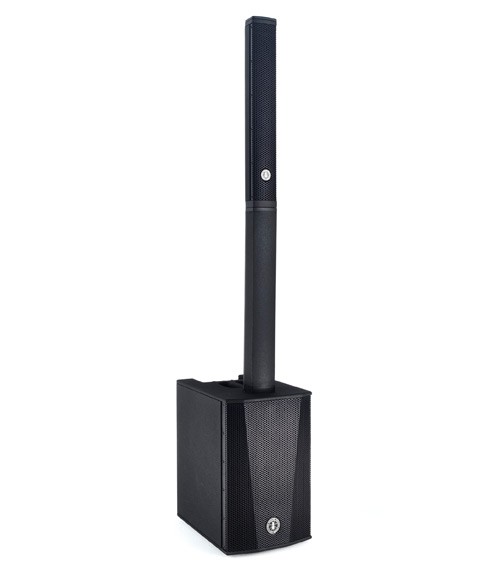

ANT B-TWIG 12 2000 W ACTIVE COLUMN PA SYSTEM
Inclusive of all GST
-
System type Active column system
-
Subwoofer (B-TWIG 8S)1 x 12” Custom ferrite speaker - 2.5” VC
-
Array speaker (B-TWIG 8CS)8 x 2.75” Custom neodymium speakers - 0.75” VC
-
Average dispersionHorizontal 120°
-
Frequency response 45Hz - 20kHz
-
Max SPL123 dB
-
Peak Power2000 W
-
Crossover 24dB/Oct @ 200Hz
-

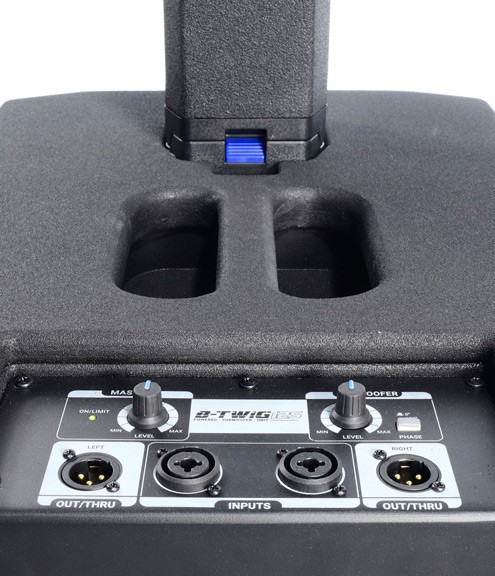

I/O connectorsLINE IN: 2 x Combo XLR-F + Jack 6,35mm (1/4”)
OUT/THRU: 2 x XLR-M -
ControlsMaster Level, Subwoofer Level, Phase 0°/180°
-
Housing 12mm plywood
-
Dimensions B-Twig 12S (W x H x D)370 x 603 x 505 mm
-
Weight B-Twig 8S19 kg
-
Dimensions B-Twig 12CS (W x H x D)105 x 707 x 100 mm
-
Weight B-Twig 8CS4,6 kg
